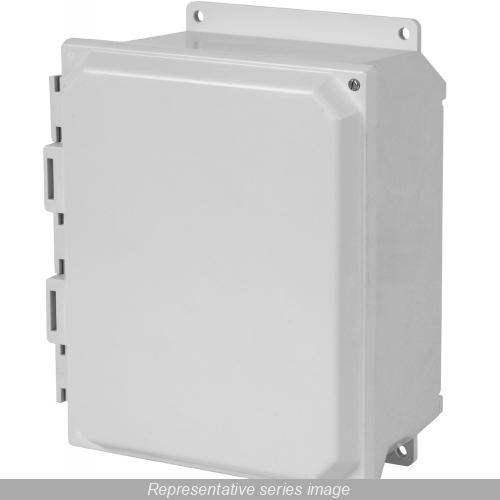

Hammond® PJU864HF Junction Box With Flange, 8.05 in H x 6.27 in W x 4.13 in D, Hinged Screw Cover, NEMA 1/2/3/3R/4/4X/12/13/IP66 NEMA Rating, Fiberglass Polyester
Sku #62398002028
MFG #PJU864HF
Attributes
| Series: | PJU |
| Width: | 6.27 in |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Height: | 8.05 in |
| Depth: | 4.13 in |
| Cover Type: | Hinged Screw |
- Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings, Electrical Junction Boxes/Terminal Wiring Enclosures
- CSA Certified|CE Marked|IEC 60529|UL 508A|RoHS Compliant
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Cover fastened with captive stainless steel screws in threaded brass inserts
- Molded hinge with stainless steel pin
- Captive oil resistant gasket provides a positive seal
- Impact index of 5 ft/lb
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
- Mounting Hardware
- 1 Year
