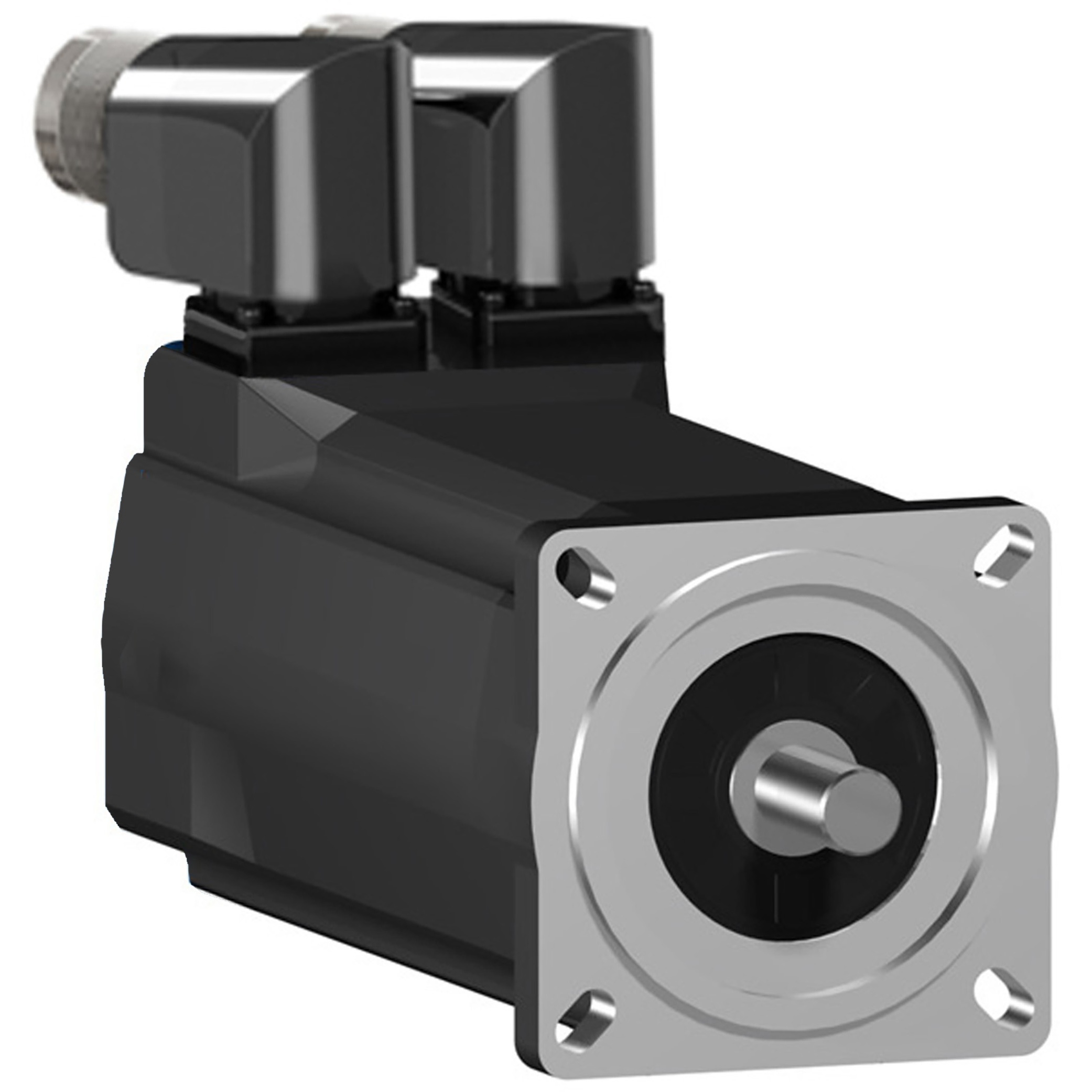

Schneider Electric SH30701P12F2200 3-Poles Parallel Key, 115 to 480 V, 5.7 A, 1500,3000,6000,7200 rpm speed, Flange mount
Sku #60648991759
MFG #SH30701P12F2200
Attributes
| Type: | 3-Poles Parallel Key |
| Voltage Rating: | 115 to 480 V |
| Speed: | 1500,3000,6000,7200 rpm |
| Special Features: | 128 Periods |
| Amperage Rating: | 5.7 A |
| Enclosure Type: | IP65/IP67 |
- Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp)
- Overload capacity: high peak current (up to 4 times the continuous current)
- Increases the range of movement
- Power density: the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the servo motor has to be braked frequently
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- With holding brake
- 220 W 115 V three phase440 W 230 V three phase820 W 400 V three phase950 W 480 V three phase nominal output power
- 0.16 in (4 mm) key width
- Absolute multiturn SinCos Hiperface encoder type
- 2.76 in (70 mm) motor flange size
- 46 V/krpm 68 deg F (20 deg C) back emf constant
- 0.322 kg.cm2 rotor inertia
- 10.4 Ohm stator resistance
- 60.25 mH stator inductance
- 660 N 1000 rpm, 520 N 2000 rpm, 460 N 3000 rpm, 410 N 4000 rpm, 380 N 5000 rpm, 360 N 6000 rpm maximum radial force fr
- 80 N maximum axial force fa
- 2.36 in (60 mm) centring collar diameter
