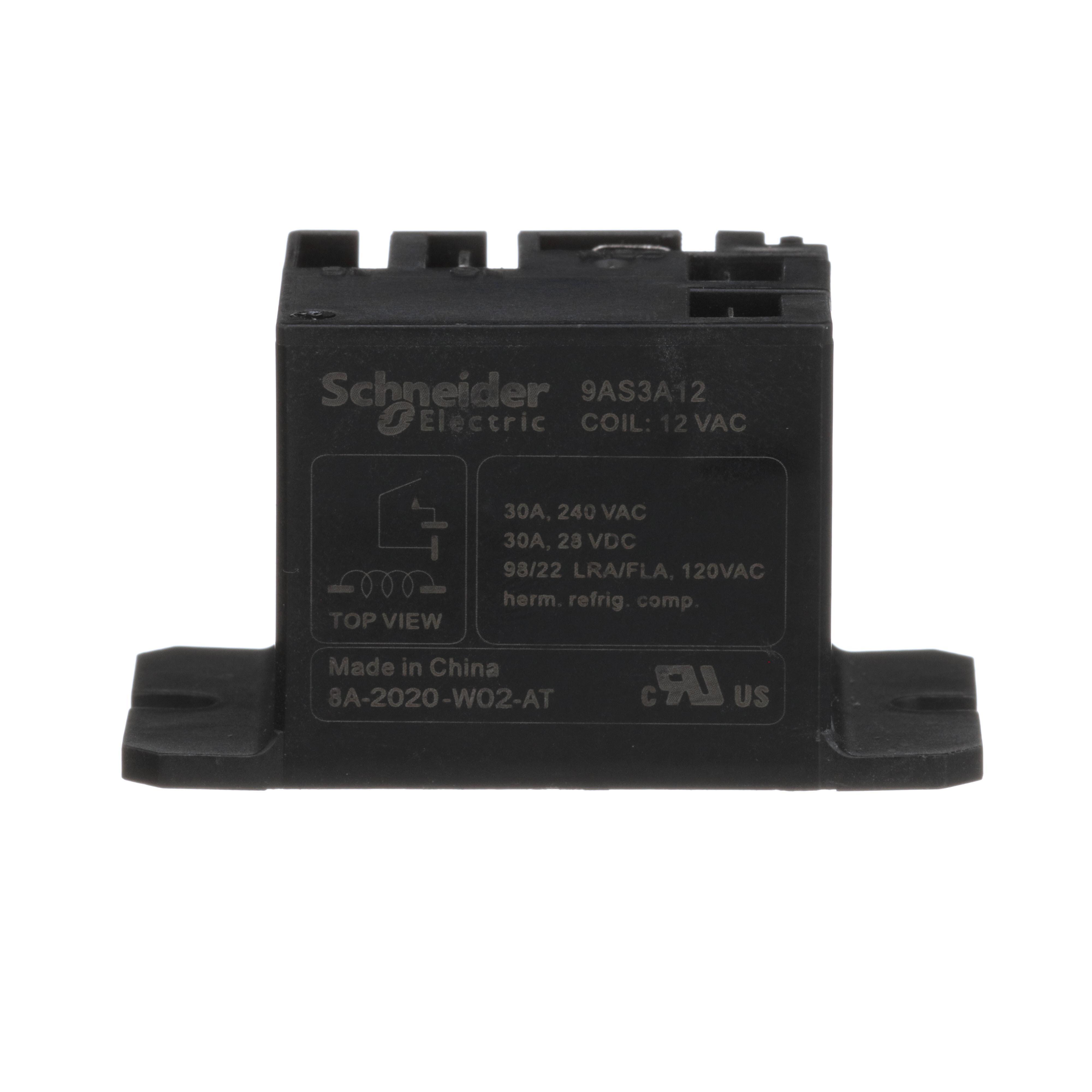

Schneider Electric 9AS3A12 Harmony Series Power Relay, 30 A, 1NO 1 Form A SPST contact, 12 V AC v coil
Sku #60648991523
MFG #9AS3A12
Attributes
| Type: | Power Relay |
| Amperage Rating: | 30 A |
| Coil Voltage: | 12 V AC |
| Series: | Harmony Series |
| Frequency Rating: | 50 to 60 Hz |
| Contact Form: | 1NO 1 Form A SPST |
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 30 A load current
- Any position operating position
- 470 VA at 240 V on pilot duty rated power in va
- 1 hp at 125 V AC2 hp at 250 V AC rated power in hp
- 5 W at 1 A, 5 V DC12 VA at 1 A, 12 V AC minimum switching capacity
- 25 Ohm at 73 deg F (23 deg C) +/- 10 % average resistance
- >= 0.2 Uc drop-out voltage threshold
- 2.6 VA average consumption
- 4 kV 1.2/50 s rated impulse withstand voltage
- 10000000 cycles mechanical durability
- 20 ms operate time
- 10 ms release time
