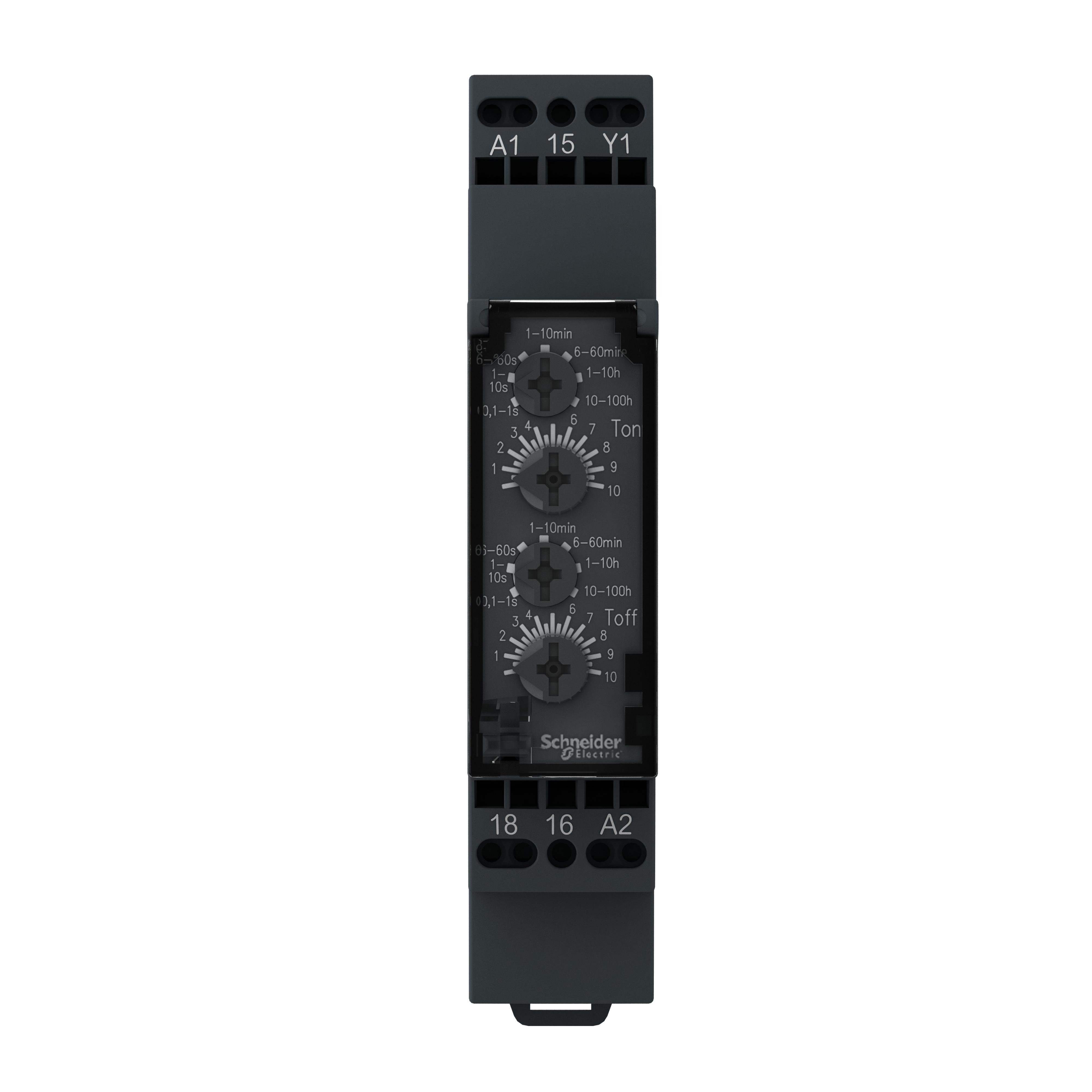

Schneider Electric RE17RLMUS Dual Function Relay, 250 VAC
Sku #60648986162
MFG #RE17RLMUS
Attributes
| Type: | Dual Function Relay |
| Amperage Rating: | 8 A |
| Temperature Rating: | -4 to 140 deg F |
| Voltage Rating: | 250 V AC |
| Enclosure Type: | IP20/IP40/IP50 |
| Dimensions: | 3.54 in H x 0.69 in W x 2.83 in D |
- For m-factors, allowing for a flexible and easy installation on DIN rail using the same space as any , For applications like lighting control, access control door locks, and roller shutters of Buildings, and, For simple and precise settings, For adjusting
- Reduced panel space - smaller units require less installed space
- Installation flexibility - units can be DIN rail or panel-mounted
- Tamper resistant - These units feature a sealable cover
- Increased functionality - Timers with single functions and a choice of electromechanical or solid state functionality
- L, Li time delay type
- 1 to 10 h1 to 10 s0.1 to 1 s6 to 60 min1 to 10 min10 to 100 h6 to 60 s time delay range
- Cadmium free contacts material
- 10 V release of input voltage
- Self-extinguishing housing material
- +/- 05 %/ deg C temperature drift
- +/- 0.2 %/V voltage drift
- +/- 10 % of full scale 25 deg C IEC 61812-1 setting accuracy of time delay
- 100 ms with load in parallel typical30 ms typical control signal pulse width
- 120 ms on de-energisation typical reset time
- 100 % on-load factor
- 10 Hz operating frequency
- 10000000 cycles mechanical durability
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1 dielectric strength
- 5 kV 1.2/50 s uimp rated impulse withstand voltage
- CSA|CULusDNV-GLEACCCC|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|2006/95/EC2004/108/ECIEC 61812-1EN 61000-6-3EN 61000-6-1EN 61000-6-4EN 61000-6-2
