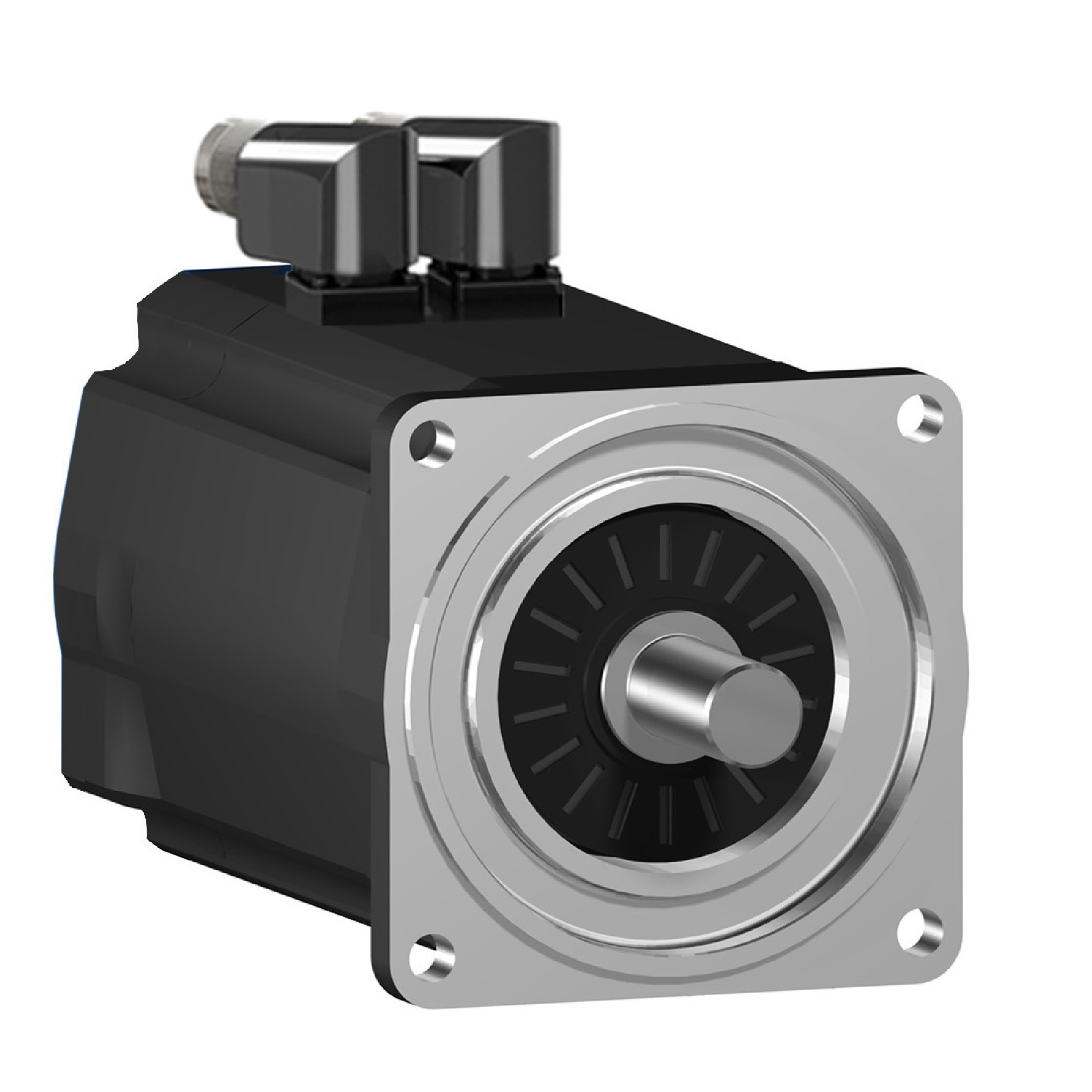

Schneider Electric SH31402P12A2200 5-Poles Parallel Key, 115 to 480 V, 44.1 A, 750,1500,3000,3600 rpm speed, Flange mount
Sku #60648960653
MFG #SH31402P12A2200
Attributes
| Type: | 5-Poles Parallel Key |
| Voltage Rating: | 115 to 480 V |
| Speed: | 750,1500,3000,3600 rpm |
| Special Features: | 128 Periods |
| Amperage Rating: | 44.1 A |
| Enclosure Type: | IP65/IP67 |
- Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp)
- Overload capacity: high peak current (up to 4 times the continuous current)
- Increases the range of movement
- Power density: the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the servo motor has to be braked frequently
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Without holding brake
- 1460 W 115 V three phase2690 W 230 V three phase3860 W 400 V three phase3660 W 480 V three phase nominal output power
- 0.31 in (8 mm) key width
- Absolute multiturn SinCos Hiperface encoder type
- 5.51 in (140 mm) motor flange size
- 101 V/krpm 68 deg F (20 deg C) back emf constant
- 12.68 kg.cm2 rotor inertia
- 0.6 Ohm stator resistance
- 11.225 mH stator inductance
- 2240 N 1000 rpm, 1780 N 2000 rpm, 1550 N 3000 rpm maximum radial force fr
- 300 N maximum axial force fa
- 5.12 in (130 mm) centring collar diameter
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
