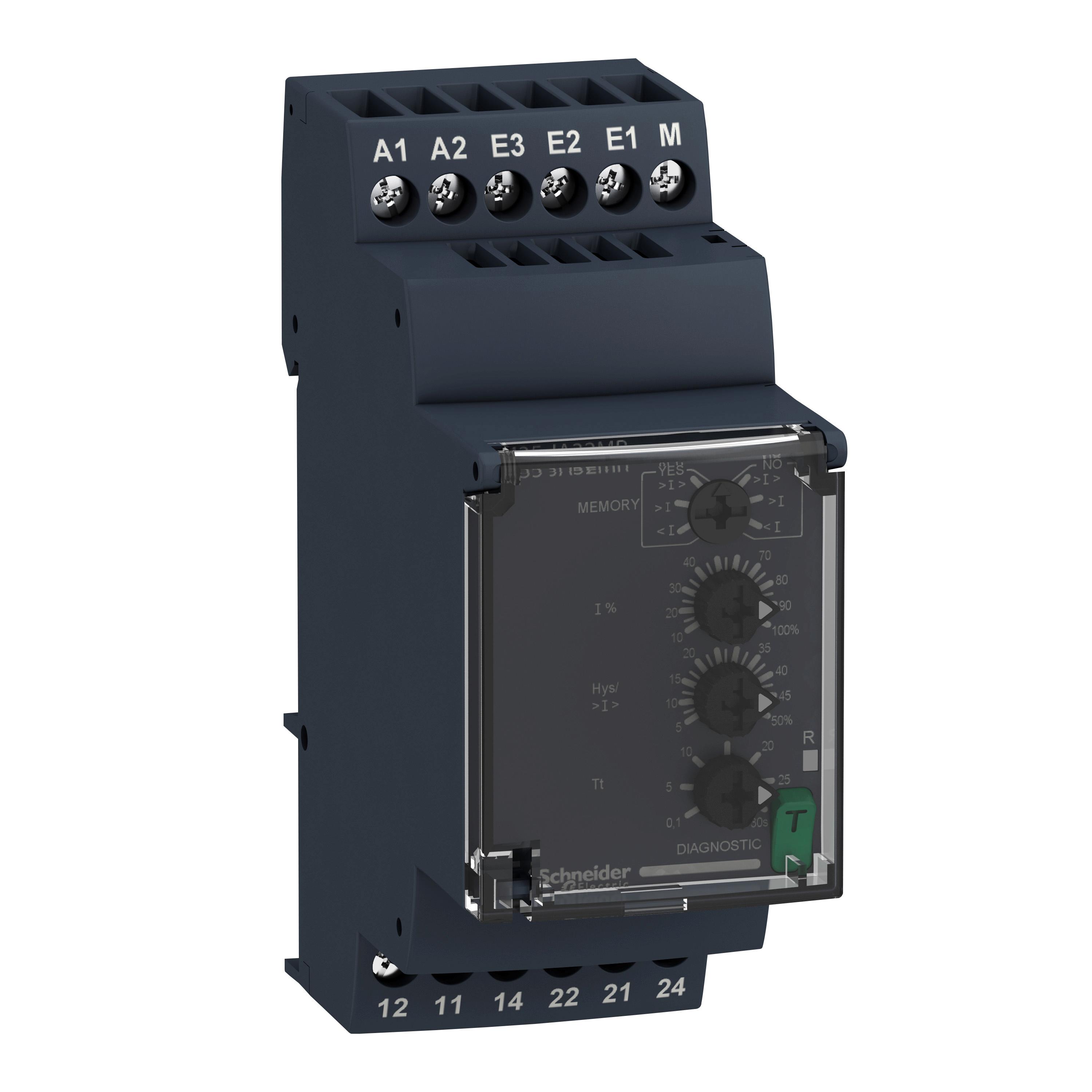

Schneider Electric RM35JA32MRSP01 RM35 Modular Measurement Current Control Relay, 8 A, 2CO 2 Form C Contact, 24 to 240 V AC/DC V Coil
Sku #60648947943
MFG #RM35JA32MRSP01
Attributes
| Type: | Modular Measurement |
| Amperage Rating: | 8 A |
| Frequency Rating: | 50 to 60 Hz |
| Series: | RM35 |
| Power Rating: | 1.5 W |
| Coil Voltage: | 24 to 240 V AC/DC |
- One product reference covering 7 monitoring functions, phase loss, phase sequence, asymmetry, overvoltage, undervoltage, over frequency and under frequency
- Monitoring parameters can be set precisely to the desired value without the need for a screwdriver and complex calculations
- Time delay can be set precisely up to minutes, seconds or milliseconds
- Simulator available to check logic validity in settings
- Auto-configure to teach the product to propose settings with real-time 3-phase network connections
- Clone settings to multiple NFC Control Relays easily with a simple click
- Settings can be shared via multiple channels and loaded directly to another NFC Control Relay
- Front LEDs to indicate the exact fault status
- Real-time monitoring of a relay status
- Records a maximum of 20 faults through event logging
- Wide monitoring parameters (phase, current, voltage, liquid level, frequency, speed, temperature, and pump control) to meet your application needs
- True root mean square (RMS) measurement that minimizes the possibility of unexpected trips from highly polluted networks
- Diagnostic button that helps you check the downstream circuit immediately without sending a fault input signal to the relays
- Experience simplified product selection, unprecedented accuracy, predictive maintenance, and superior security with NFC Control Relay
- https://youtu.be/E6EmoxCSol0?si=pgsC4CGbLrNit1R8
- CE|UL|CSA|IEC 60947-4-1|IEC 61000-4-3|IEC 61000-4-5|IEC 60947-4-1|IEC 60068-2-6|IEC 60068-2-27|IEC 60255-27|IEC 61000-4-2|IEC 60068-2-30|IEC 60947-1|EN/IEC 61000-6-2|IEC 60664-1|EN/IEC 61000-6-4|IEC 61000-4-4|EN/IEC 60255-1|EN/IEC 61000-6-3|IEC 60947-5-1|EN/IEC 61000-6-1|IP50|IP20|IP30
