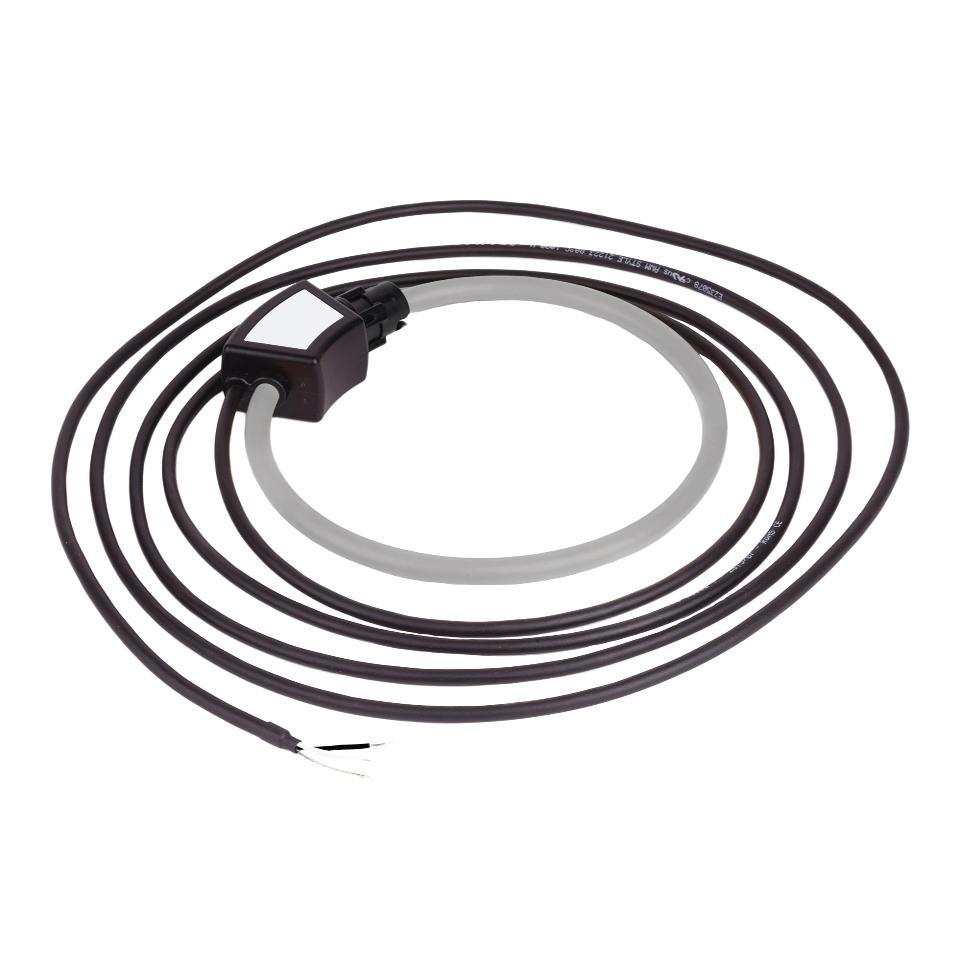

Schneider Electric METSECTR30500 PowerLogic Current Transducer, 5000 A primary, 600 VAC, 50 to 1500 Hz
Sku #60648942142
MFG #METSECTR30500
Attributes
| Type: | Current Transducer |
| Primary Current: | 5000 A |
| Frequency Rating: | 50 to 1500 Hz |
| Series: | PowerLogic |
| Voltage Rating: | 600 V AC |
| Accuracy: | 1 % |
- For retrofit installation, has a line rated current of 50A to 5000A
- The offer ranges from basic kWh meters to more advanced energy meters able to measure a variety of electrical parameters
- The meters provide energy consumption data via graphical display, pulse output and/or Modbus communication
- There are there are ten different models to suit your specific needs
- The meters are fully compliant with the Acti 9 communication system, so integrating electrical distribution into your facility management system has never been simpler
- Graphical display for easy viewing
- Compact size with double fixation on the DIN rail
- Anti-tamper security features ensure the integrity of you data
- Internal clock saves the date and time of the last reset
- Internal clock saves date and time for 48h in case of power outage
- Multi-tariff selection by digital inputs or the internal clock
- Digital output for alarming or configured as pulse output
- WAGES monitoring
- Flexible core current transformer type
- 50 to 5000 A measurement current
- 50 to 1500 Hz frequency measurement range
- IV installation category
- 0.31 in (8 mm) thickness
- Closed 3.78 in (96 mm) diameter
- EN 61010-2-032|UL 61010-2-032|UL 61010-1|EN 61010-1|ANSI/IEEE C57.13|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|UL Recognized|CE|CURus
