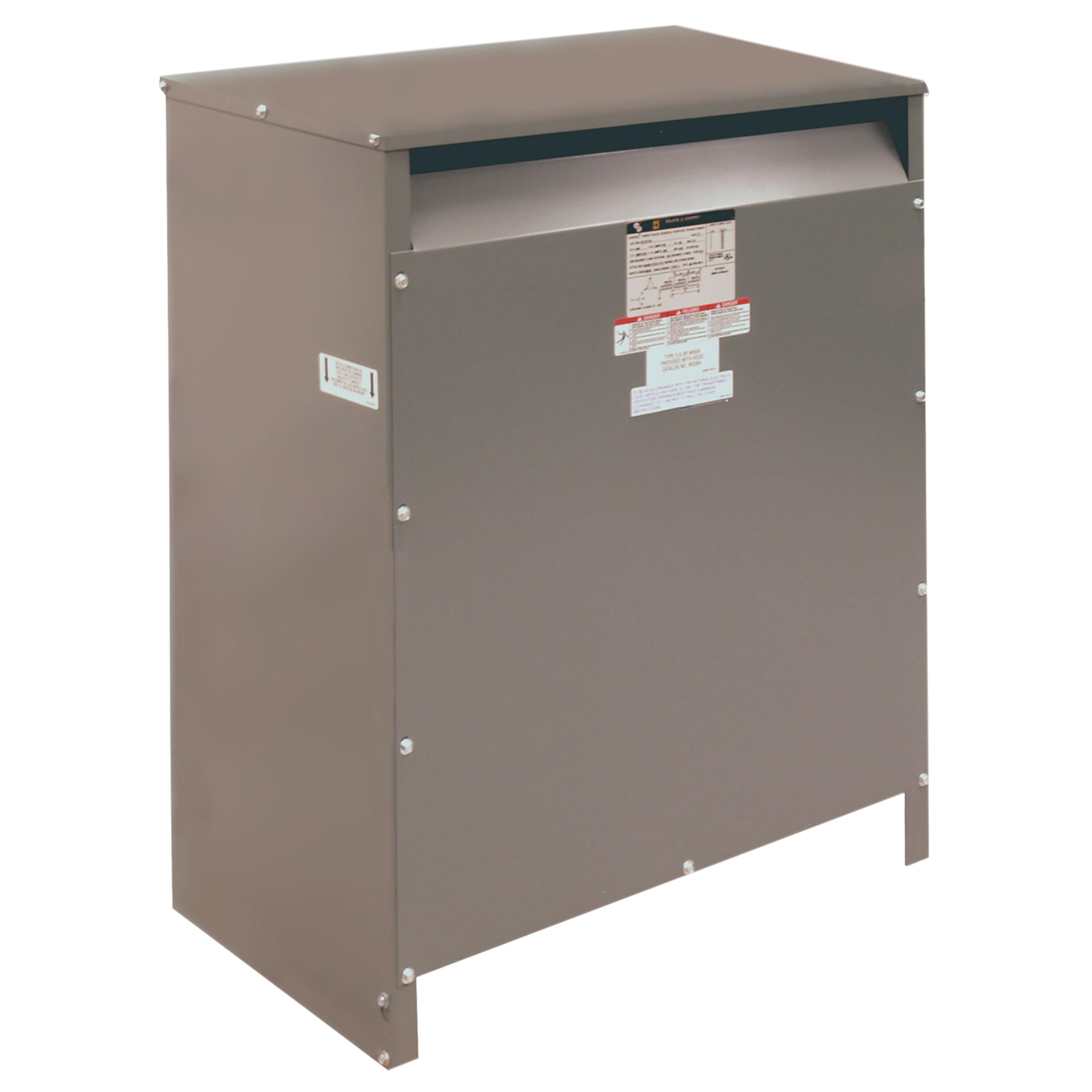

Square D™ EE37S3HOC Dry Type Low Voltage Open Core and Coil Transformer, 240 x 480 V Primary, 120/240 V Secondary, 37.5 kVA Power Rating, 60 Hz, 1 ph
Sku #60648612779
MFG #EE37S3HOC
Attributes
| Type: | Dry Type Low Voltage |
| Secondary Voltage: | 120/240 V |
| Frequency Rating: | 60 Hz |
| Primary Voltage: | 240 x 480 V |
| Power Rating: | 37.5 kVA |
| Phase: | 1 |
- 3 in rear clearance and 1/2 in side clearance, reducing over all floor space required
- Top terminated primary and secondary terminals, sized to handle wire range of Square D™ equipment
- Distribution system connect on the incoming and outgoing
- Bending radius for side and bottom access
- Units shipped from factory connected for 480 V primary and 240 V secondary
- Self-certified seismic qualified via ICS ES AC 156 shake table testing
- https://youtu.be/o5iGf62pPfY
- Material Handling an Hoisting Applications
- UL Listed
