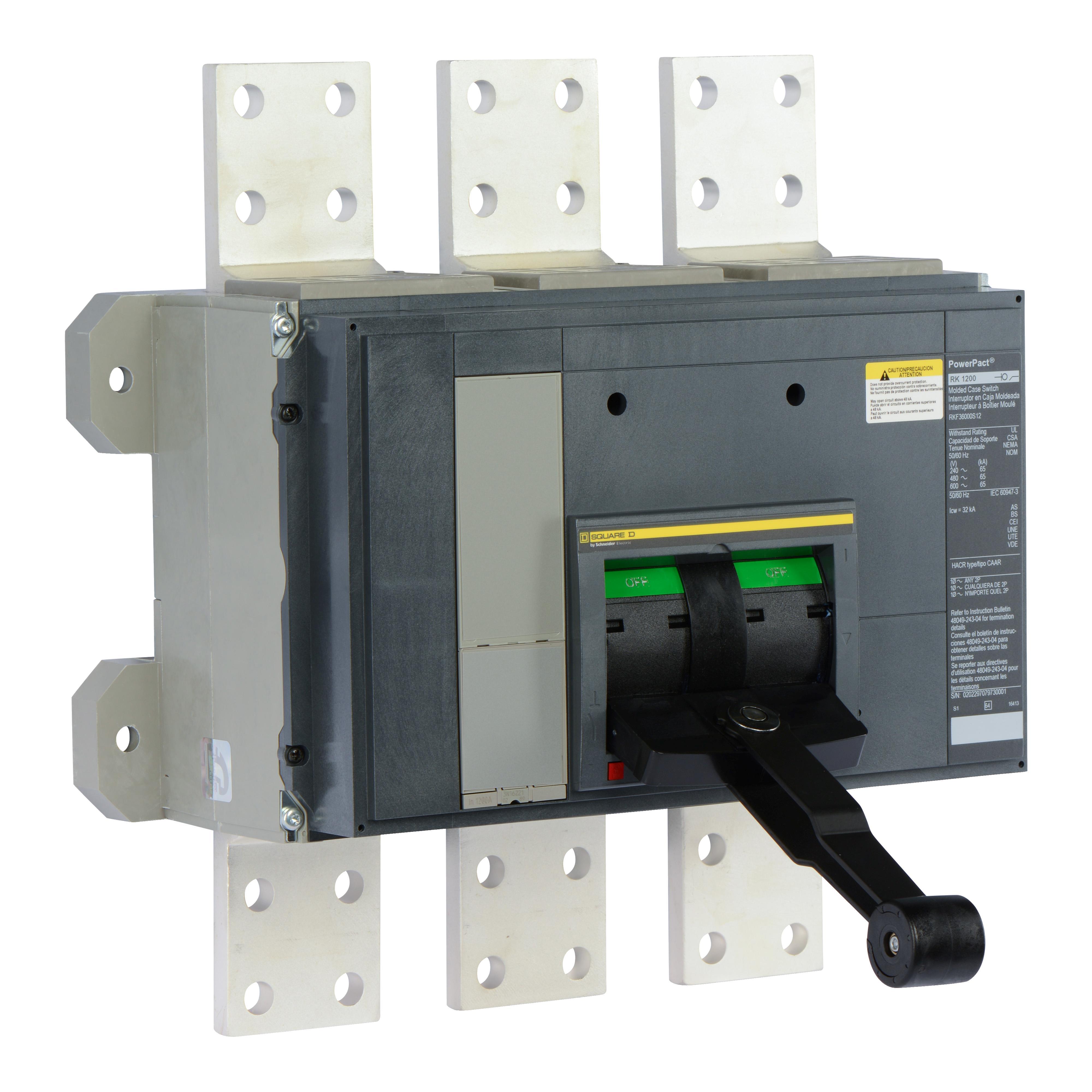

Square D™ RLF36000S25 Molded Case Circuit Breakers

Documents

Square D™ RLF36000S25 Power Pact Automatic Switch, 600 V AC, 2500 A, 125 kA at 240 V/100 kA at 480 V/50 kA at 600 V Interrupt, 3 Poles, Magnetic Trip

Sku #60648612033

MFG #RLF36000S25

Attributes

Type:	Automatic
Voltage Rating:	600 V AC
Interrupt Rating:	125 kA at 240 V/100 kA at 480 V/50 kA at 600 V

Series:	Power Pact
Amperage Rating:	2500 A
Frame:	R

To open and close a circuit under normal operating conditions
Can make and break its rated current
Factory set nonadjustable trip point to protect the molded case switch
A wide range of accessories, auxiliaries, and lug connections available

Documents

Full Engineering Drawing

Square D™Square D™ RLF36000S25 Power Pact Automatic Switch, 600 V AC, 2500 A, 125 kA at 240 V/100 kA at 480 V/50 kA at 600 V Interrupt, 3 Poles, Magnetic Trip

SKU #60648612033

MFG #RLF36000S25
