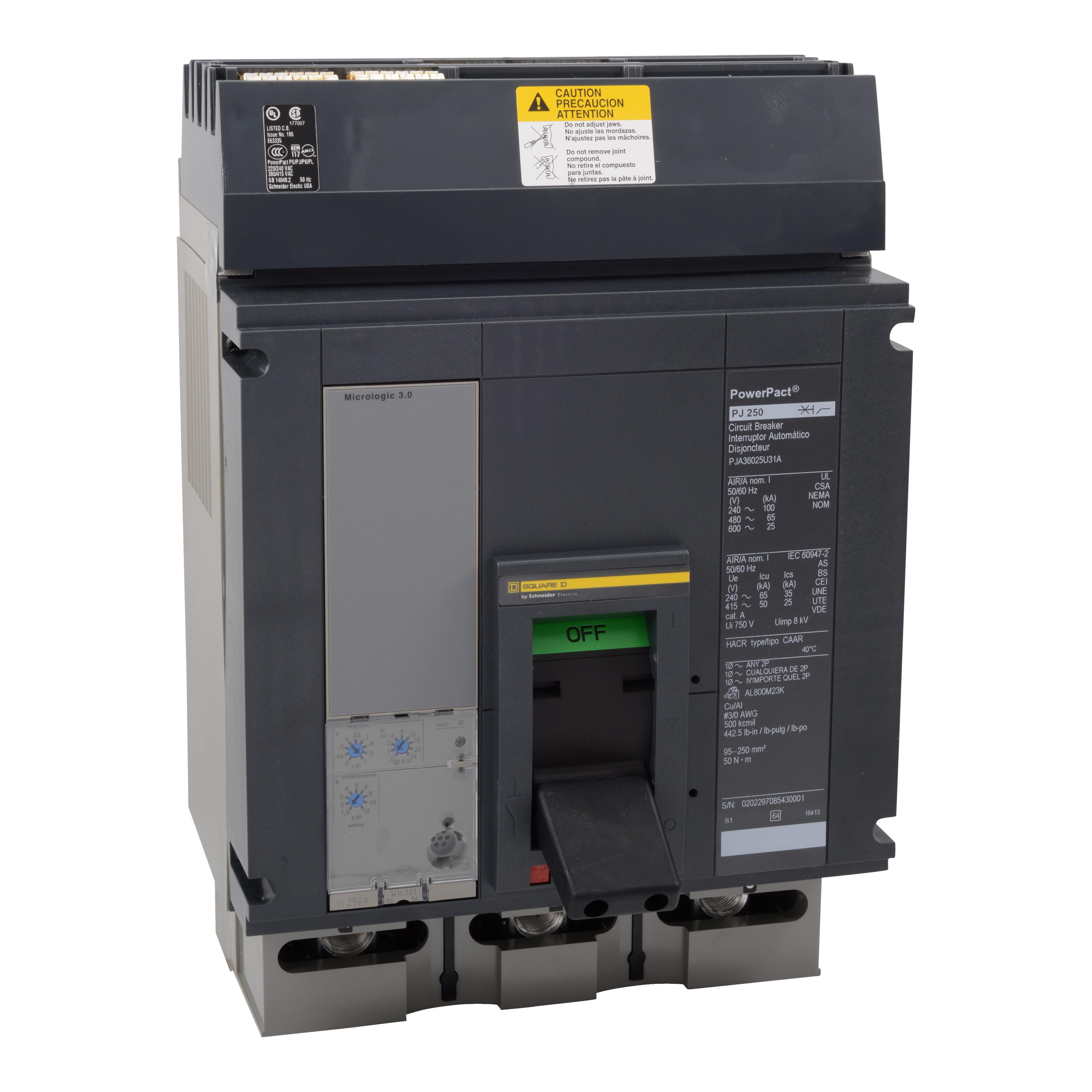

Square D™ PJA36080U44B Molded Case Circuit Breakers

Documents

Square D™ PJA36080U44B Power Pact Circuit Breaker, 600 V AC, 800 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC/65 kA at 240 V AC/50 kA at 380/415 V AC Interrupt, 3 Poles, Electronic Trip

Sku #60648611845

MFG #PJA36080U44B

Attributes

Series:	Power Pact
Amperage Rating:	800 A
Interrupt Rating:	100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/65 kA at 240 VAC/50 kA at 380/415 VAC

Voltage Rating:	600 V AC
Frequency Rating:	50, 60 Hz
Frame:	P

Available in 2, 3, 4 pole design
Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
Used as main panel disconnect for control panel
