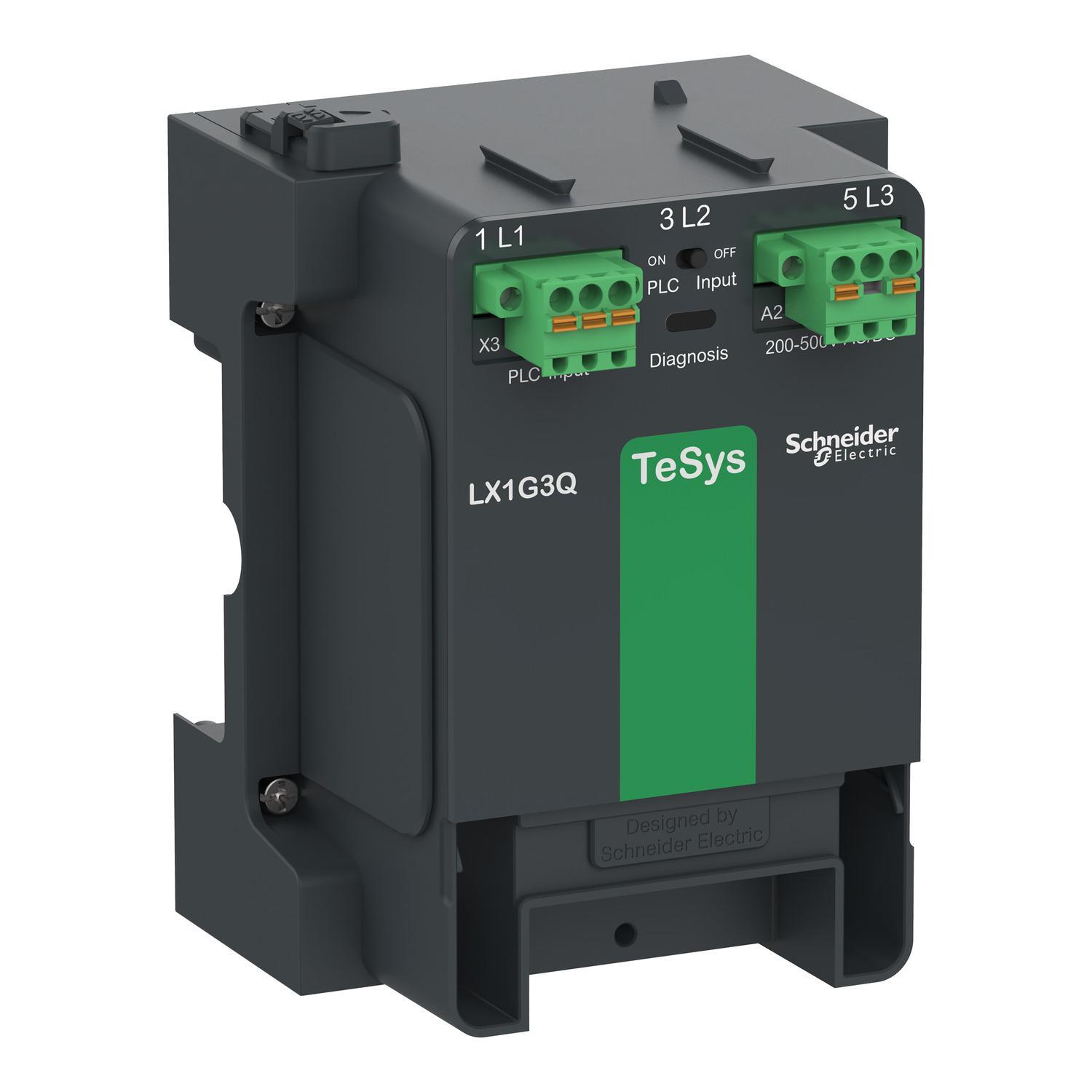

Schneider Electric LX1G3QEHEA LX1G Control Module, 3 Poles, For Use With LC1G115-225
Sku #60648194617
MFG #LX1G3QEHEA
Attributes
| Type: | Control |
| Number of Poles: | 3 |
| Specifications: | TeSys G LX1G contactor coil, 20 to 35 ms opening 40 to 55 ms closing Operating time, 48 to 130 V AC/DC 50/60 Hz control circuit voltage, 5 Mcycles Mechanical durability, 600 cyc/mn 140 deg F Maximum operating rate -13 to 140 deg F Ambient Air Temperature |
| Series: | LX1G |
| Suitable For Use With: | LC1G115-225 |
| Dimensions: | 5.69 in H x 4.16 in W x 3.70 in D |
- AC/DC wide band electronic coil, more robust to voltage fluctuations and address different global voltage systems
- Less number of references, simple to select, choose means less inventory
- Coils are accessible from the front and maintained with very low down times
- Low power consumption make significant savings on automation equipment, saves space and simplifies the diagrams
- Advanced and Standard versions to address customer needs, PLC output control in Advanced version
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking and instruction sheet
- https://youtu.be/eLfPTKp-6GI
- IEC 60529|VDE 0106|PROP65: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm
- For less energy consumption and wider voltage band-width, connection by spring terminal
