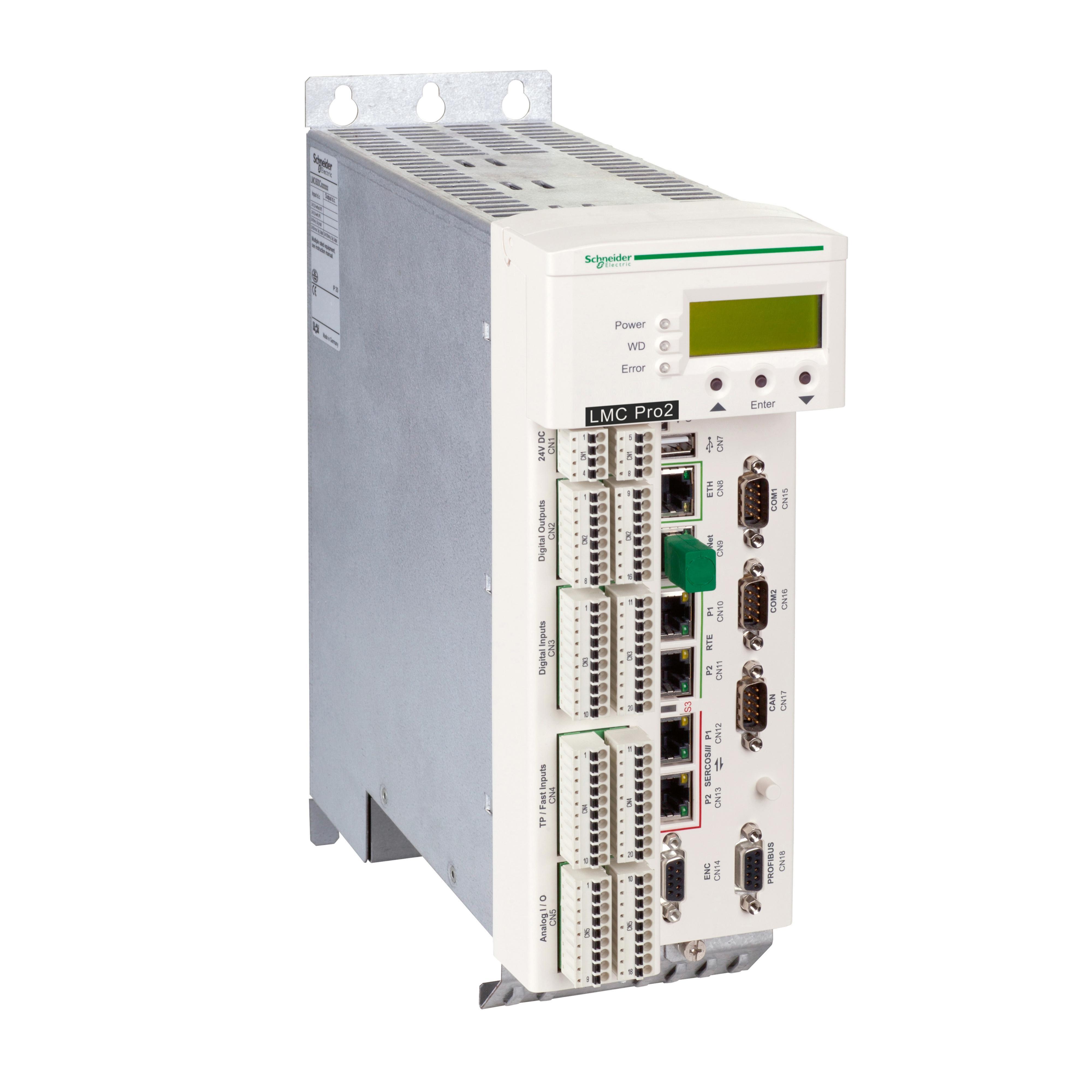

Schneider Electric LMC902CBG10000 PacDrive 3 Motion Controller, 24 V DC, 250 mA, 2 Inputs, 2 Outputs
Sku #60648181409
MFG #LMC902CBG10000
Attributes
| Series: | PacDrive 3 |
| Amperage Rating: | 250 mA |
| Number of Inputs: | 2 |
| Voltage Rating: | 24 V DC |
| Power Rating: | 36 W |
| Number of Outputs: | 2 |
- PLC, motion/robotics and IT functionality, no additional and/or proprietary hardware required for the complete machine (incl. robotics)
- Scalable Controller performance from 0 to 99 servo drives (in parallel up to 250 virtual axes) and embedded robots
- 4096 dynamic electronic cam disks can be operated in parallel
- 1 msec network update rate for 99 servo axes
- Integrated high speed I/O - externally expandable
- Fully Ethernet-based communication with Sercos for I/O- motion (robotics)- and safe communication
- supporting other RT Ethernet solutions, standard IEC field busses and as well TCP/IP communication
- Supports international protocol standards for vertical integration, remote maintenance and web services
- One CoDeSys based programming tool - SoMachine
- One machine program compliant to IEC 61131-3 for controlling the complete machine
- SoMachine Tools for supporting the whole engineering process with PacDrive controllers, including commissioning, diagnostics and maintenance energy efficiency approaches
- Application libraries and open source software available
- EN/IEC 61131-2|UL 508C|CSA C22.2 No 14|CSA C22.2 No 274|CE|cULus|EAC|CSA
