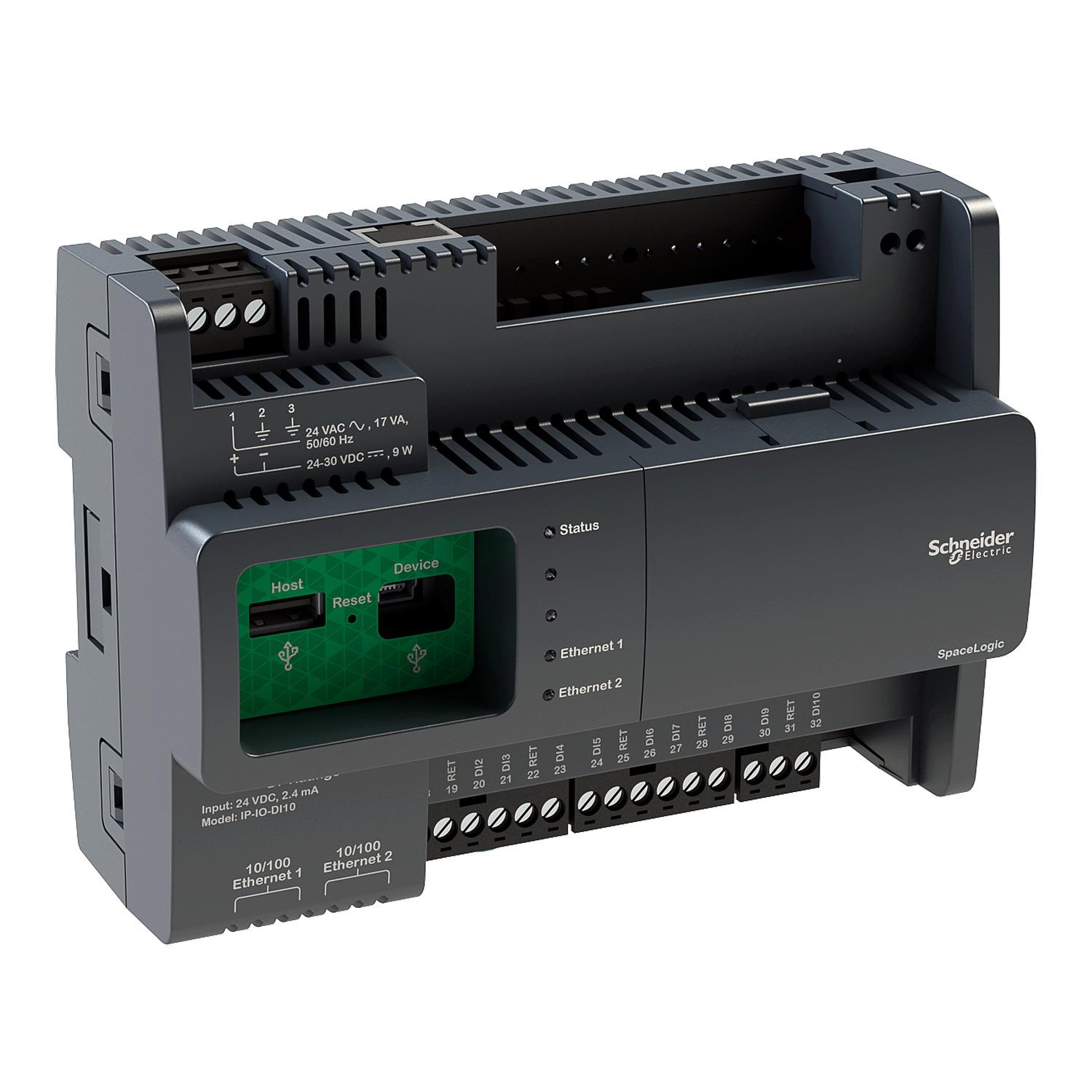

Schneider Electric SXWIPIOAA1S001 IP-IO Expander, 24 V AC/24 to 30 V DC/21 to 33 V DC, 10 Inputs
Sku #60648159913
MFG #SXWIPIOAA1S001
Attributes
| Series: | IP-IO |
| Power Rating: | 9 W |
| Temperature Rating: | 32 to 122 deg F Operating/4 to 158 deg F Storage |
| Voltage Rating: | 24 V AC/24 to 30 V DC/21 to 33 V DC |
| Number of Inputs: | 10 |
| Dimensions: | 4.3 in H x 6.02 in W x 2.5 in D |
- For Low voltage fan coil
- UL 916|ICES-003|UL 864|EN 61000-6-2|EN 50491-5-3|EN 60730-1|EN 60730-2-11|EN 50491-3|EN 61000-6-3|EN 50491-5-2|FCC part 15 Subpart B class B
- BACnet/IP-enabled, dual-port Ethernet switch for flexible network configurations
- Fast configuration and commissioning using the EcoStruxure Building Commission
- Three standard models available with versatile onboard I/O point mix
- Optional display that provides insight and control of the inputs and outputs
- Supports local trends and alarms
- Compatible with SpaceLogic Automation Servers, Plant Room and room Controllers
