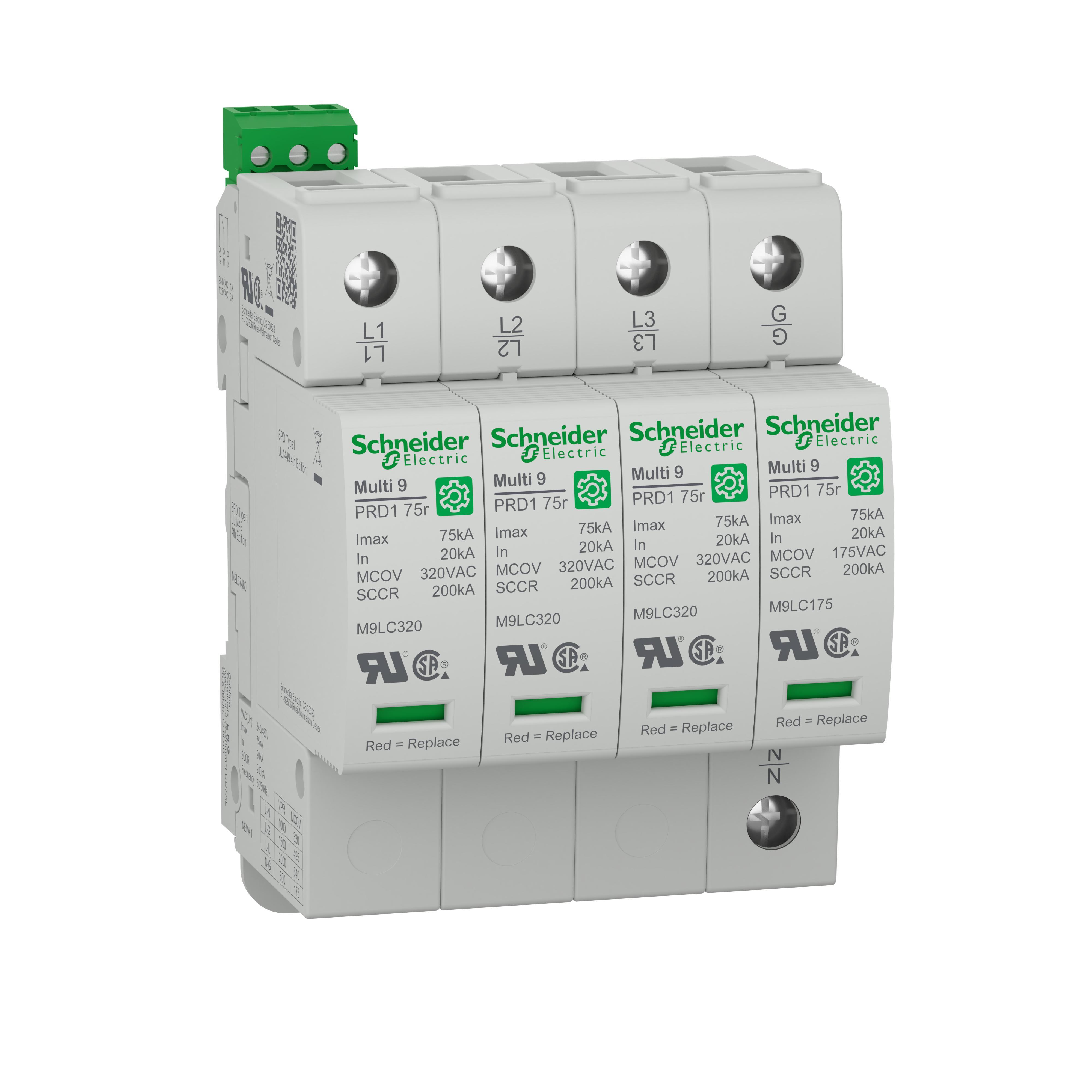

Schneider Electric M9L37480 Multi 9 Surge Arrester, 20 kA, 4 poles, 200 kA sccr
Sku #60648158601
MFG #M9L37480
Attributes
| Type: | Surge Arrester |
| Electrical Ratings: | 20 kA |
| Number of Wires: | 5 |
| Series: | Multi 9 |
| Number of Poles: | 4 |
| Short Circuit Current Rating: | 200 kA |
- Multi 9 is a range of DIN rail modular devices, a solution offering great performance
- Multi 9 range is a Schneider Electric global offer dedicated to equipment manufacturers (OEMs), meeting all global standards for industry applications
- Designed to meet your needs for all types of machines and offering a wide range of modular devices, it provides protection, signaling functions, and accessories
- Small footprint to reduce your panel size, cost effective, less commercial references
- With remote signalling
- Electrical distribution network surge arrester type
- Type 1 surge arrester class type
- MOV surge arrester technology
- 75 kA maximum discharge current
- 75 kA iimp impulse current
- Common mode 495 V AC L/PECommon mode 320 V AC L/NDifferential mode 640 V AC L/LCommon mode 175 V AC N/PE uc maximum continuous operating voltage
- Common mode <1500 V L/PECommon mode <1000 V L/NDifferential mode <2000 V L/LCommon mode <600 V N/PE maximum up voltage protection level
- Associated circuit breaker 30 A C 10 kA disconnector device type
- 200 kA short-circuit withstand
- 8 9 mm pitches
- 0.39 in (10 mm) L/N 0.39 in (10 mm) PE 0.24 in (6 mm) dry contacts wire stripping length
- UL 1449:ed. 4
