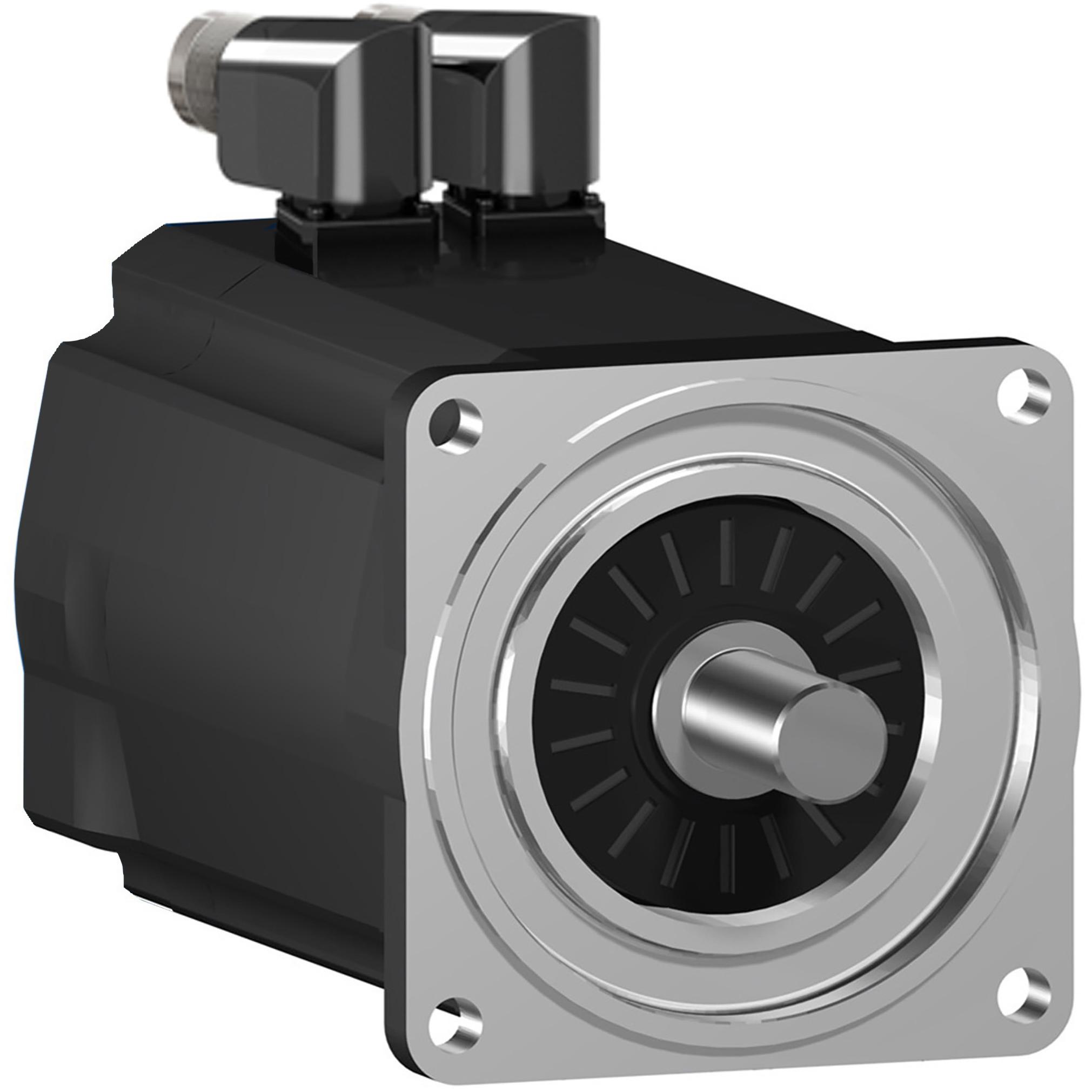

Schneider Electric Square D™ Lexium™ 52 SH31004P11A2200 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection Standard Servo Motor, 3.4 hp, 115 to 480 V, 32.3 A, 6000 rpm Speed, Flange Mount
Sku #60648155061
MFG #SH31004P11A2200
Attributes
| Type: | 3-Phase Singleturn Parallel Keyed Shaft End Natural Convection |
| Special Features: | Synchronous Permanent Magnet AC Motors |
| Voltage Rating: | 115 to 480 V |
| Series: | SH3 100 |
| Horsepower: | 3.4 hp |
| Amperage Rating: | 32.3 A |
- Overload capacity - high peak current (up to 4X the continuous current)
- Increases the range of movement
- Power density - the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the Servo Motor has to be braked frequently
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Without holding brake
- 87.62 in-lbf at 115 V 3 ph, 84.08 in-lbf at 230 V 3 ph, 7.9 N-m at 400 V 3 ph and 6.9 N-m at 480 V 3 ph
- General Machine Control, Packaging Machine Automation and Handling Applications
- CE Certified|EN/IEC 60034-5|Green Premium™ Listed|REACH Compliant|RoHS Compliant|UL 1004|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
