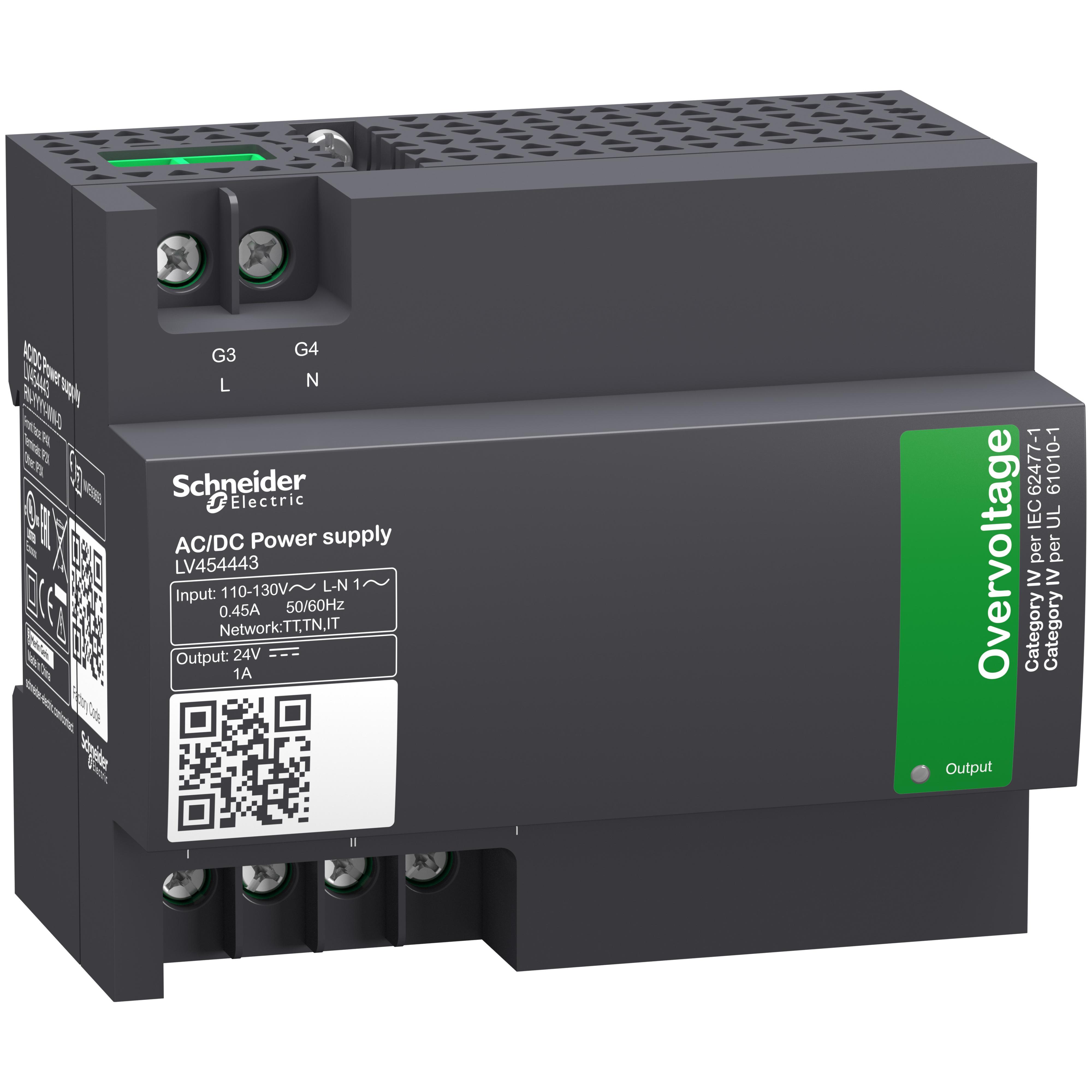

Schneider Electric LV454443 External power supply module, for use with Masterpact MTZ/MasterPact NT/Masterpact NW/ComPact NSX/ComPact NSX DC/ComPact NS630b to 1600/ComPact NS1600b to 3200/PowerPact H/PowerPact J/PowerPact L/PowerPact P/PowerPact R
Sku #60648119095
MFG #LV454443
Attributes
| Type: | External power supply module |
| Dimensions: | 90 mm H x 108 mm W x 67.5 mm D |
| Suitable For Use With: | Masterpact MTZ/MasterPact NT/Masterpact NW/ComPact NSX/ComPact NSX DC/ComPact NS630b...1600/ComPact NS1600b...3200/PowerPact H/PowerPact J/PowerPact L/PowerPact P/PowerPact R |
| Country of Origin: | US |
- 93.5 to 143 V AC 47.5 to 63 Hz input voltage limits
- IV IEC 62477-1IV UL 61010-1 overvoltage category
- 1 A power supply output current
- 24 W rated power in w
- 85 % efficiency
- 4.2 W power dissipation in w
- >= 20 ms 110 to 130 V AC holding time
- 1.5 A 200 ms) permissible temporary current boost
- Horizontal operating position
- 0 to 6561.68 ft (0 to 2000 m) operating altitude
- Electrostatic discharges EN/IEC 61000-4-2Induced electromagnetic field EN/IEC 61000-4-6Magnetic field EN 61000-4-8Primary outage IEC 61000-4-29Radiated electromagnetic field EN/IEC 61000-4-3Rapid transient IEC 61000-4-4Surge EN/IEC 61000-4-5Radiated emissions EN 61000-6-3Conducted emissions on the power line EN 61000-6-3 name of test
- EMC EN/IEC 61000-6-2EMC EN/IEC 61000-6-3Safety IEC 62477-1Safety SELV environmental characteristic
- 3000 V between input and ground3000 V between input and output1500 V between output and ground dielectric strength
- CB_EXTERNAL_POWERSUPPLY compatibility code
- With toxic heavy metal free
- UL|61010-1IEC 62477-1
