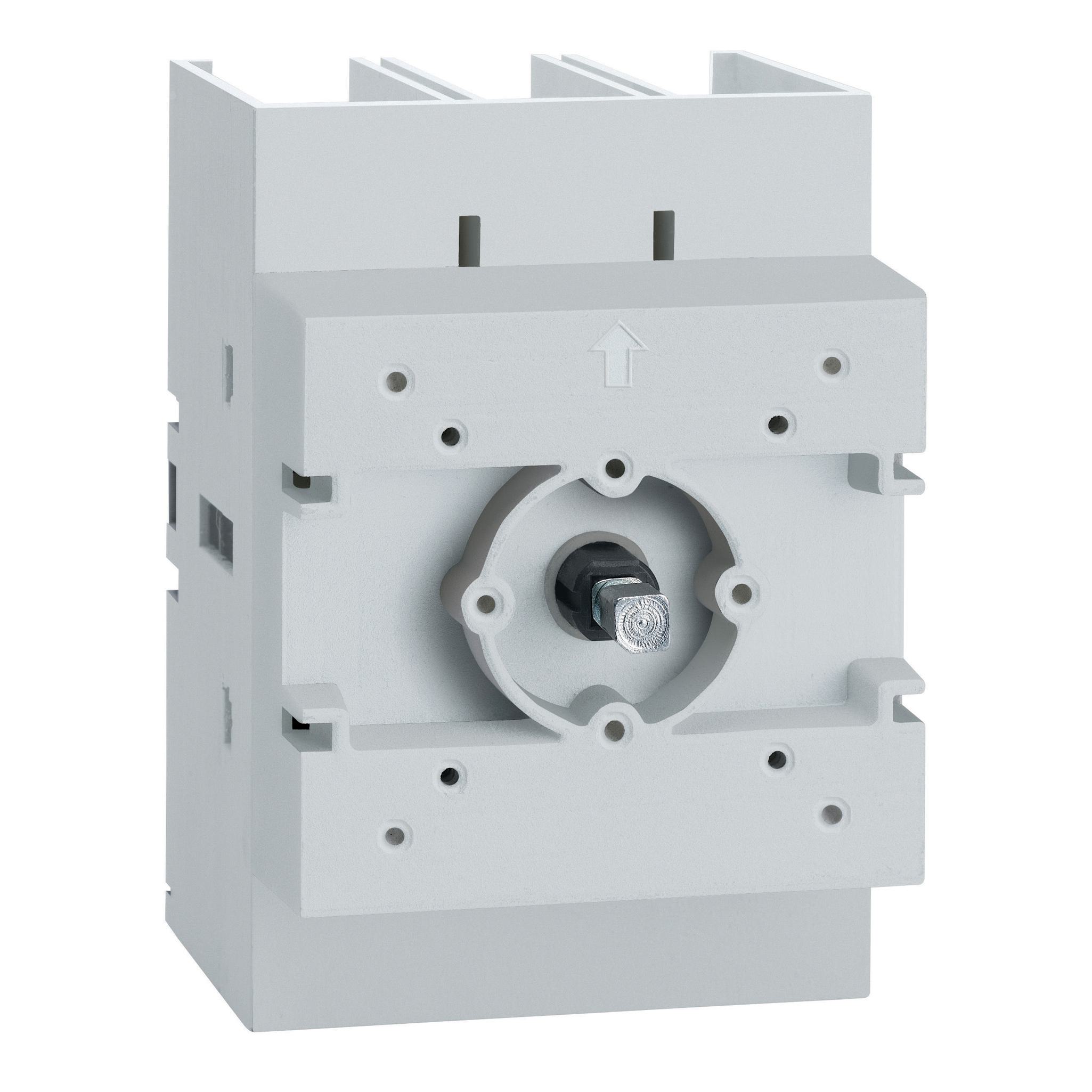

Schneider Electric TeSys™ Vario™ LS VLS3P080D2 AC High Performance Body Switch Disconnector, 690 V AC, 47/63/80/100 A, 3NO 3 Form A Contact, 3 Poles
Sku #60648115656
MFG #VLS3P080D2
Attributes
| Type: | AC High Performance |
| Voltage Rating: | 690 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | VLS3P |
| Amperage Rating: | 47/63/80/100 A |
| Number of Poles: | 3 |
- The three-pole disconnect switches are made up of a single unit body
- Compact Size
- No tools needed for mounting and removal of the fourth pole and add-on blocks
- fuse J 100 A maximum, 50 kA at 600 V AC, fuse T 100 A maximum, 50 kA at 600 V ACcircuit-breaker 200 A maximum, 100 kA at 480 V AC, fuse CC 200 A maximum, 100 kA at 480 V AC, fuse J 200 A maximum, 100 kA at 480 V AC, fuse T 200 A maximum, 100 kA at 480 V AC, fuse CC 100 A maximum, 50 kA at 600 V AC
- UL 98|CSA C22.2 No. 4|GL|IEC 60947-3/60529/60695-2-11
