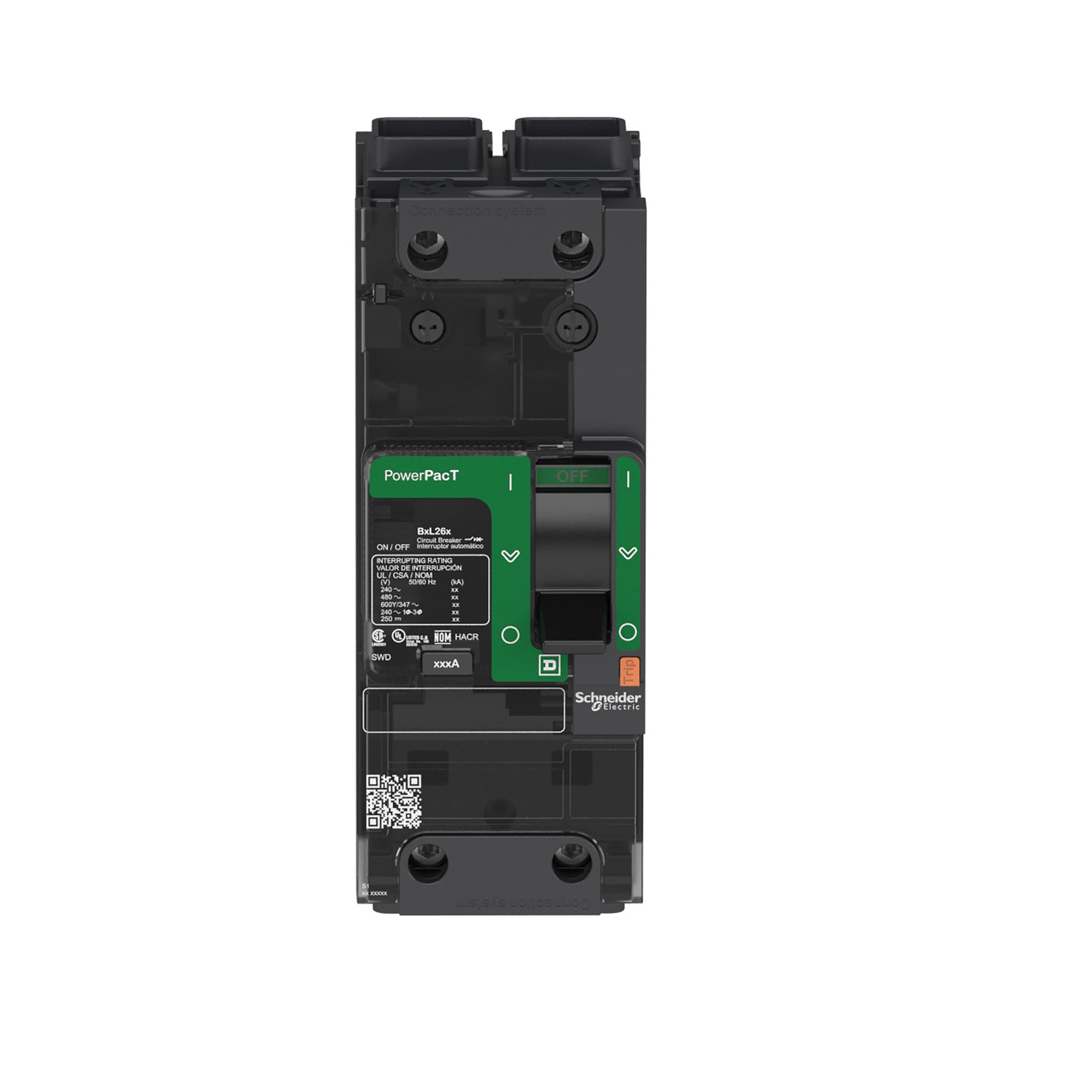

Schneider Electric PowerPact™ BDF26070 Type BDF Molded Case Circuit Breaker, 600Y/347 VAC, 70 A, 14 kA Interrupt, 2 Poles, Electronic Trip
Sku #60648114899
MFG #BDF26070
Attributes
| Type: | Type BDF |
| Amperage Rating: | 70 A |
| Interrupt Rating: | 14 kA |
| Voltage Rating: | 600Y/347 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | B |
- PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards
- One product can be used and sourced globally
- B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products from Square D™ by Schneider Electric
- PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
- Offered in unit mount construction only with a 100% protected neutral located in the far left pole
- B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product
- Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
- B-frame circuit breakers with thermal magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole
- 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC interrupt rating
- Terminal nut at both ends
- Screw plate/clip on 35 mm symmetrical DIN rail mount
- UL 489|CSA C22.2 No. 5|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NMX J-266|NEMA AB1|CE Certified|CCC Certified|EAC Approved|NOM Certified|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building Applications
