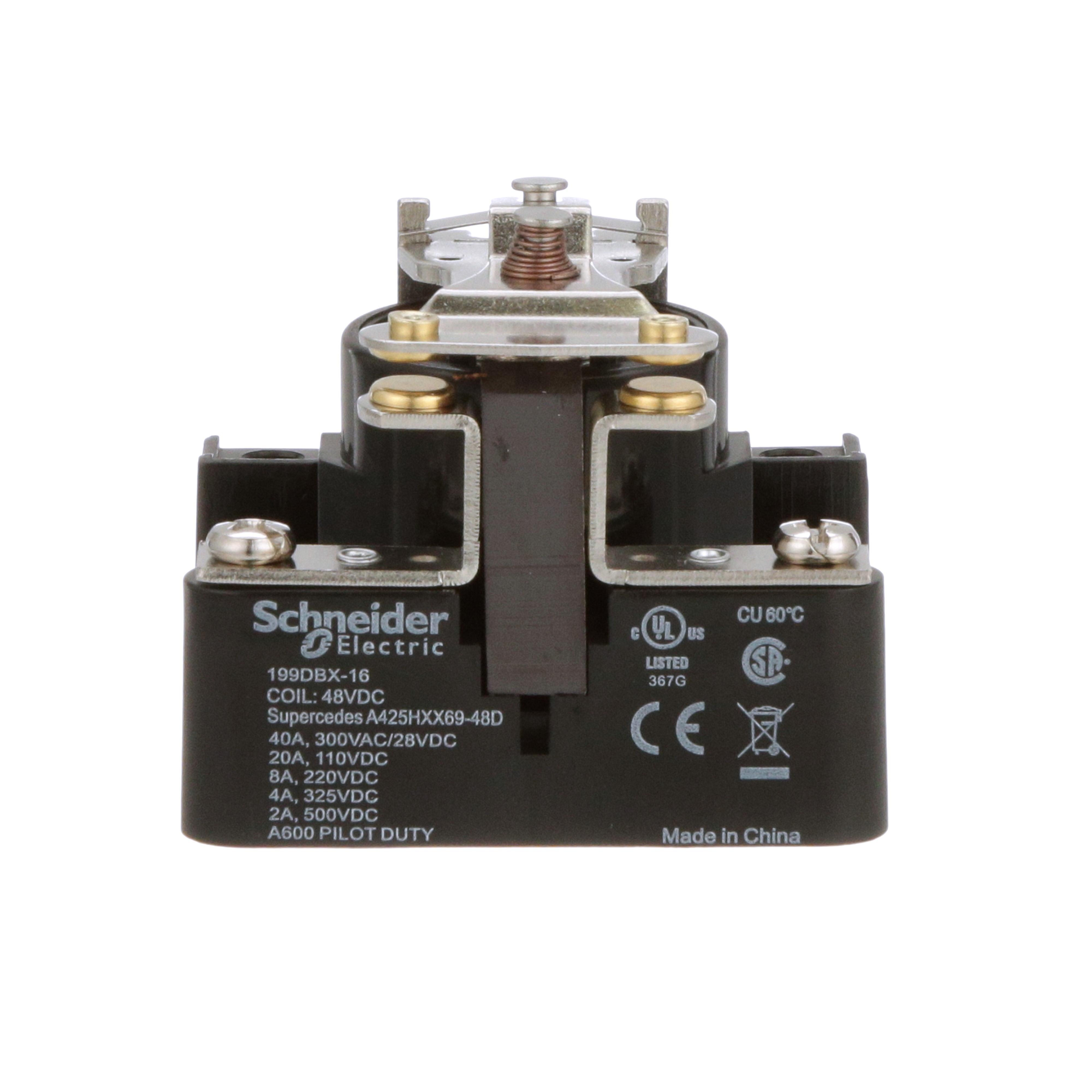

Schneider Electric 199DBX-16 Magnetic Blow-Out, 40 A, 1 Form A SPST contact, 48 V DC v coil
Sku #60648110508
MFG #199DBX-16
Attributes
| Type: | Magnetic Blow-Out |
| Power Rating: | 10 VAC |
| Contact Form: | 1 Form A SPST |
| Amperage Rating: | 40 A |
| Coil Voltage: | 48 V DC |
| Mounting Type: | Panel |
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Flux tight versions available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 1200 Ohm coil resistance
- 48 V DC input voltage
- >= 0.1 Uc AC/DC drop-out voltage threshold
- AWG 14 wire range
- 10.62 to 155 lbf.in (1.2 to 1.7 N.m) terminal tightening torque
- 2200 V AC between coil and contact2200 V AC between poles1500 V AC between open contacts dielectric strength
- With toxic heavy metal free
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
