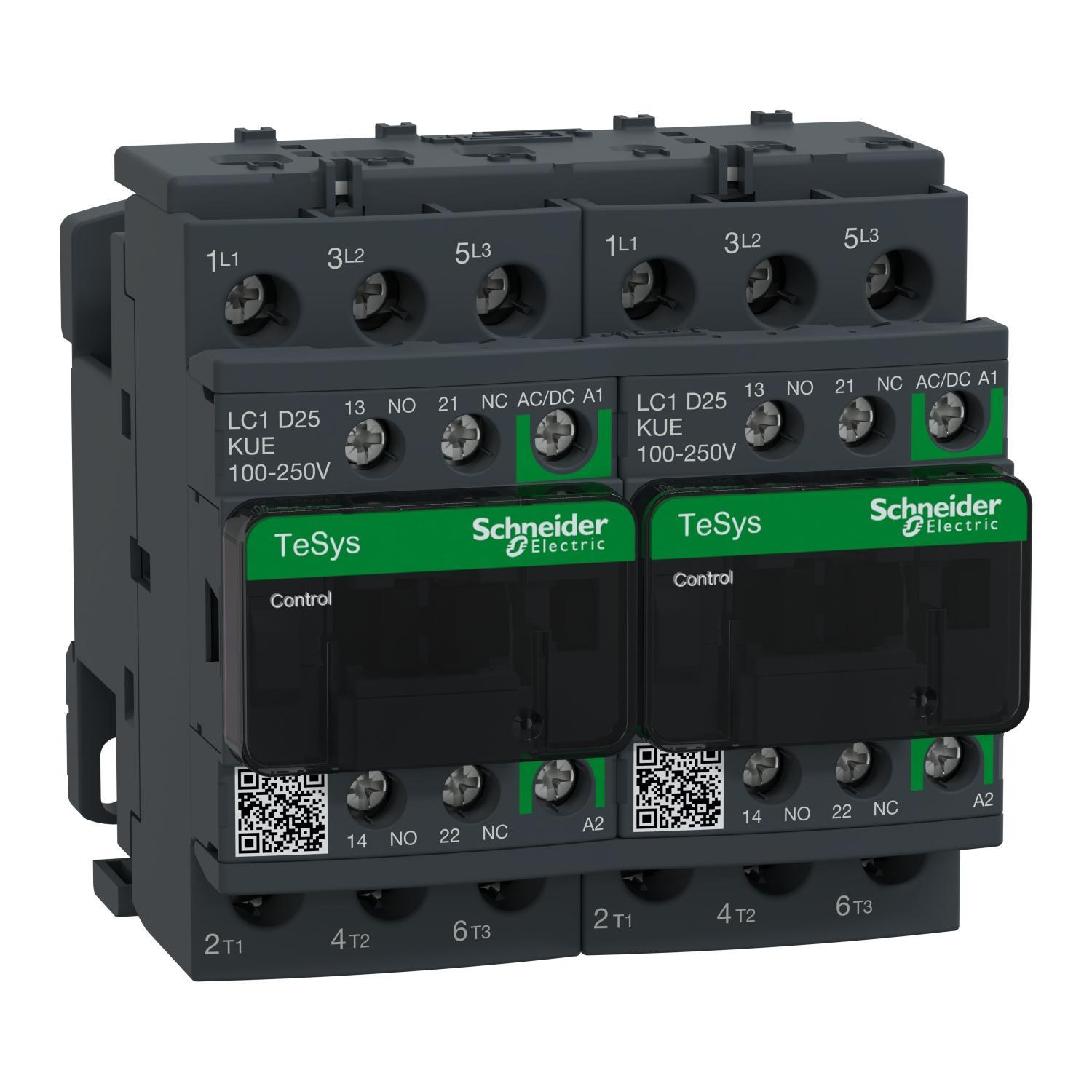

Schneider Electric LC2D25KUE TeSys™ D Reversing Contactor With Front Cover, 100 to 250 V AC/DC V Coil, 25 A, 1NO-1NC/3NO Contact, 3 Poles
Sku #60648098801
MFG #LC2D25KUE
Attributes
| Type: | Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 1.1 W |
| Series: | TeSys™ D |
| Maximum Load Current: | 25 A |
| Number of Poles: | 3 |
- Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
- CCC Certified|CSA C22.2 60947-4-1|DNV-GL Certified|EAC Certified|EN 60947-4-1/60947-5-1|Green Premium™ Listed|GOST Certified|IEC 60947-4-1/60947-5-1|KC Compliant|LROS Certified|REACH Compliant|UL File No. 60947-4-1
- For resistive load motor control applications
Schneider ElectricSchneider Electric LC2D25KUE TeSys™ D Reversing Contactor With Front Cover, 100 to 250 V AC/DC V Coil, 25 A, 1NO-1NC/3NO Contact, 3 Poles
SKU #60648098801
MFG #LC2D25KUE
