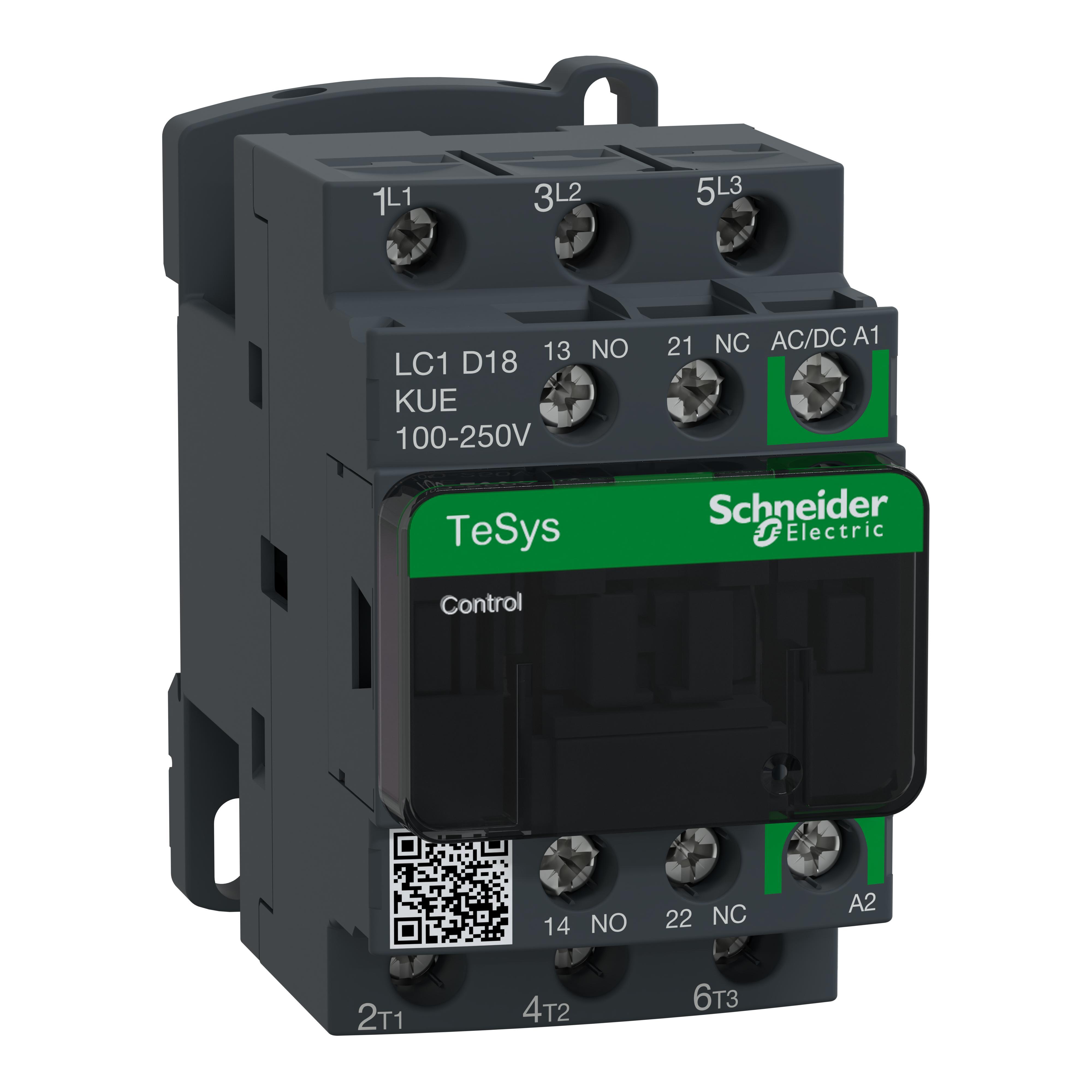

Schneider Electric Square D™ TeSys™ D LC1D18KUE 1/3 Phase Non-Reversing Contactor With Front Cover, 100 to 250 V AC/100 to 250 V DC V Coil, 18 A, 3NO Contact, 3 Poles
Sku #60648098771
MFG #LC1D18KUE
Attributes
| Type: | 1/3 Phase Non-Reversing |
| Maximum Load Current: | 18 A |
| Number of Poles: | 3 |
| Coil Voltage: | 100 to 250 V AC/100 to 250 V DC |
| Coil Power Rating: | 15 hp at 575/600 VAC 3 ph |
| Frequency Rating: | 25 to 400 Hz |
- CCC Certified|CSA Certified|CSA C22.2 No. 60947-4-1|DNV-GL Certified|EAC Certified|ECCN: EAR99|EN/IEC 60947-4-1|EN/IEC 60947-5-1|LROS Certified|KC Certified|Green Premium™|REACH Compliant|UL 60947-4-1|WEEE Listed
- Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
- Motor Control and Resistive Load
