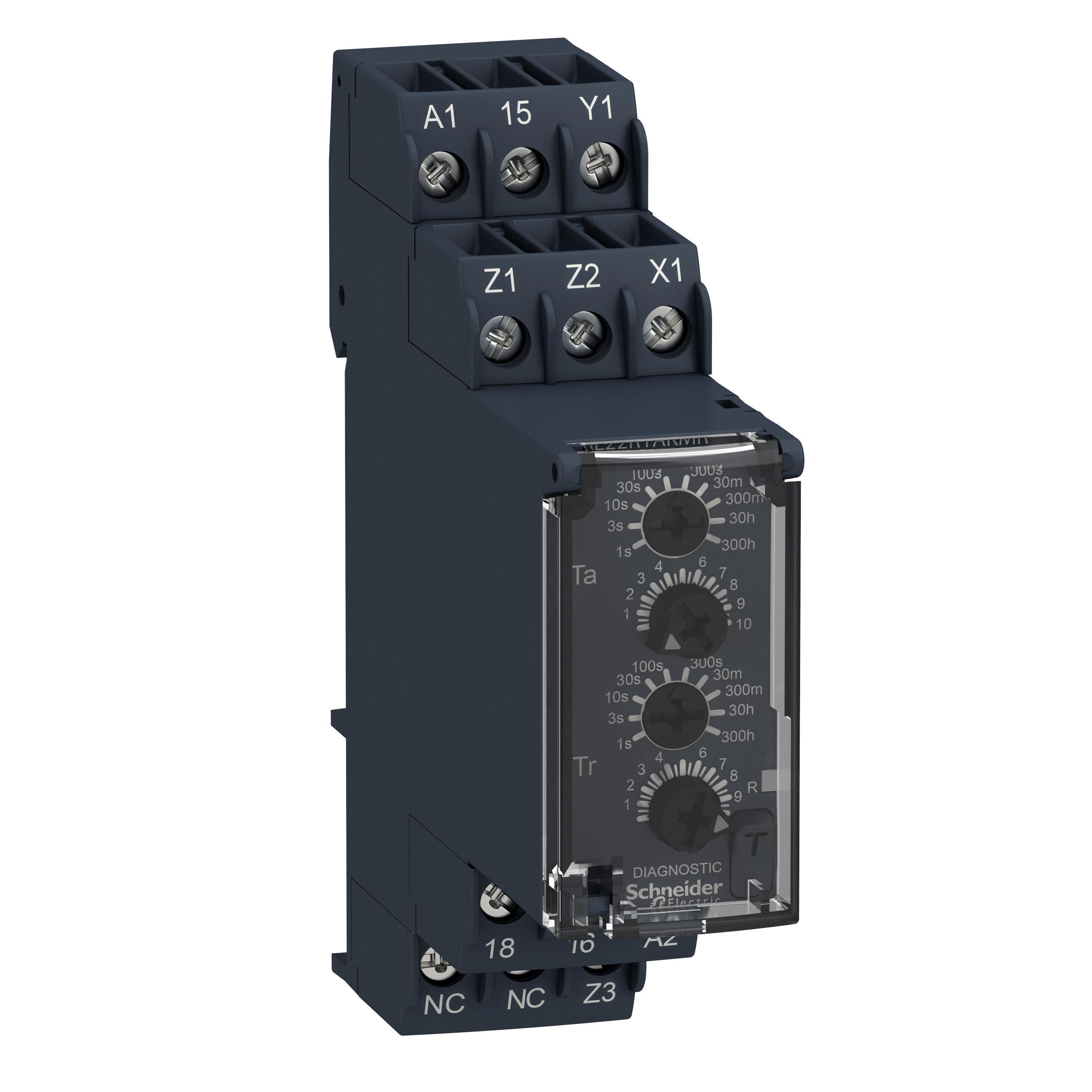

Schneider Electric Zelio RE22R1AKMR Modular Timing Relay, 30 to 300 hr, 3 to 30 min, 30 to 300 s, 0.05 to 1 s, 30 to 300 min, 10 to 100 s, 0.3 to 3 s, 3 to 30 hr, 1 to 10 s Setting, 250 V AC, 1CO 1 Form C Contact
Sku #60648079241
MFG #RE22R1AKMR
Attributes
| Series: | RE22 |
| Voltage Rating: | 250 V AC |
| Contact Form: | 1CO 1 Form C |
| Operation Mode: | On/Off Delay, Asymmetrical Flashing |
| Amperage Rating: | 8 A |
| Time Setting: | 30 to 300 hr, 3 to 30 min, 30 to 300 s, 0.05 to 1 s, 30 to 300 min, 10 to 100 s, 0.3 to 3 s, 3 to 30 hr, 1 to 10 s |
- Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
- Wide range of time delay for adjustment - from 0.01 s to 999 hr
- Unprecedented accuracy, predictive maintenance, and superior security
- Flexible choice of screw or spring connection terminals for wiring
- Dual function timer for a simple integration in hard-wired logic schematics
- https://youtu.be/tBG9lxwItqk?si=WY7Wu90IbnZaQbOJ
- UL File No. 508|IEC 61812-1|EAC Certified|CSA Certified|UL Listed|RCM Certified|CCC Certified|GL Certified|CE Certified|RoHS Compliant|REACH Compliant|Green Premium™ Listed|PROP65: This product can expose you to chemicals including, Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Automatic Doors, Bottling, Car Washes, Complex and Special Machines, Control Equipment Panels, Educational Campuses, Food and Beverage, HVAC, Industrial Buildings, Manufacturing, Material Handling and Process Control Applications
