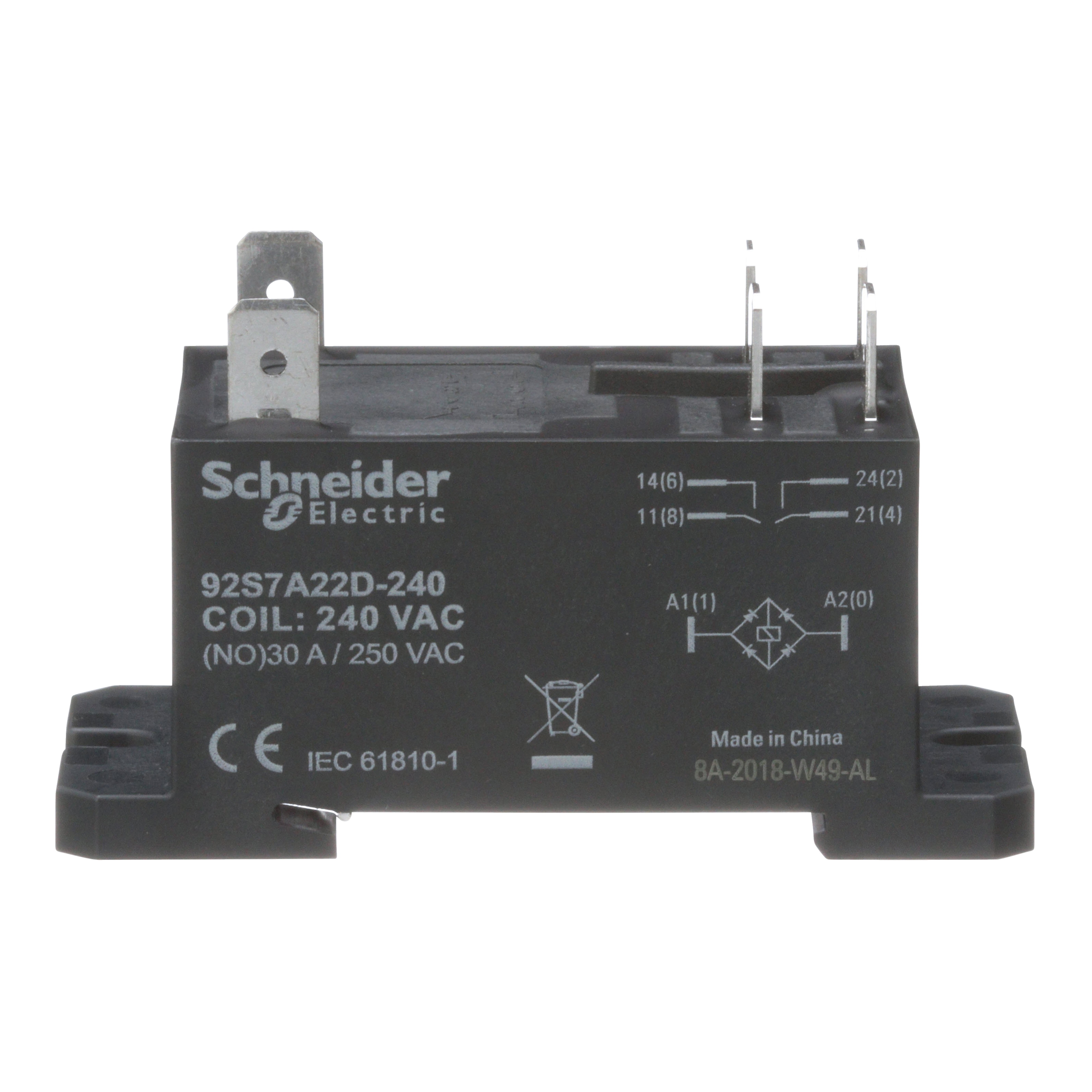

Schneider Electric 92S7A22D-240 Legacy Power Relay, 30 A, 2NO 2 Form A DPST contact
Sku #60648078196
MFG #92S7A22D-240
Attributes
| Type: | Power Relay |
| Amperage Rating: | 30 A |
| Contact Form: | 2NO 2 Form A DPST |
| Series: | Legacy |
| Power Rating: | 3.2 to 4.4 VAC |
| Mounting Type: | DIN Rail/Panel |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For a maximum coil temperature of 155, For any kind of automation needs, For elevated temperature applications
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 7500 VA/700 W AC/DC 13 mm gap between two relays6250 VA/700 W AC/DC relays side by side without a gap maximum switching capacity
- 6000 mW 500 mA / 12 V NO minimum switching capacity
- 17000 Ohm coil resistance
- 240 V AC input voltage
- >= 0.1 Uc DC>= 0.15 Uc AC drop-out voltage threshold
- Class F coil electrical insulation class
- 2.89 oz (82 g) product weight
- 5000000 cycles mechanical durability
- 4000 V AC between coil and contact1500 V AC between contacts2000 V AC between poles dielectric strength
- 1.2/50 s surge withstand duration
- With toxic heavy metal free
