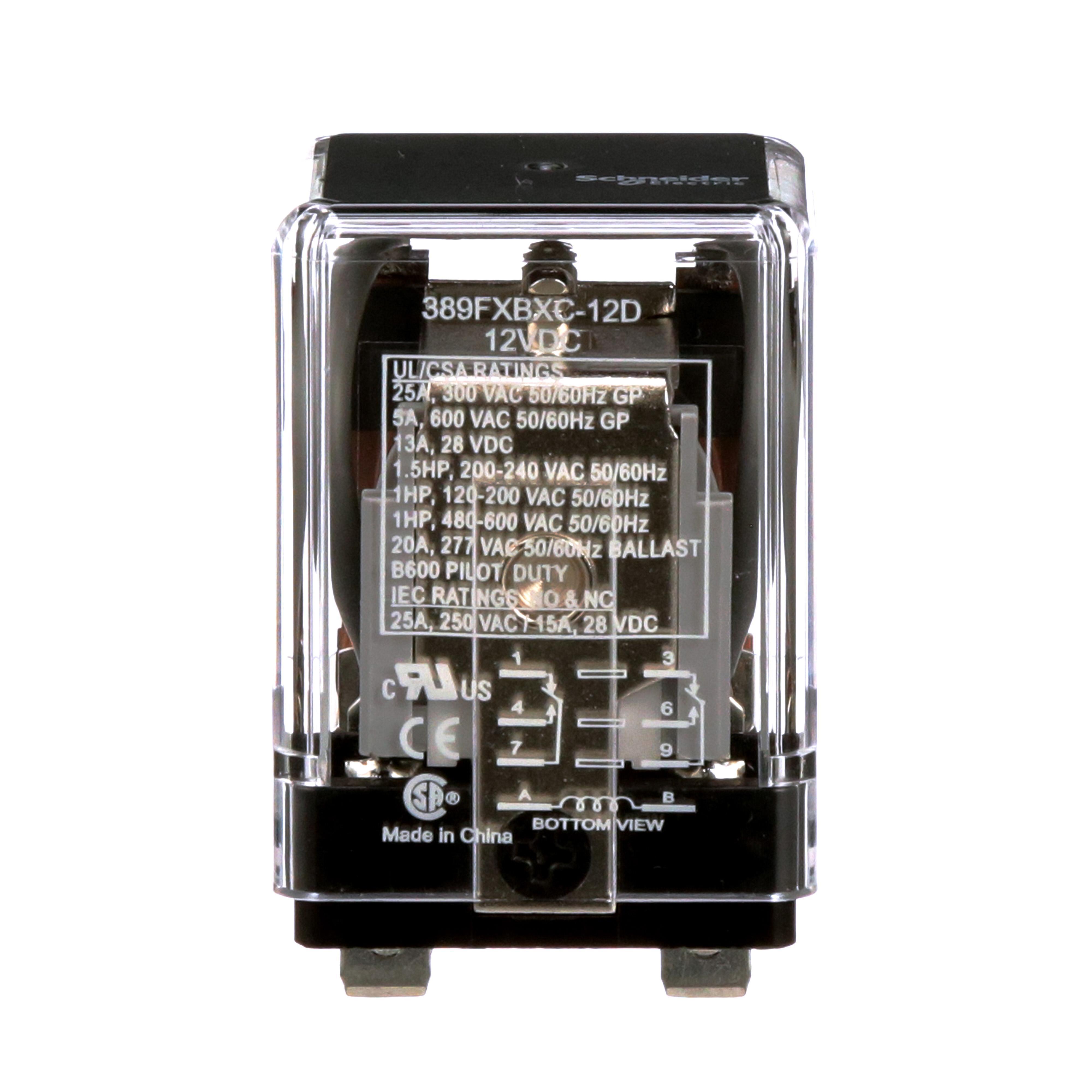

Schneider Electric 389FXBXC-12D Standard, 25 A, 2 Form C DPDT-NO,NC contact, 12 V DC v coil
Sku #60648077906
MFG #389FXBXC-12D
Attributes
| Type: | Standard |
| Power Rating: | 2 VAC |
| Contact Form: | 2 Form C DPDT |
| Amperage Rating: | 25 A |
| Coil Voltage: | 12 V DC |
| Mounting Type: | Socket |
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For variety of application requirements, For lighting controls, For high-power switching applications
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Flux tight versions available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 100 Ohm coil resistance
- 12 V DC input voltage
- >= 0.1 Uc AC/DC drop-out voltage threshold
- 2.96 oz (84 g) product weight
- 5000000 cycles mechanical durability
- 2200 V AC between coil and contact2200 V AC between poles1600 V AC between contacts dielectric strength
- With toxic heavy metal free
