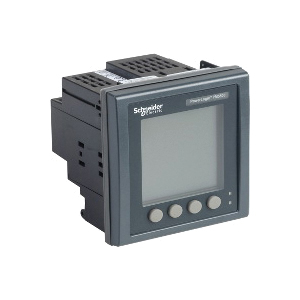

Square D™ PowerLogic™ METSEPM5560 PM5560 Power Meter, 100 to 480 V AC/125 to 250 V DC, 1/5 A, 50/60 Hz, 10 VA Power Rating
Sku #60648061406
MFG #METSEPM5560
Attributes
| Series: | PM5560 |
| Amperage Rating: | 1/5 A |
| Power Rating: | 10 VA |
| Voltage Rating: | 100 to 480 V AC/125 to 250 V DC |
| Frequency Rating: | 50/60 Hz |
| Accuracy: | +/-0.5% |
- For high-end cost management applications, WAGES metering, power monitoring, gateway and multi-tariff
- Class 0.2 serial port and dual Ethernet
- PM5560 device short name, up to the 63rd harmonic power quality analysis
- 1P+N, 3P, 3P+N poles, 128 x 128 pixels resolution
- Sampling rate of 128 samples/cycle
- 5 mA to 10 A measurement current, 20 to 400 VAC 45 to 65 Hz between phase and neutral, 20 to 690 VAC 45 to 65 Hz between phases measurement voltage
- 4 digital input, 2 digital output
- Class 0.2S (active energy according to IEC 62053-22) accuracy class
- Modbus RTU and ASCII 2 wires: 9.6, 19.2 and 38.4 kbauds, even/odd or none, insulation: 2500 VAC, JBUS, Modbus TCP/IP: 10/100 Mbit/s, insulation: 2500 VAC, Ethernet Modbus, TCP/IP daisy chain, BACnet IP communication port protocol
- 1.1 MB memory capacity, flush mounted
- IP52 (front) conforming to IEC 60529, IP30 (body) conforming to IEC 60529 IP degree of protection
- 5 to 95% 122 deg F relative humidity, 2 pollution degree, 9842.52 ft operating altitude
- -13 to 158 deg F ambient air temperature for operation, -40 to 185 deg F ambient air temperature for storage
- +/-0.05% frequency, +/-0.2% active energy, +/-1% reactive energy, +/-0.2% active power, +/-0.1% voltage, +/-0.05% power factor, +/-0.15 deg C current
- UL 61010-1|IEC 62053-24|CE Certified|IEC 61010-1|cULus Listed|UL 61010-1|BTL|IEC 60529|IEC 61557-12|IEC 62053-22|EN 50470-1|EN 50470-3
