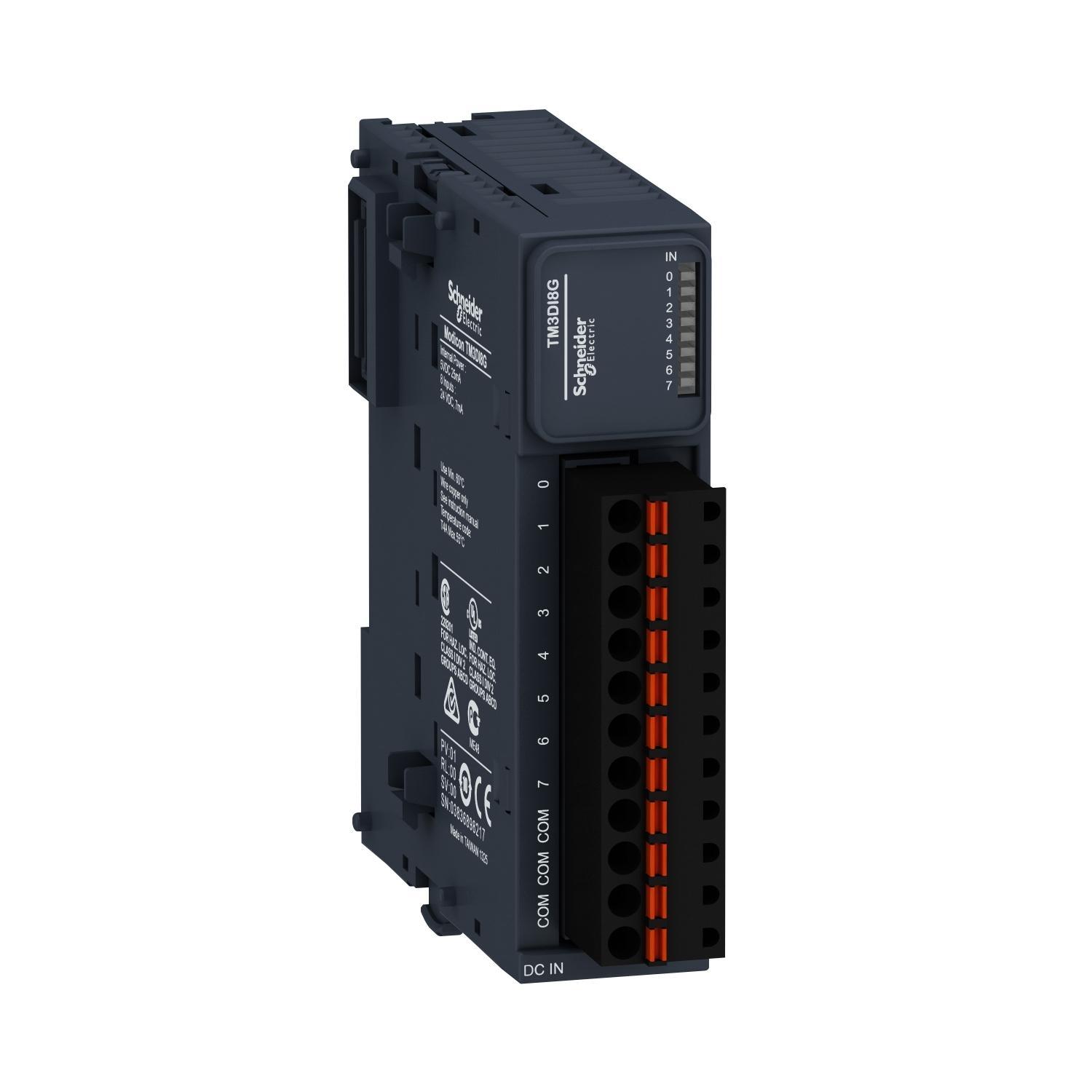

Schneider Electric Modicon® TM3 TM3DI8G Discrete Input Module, 24/5 V DC, 7/24 mA, 8 Inputs
Sku #60648061137
MFG #TM3DI8G
Attributes
| Voltage Rating: | 24/5 V DC |
| Number of Inputs: | 8 |
| Terminal Type: | Spring |
| Amperage Rating: | 7/24 mA |
| Impedance: | 3.4 kOhm |
| Temperature Rating: | -10 to 55 deg C Vertical Installation/-10 to 35 deg C Horizontal Installation |
- Industrial Application
- Designed with a simple interlocking assembly mechanism
- Unshielded cable
- 1 LED per channel (green) for input status local signaling
- Wide range of operating temperature from 14F to 131F
- RoHS Compliant|REACH Compliant|C-Tick.1 Certified|cULus Listed|EN/IEC 61010-2-201|EN/IEC 61131-2|CE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Schneider ElectricSchneider Electric Modicon® TM3 TM3DI8G Discrete Input Module, 24/5 V DC, 7/24 mA, 8 Inputs
SKU #60648061137
MFG #TM3DI8G
