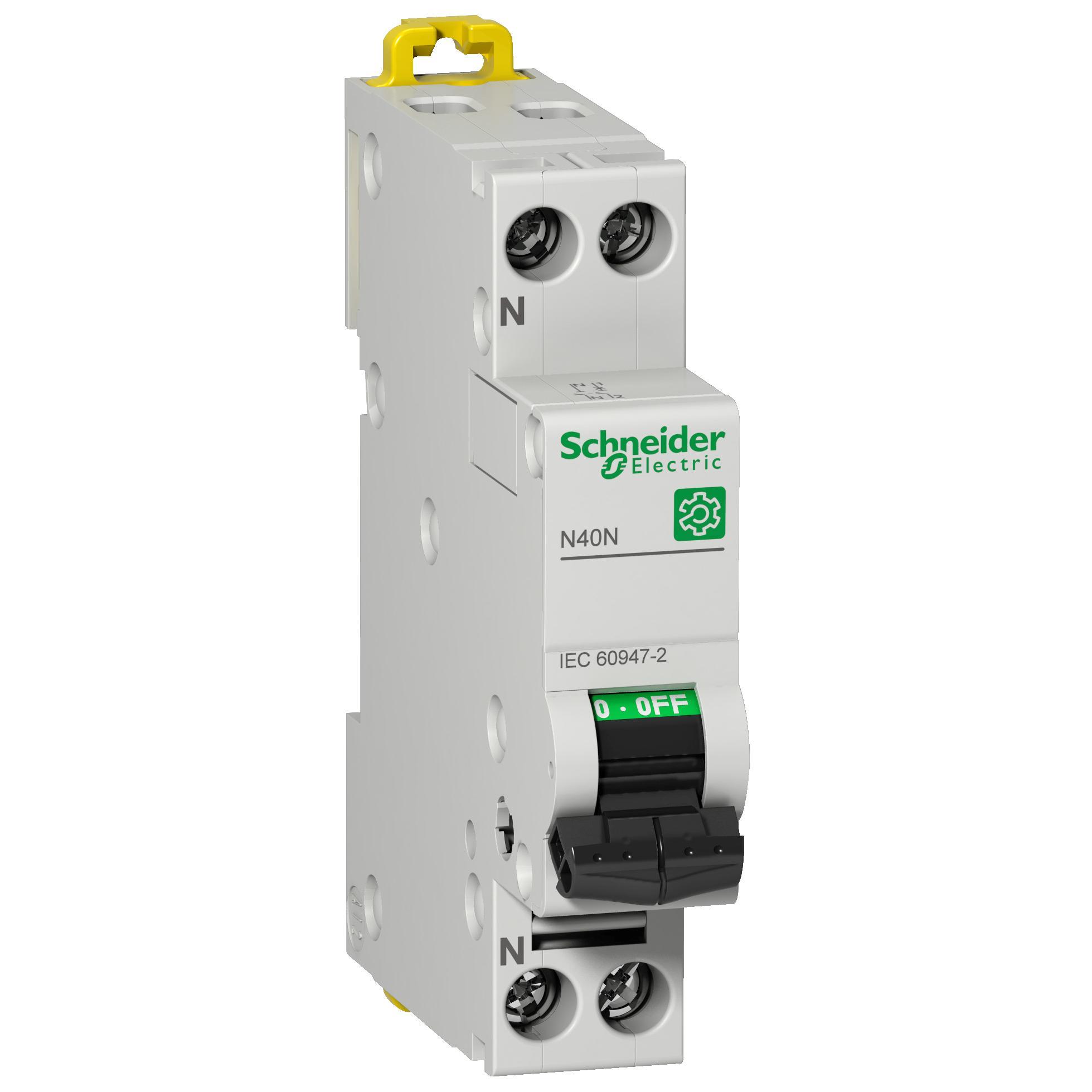

Schneider Electric M9P22603 N40N Series Miniature Circuit-Breaker, 240 V AC, 3.0 A, 10 kA interrupt, 1 poles, Thermal Magnetic trip
Sku #60648057223
MFG #M9P22603
Attributes
| Type: | Miniature Circuit-Breaker |
| Voltage Rating: | 240 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | N40N Series |
| Amperage Rating: | 3.0 A |
| Interrupt Rating: | 10 kA |
- Multi 9 is a range of DIN rail modular devices, a solution offering great performance
- Multi 9 range is a Schneider Electric global offer dedicated to equipment manufacturers (OEMs), meeting all global standards for industry applications
- Designed to meet your needs for all types of machines and offering a wide range of modular devices, it provides protection, signaling functions, and accessories
- Small footprint to reduce your panel size, cost effective, less commercial references
- 2 9 mm pitches
- 1 number of protected poles
- Left neutral position
- AC network type
- C curve code
- Yes conforming to EN/IEC 60947-2 suitability for isolation
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz ics rated service breaking capacity
- 3 conforming to EN/IEC 60947-2 limitation class
- 500 V AC 50/60 Hz EN/IEC 60947-2 ui rated insulation voltage
- 4 kVEN/IEC 60947-2 uimp rated impulse withstand voltage
- With contact position indicator
- 20000 cycles mechanical durability
- Padlockable provision for padlocking
- 0.51 in (13 mm) top or bottom wire stripping length
- Separate block earth-leakage protection
- 2 conforming to IEC 60068-1 tropicalisation
- Distribution
- EN/IEC 60947-2
