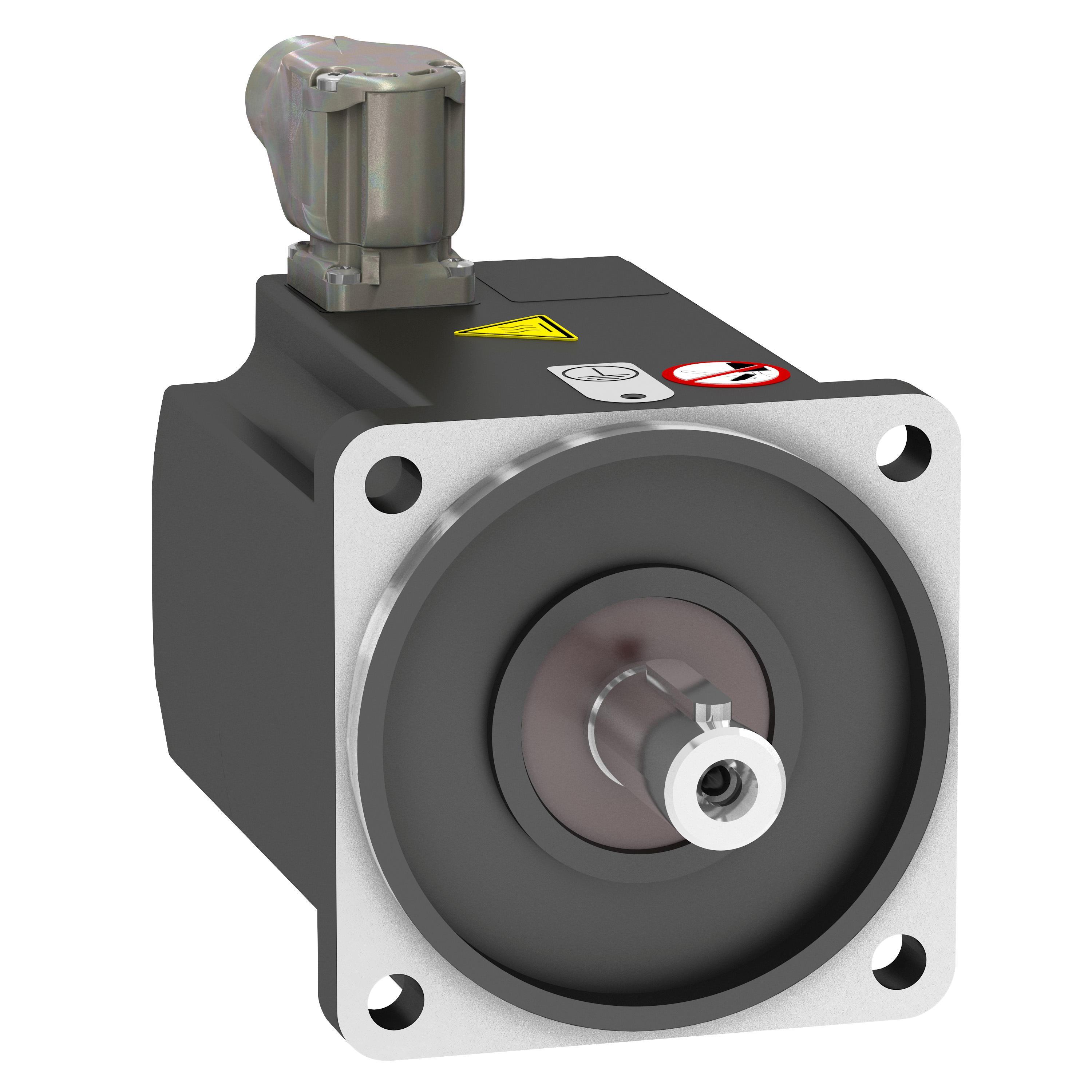

Schneider Electric BMP1002R3NA2A, 230 V, 3000 rpm speed
Sku #60648056445
MFG #BMP1002R3NA2A
Attributes
| Voltage Rating: | 230 V |
| Enclosure Type: | IP65/IP67 |
| Country of Origin: | DE |
| Speed: | 3000 rpm |
| Torque Rating: | 3.5 N-m |
- Improved machine performance
- Extended machine availability
- Reduced total machine cost
- Advanced connectivity via Ethernet (Modbus TCP, Ethernet/IP, Profinet, EtherCAT) or serial (Modbus RTU, CANopen, Profibus DP, DeviceNet) based networks
- Proven functionality in harsh environments operating in ambient temperatures up to 60 deg C and class 3C3 coated printed circuit boards to protect against corrosion
- The Altivar 320 drive meets the needs of simple or advanced machines from 0.25 Hp to 20 Hp
- 1100 W ATV32 1.1 kW 200 V single phase, 1500 W ATV32 1.5 kW 200 V single phase, 1100 W ATV320 1.1 kW 200 V single phase, 1500 W ATV320 1.5 kW 200 V single phase nominal output power
- Without holding brake
- 250 Hz ATV32 1.1 kW 200 V single phase, 250 Hz ATV32 1.5 kW 200 V single phase, 250 Hz ATV320 1.1 kW 200 V single phase, 250 Hz ATV320 1.5 kW 200 V single phase nominal operating frequency
- 25 Hz ATV32 1.1 kW 200 V single phase, 25 Hz ATV32 1.5 kW 200 V single phase, 25 Hz ATV320 1.1 kW 200 V single phase, 25 Hz ATV320 1.5 kW 200 V single phase minimum operating frequency
- 0.24 in (6 mm) key width
- 3.94 in (100 mm) motor flange size
- 6.28 kg.cm2 rotor inertia
- 0.53 Ohm 104 deg F (40 deg C) stator resistance
- 2.18 mH for q-axis winding 104 deg F (40 deg C)1.89 mH for d-axis winding 104 deg F (40 deg C) stator inductance
- 990 N 1000 rpm, 790 N 2000 rpm, 690 N 3000 rpm, 620 N 4000 rpm maximum radial force fr
- 0.2 x Fr maximum axial force fa
- 3.74 in (95 mm) centring collar diameter
- 0.14 in (3.5 mm) centring collar depth
