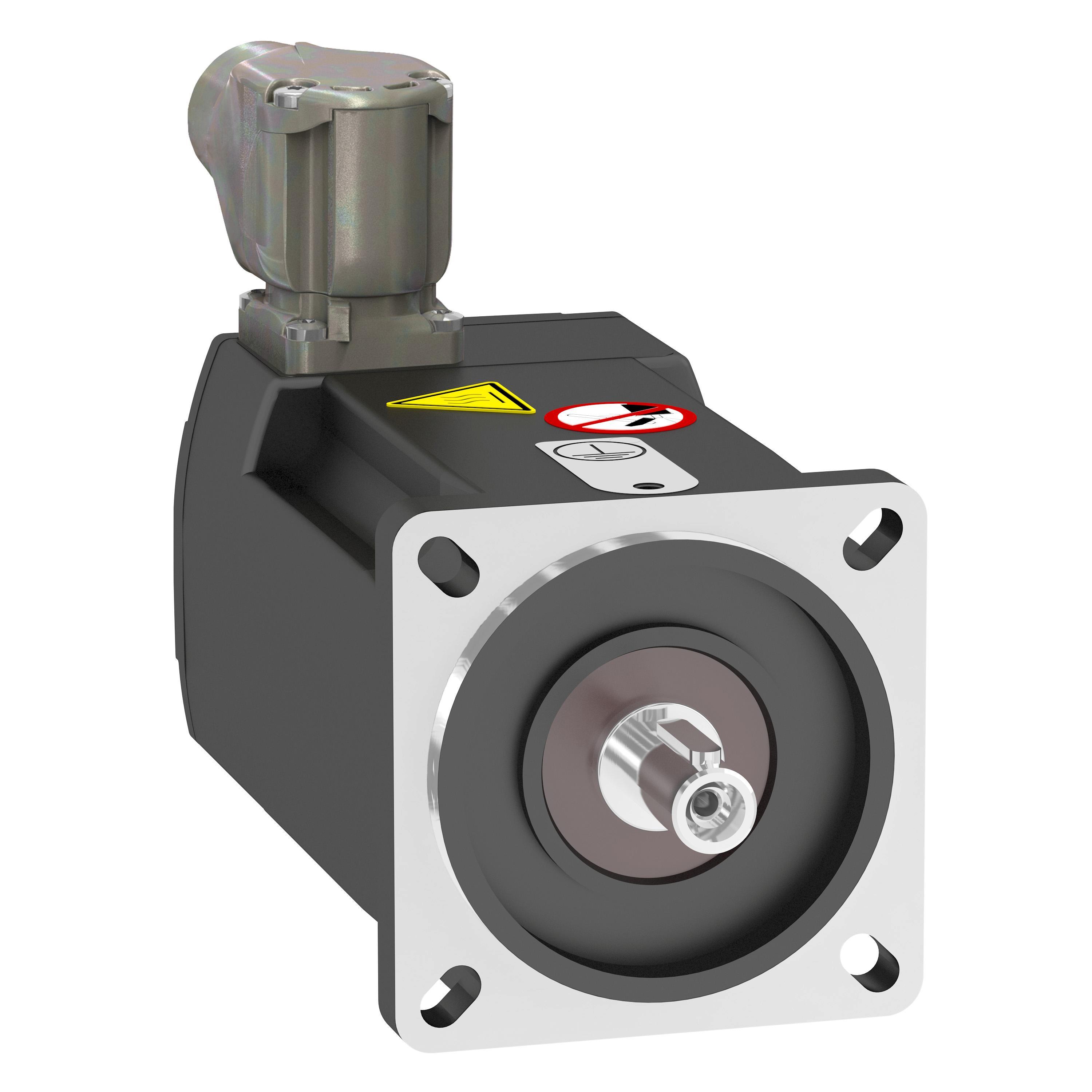

Schneider Electric BMP0702F3NA2A, 480 V, 3000 rpm speed
Sku #60648056440
MFG #BMP0702F3NA2A
Attributes
| Voltage Rating: | 480 V |
| Enclosure Type: | IP65/IP67 |
| Country of Origin: | US |
| Speed: | 3000 rpm |
| Torque Rating: | 1.75 N-m |
- Improved machine performance
- Extended machine availability
- Reduced total machine cost
- Advanced connectivity via Ethernet (Modbus TCP, Ethernet/IP, Profinet, EtherCAT) or serial (Modbus RTU, CANopen, Profibus DP, DeviceNet) based networks
- Proven functionality in harsh environments operating in ambient temperatures up to 60 deg C and class 3C3 coated printed circuit boards to protect against corrosion
- The Altivar 320 drive meets the needs of simple or advanced machines from 0.25 Hp to 20 Hp
- 550 W ATV32 0.55 kW 400 V three phase550 W ATV320 0.55 kW 400 V three phase nominal output power
- Without holding brake
- 250 Hz ATV32 0.55 kW 400 V three phase250 Hz ATV320 0.55 kW 400 V three phase nominal operating frequency
- 25 Hz ATV32 0.55 kW 400 V three phase25 Hz ATV320 0.55 kW 400 V three phase minimum operating frequency
- 0.16 in (4 mm) key width
- 2.76 in (70 mm) motor flange size
- 1.13 kg.cm2 rotor inertia
- 6.96 Ohm 104 deg F (40 deg C) stator resistance
- 20.7 mH for q-axis winding 104 deg F (40 deg C)20.7 mH for d-axis winding 104 deg F (40 deg C) stator inductance
- 710 N 1000 rpm, 560 N 2000 rpm, 490 N 3000 rpm, 450 N 4000 rpm maximum radial force fr
- 0.2 x Fr maximum axial force fa
- 2.36 in (60 mm) centring collar diameter
- 0.10 in (2.5 mm) centring collar depth
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
