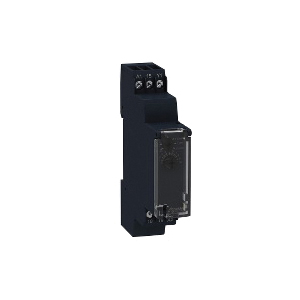

Square D™ Zelio™ RE17RAMU Modular Timing Relay, 0.1 s to 100 hr Setting, 10 V DC, 1CO 1 Form C Contact
Sku #60648055267
MFG #RE17RAMU
Attributes
| Series: | RE17R |
| Voltage Rating: | 10 V DC |
| Contact Form: | 1CO 1 Form C |
| Operation Mode: | On-Delay |
| Amperage Rating: | 8 A |
| Time Setting: | 0.1 s to 100 hr |
- Multifunction, dual function or single function
- Multi-range (7 selectable ranges)
- Multi-voltage
- Solid state or relay output options
- Cadmium free contacts material
- Selector switch on front panel control type
- 50/60 Hz (+/-5%) supply frequency
- 5.31 to 8.85 in-lbf (0.6 to 1 Nm) conforming to IEC 60947-1 tightening torque
- Self-extinguishing housing material
- +/-0.5% conforming to IEC 61812-1 repeat accuracy
- 100 MOhm at 500 VDC conforming to IEC 60664-1 insulation resistance
- +/-0.05% temperature drift
- +/-0.2% voltage drift
- 100 ms with load in parallel typical 30 ms typical Impulse duration
- <=32 VA at 240 VAC power consumption in voltage
- <=0.6 W at 24 VDC power consumption
- 250 VAC maximum switching voltage
- <=2000 VA breaking capacity
- 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 dielectric strength
- <100 ms delay response
- For require a lot of control in a small foot print
- CE Certified|CSA Certified|cULus Listed
