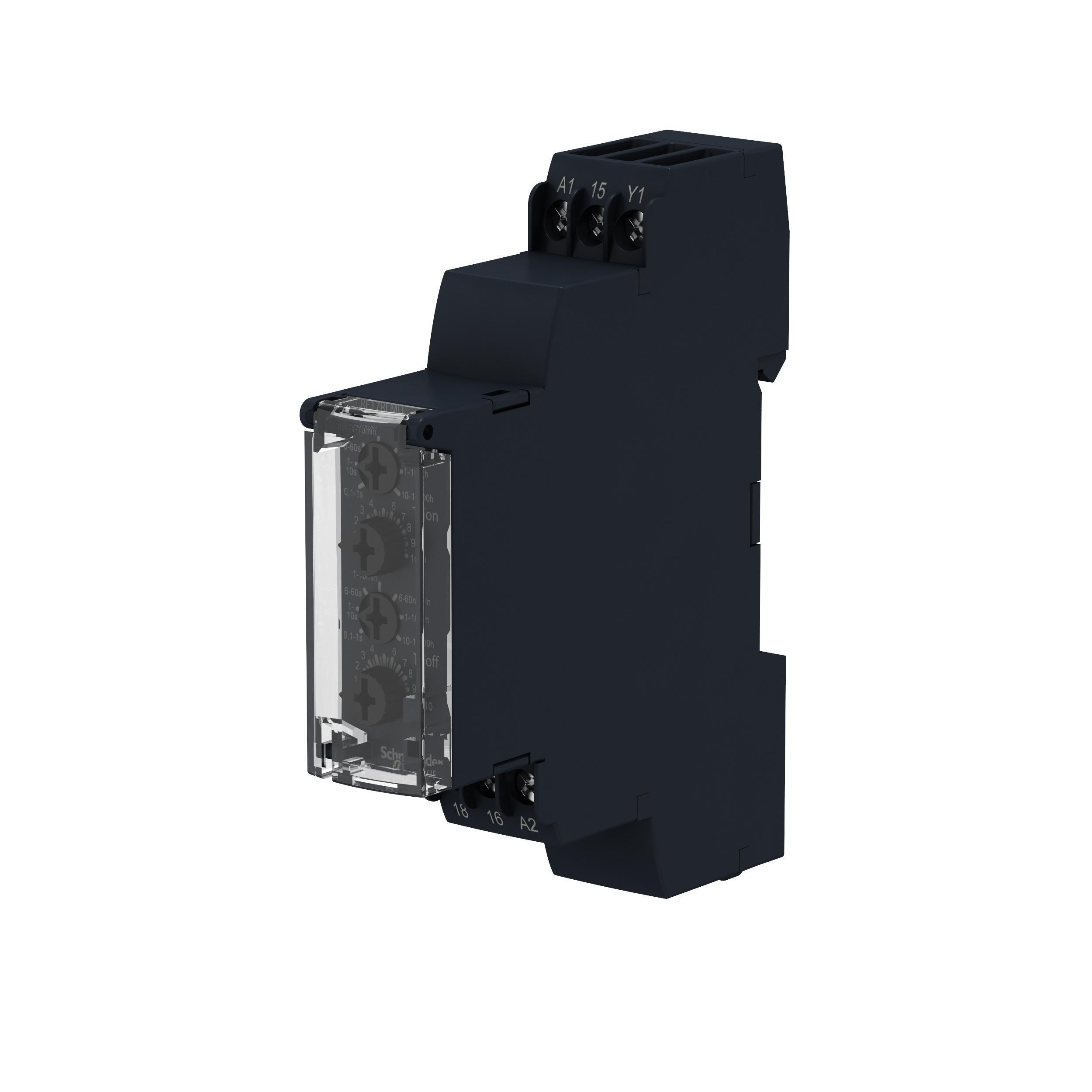

Schneider Electric Square D™ Zelio™ RE17LLBM Modular Timing Relay With Solid State Output, 0.1 sec to 100 hr Setting, 24 to 240 V AC, 1 Form C SPDT Contact, 1 Poles
Sku #60648055265
MFG #RE17LLBM
Attributes
| Operation Mode: | Asymmetrical Flasher |
| Amperage Rating: | 0.7 A |
| Contact Form: | 1 Form C SPDT |
| Voltage Rating: | 24 to 240 V AC |
| Number of Poles: | 1 |
| Time Setting: | 0.1 sec to 100 hr |
- Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
- Wide range of time delay for adjustment - from 0.01 s to 999 hr
- Unprecedented accuracy, predictive maintenance, and superior security
- Flexible choice of screw or spring connection terminals for wiring
- https://youtu.be/tBG9lxwItqk?si=WY7Wu90IbnZaQbOJ
- CE Certified|CSA Certified|cULus Listed|ECCN: EAR99|EC-EN 61000-6-1|EC-EN 61000-6-3|EN 61000-6-2|IEC 61812-1|EN 61000-6-4|GL|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-4|3|IEC 61000-4-5|IEC 61000-4-5|3|IEC 61000-4-6|IEC 61000-4-11|IEC 61000-4-11|EN 55022|Green Premium™|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
