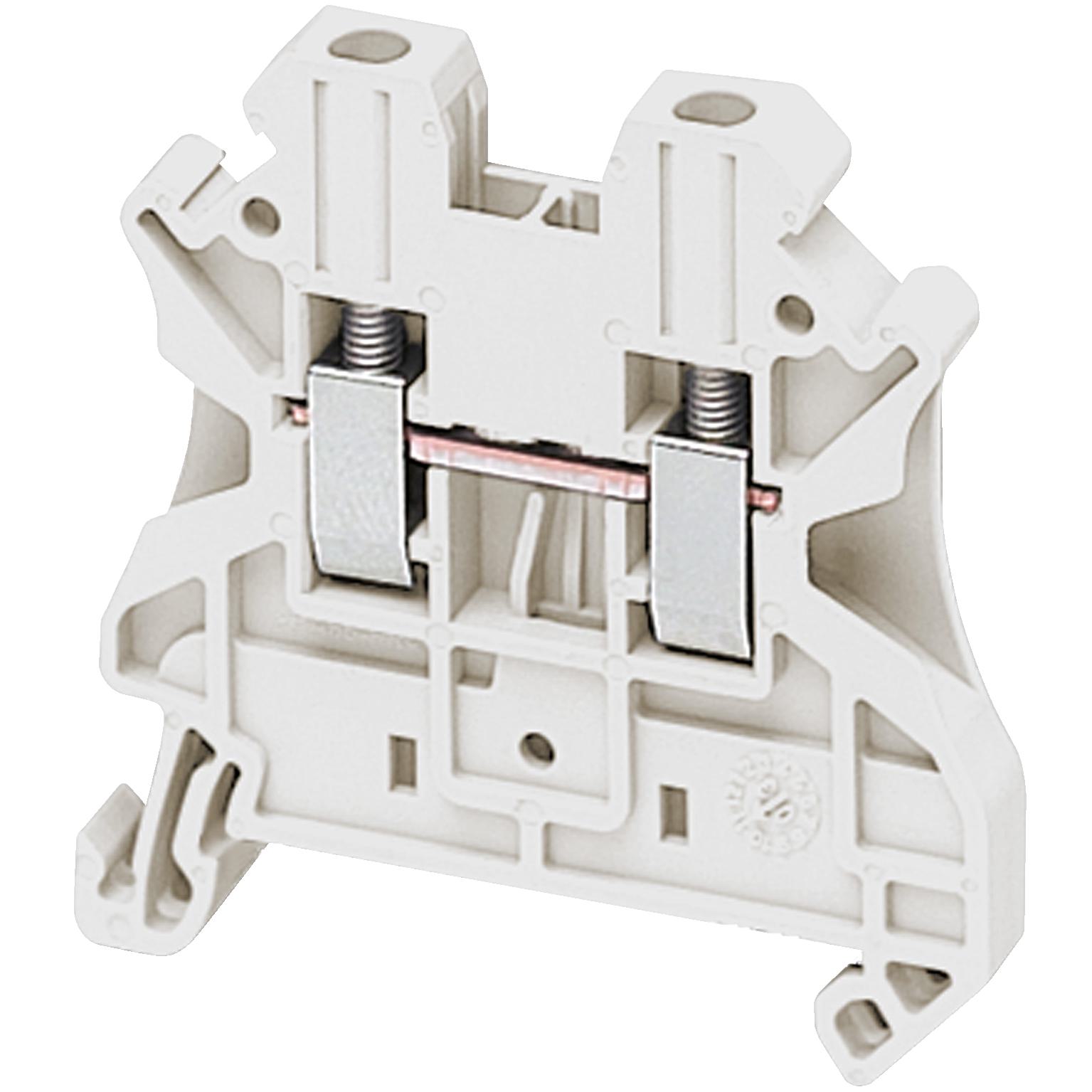

Schneider Electric Square D™ Linergy™ TR NSYTRV22WH 1-Level 2-Terminal Feed-Thru Terminal Block, 1 kV, 24 A, 26 to 12 AWG Solid/Stranded Wire, 1 Poles, DIN Rail Mount
Sku #60648053183
MFG #NSYTRV22WH
Attributes
| Type: | 1-Level 2-Terminal |
| Voltage Rating: | 1 kV |
| Number of Poles: | 1 |
| Series: | NSYTRV |
| Amperage Rating: | 24 A |
| Wire Size: | 26 to 12 AWG Solid/Stranded |
- It belongs to linergy passthrough terminal block with 2.5 mm nominal cross section
- Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
- Releasing pressure on the sides stops the flow of cable ends
- Facilitates storage by avoiding mixing cable ends of different sizes
- Identifies the cross section of cable ends it contains
- For Prisma G/Prisma P/Prisma PH panel building system, Prisma pack wall-mounting enclosure, spacial enclosure, Kaedra weatherproof enclosure, Pragma modular enclosure and TeSys™ motor controls
- (2) Test Point
- V0 0.8 mm UL 94
- 18 months
