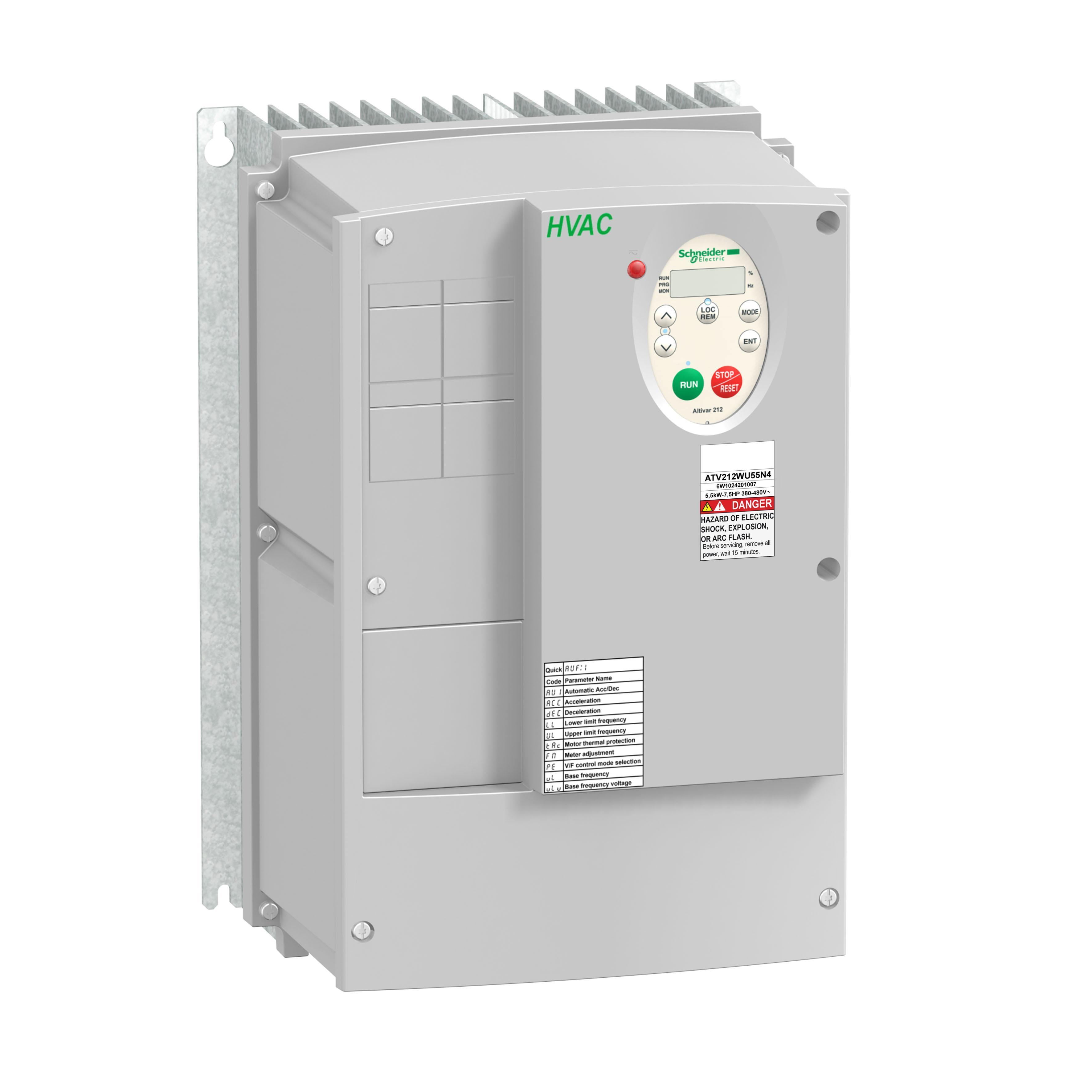

Schneider Electric ATV212WU75N4C ATV212 Series Variable Speed Drive, 380 to 480 V, 11.7 A, 10 hp, 9.06 in w x 8.19 in d
Sku #60648032271
MFG #ATV212WU75N4C
Attributes
| Type: | Variable Speed Drive |
| Voltage Rating: | 380 to 480 V |
| Horsepower: | 10 hp |
| Series: | ATV212 Series |
| Amperage Rating: | 11.7 A |
| Width: | 9.06 in |
- This economical drive reduces energy costs by adjusting motor speed to the required flow of air or fluids
- It can also lower your installation costs by eliminating throttling values, dampers or inlet guide vanes typically used to control flow in HVAC applications
- In addition, building occupant comfort is efficiently controlled as heating and cooling demand loads vary
- Small size saves valuable panel space
- Includes a full complement of integrated building automation networks
- Optional remote mount English text keypad speeds troubleshooting
- Reduced harmonic technology eliminates the need for line reactors and reduces both wire size and upstream overcurrent protection devices, further saving panel space and lowering component cost
- Class C1 EMC filter integrated emc filter
- LonWorksBACnetModbusAPOGEE FLNMETASYS N2 communication port protocol
- 55 dB 86/188/EEC noise level
- With heat sink assembly style
- 12.2 kVA 380 V apparent power
- 22 kA prospective line isc
- 16 A 380 V16 A 460 V continuous output current
- 0.5 to 200 Hz speed drive output frequency
- 1 to 10 speed range
- +/- 10 % of nominal slip 0.2 Tn to Tn speed accuracy
- +/- 15 % torque accuracy
- 120 % of nominal motor torque +/- 10 % 60 s transient overtorque
- NOM 117C-tickCSA|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 61800-3 environments 1 category C1IEC 61800-3 environments 2 category C2IEC 61800-3 environments 2 category C1EN 61800-3 environments 1 category C1EN 61800-3 environments 2 category C3EN 55011 group 1 class BEN 61800-3 category C1EN 61800-3 environments 2 category C1IEC 61800-3 environments 2 category C3IEC 61800-3 environments 1 category C2EN 61800-3 environments 1 category C2IEC 61800-3EN 61800-3 environments 1 category C3EN 61800-3EN 61800-3 environments 2 category C2IEC 61800-3 environments 1 category C3EN 61800-5-1IEC 61800-3 category C1IEC 61800-5-1|IP55
- Asynchronous motors,Pumps and fans in HVAC
