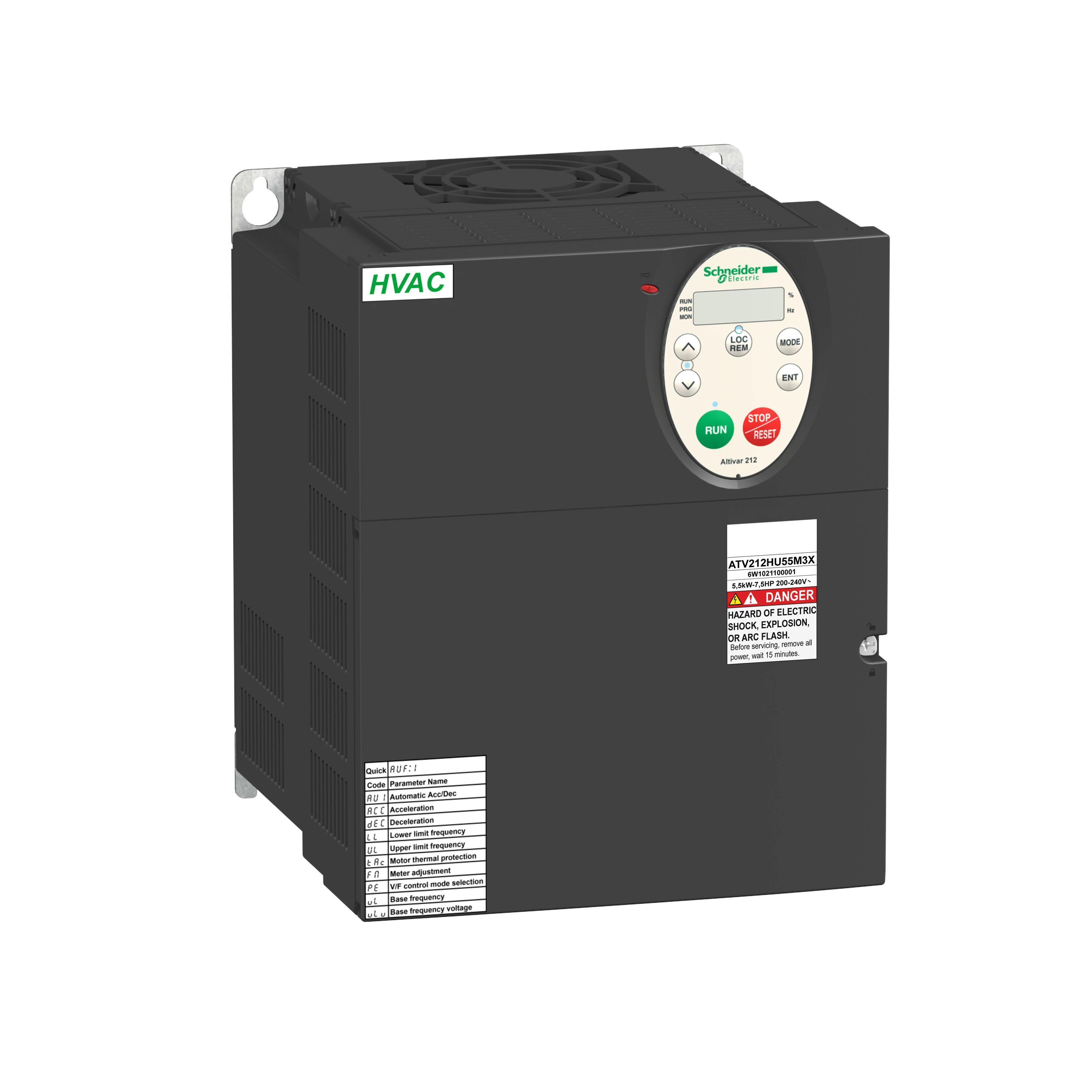

Schneider Electric Altivar® 212 ATV212HU55M3X 3-Phase AC Variable Speed Drive With Heat Sink, 208/240 VAC, 24.2 A, 7-1/2 hp, 180 mm W x 170 mm D
Sku #60648032237
MFG #ATV212HU55M3X
Attributes
| Type: | 3-Phase |
| Amperage Rating: | 24.2 A |
| Width: | 180 mm |
| Voltage Rating: | 208/240 V AC |
| Horsepower: | 7-1/2 hp |
| Depth: | 170 mm |
- Ventilation, Pumping, Air Conditioning, Asynchronous Motor and Fans in HVAC Applications
- RoHS Compliant|REACH Compliant|Green Premium|WEEE Compliant|UL Listed|CE Certified|UL 1995 Plenum Rated|AHRI Certified|CSA Certified|C-Tick.1 Certified|NOM 117|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- 24.2 A at 230 VAC
- Lower maintenance costs reduce the mechanical stress on belts, piping and ductwork and eliminate valve or inlet guide vane maintenance
- Reduced harmonics embedded reduced harmonic technology is equivalent to installing a 3% line reactor saving panel space and reducing component and wiring costs
- Reduce installation costs embedded technology reduces input currents which allows a cost reduction in wire size, short circuit protection devices and enclosure size
- Improve operating efficiency embedded technology reduces input currents which improves operating efficiency by 10% in many installations
- Achieve 12 to 24 month payback for AC drives installed on typical pump or fan applications
- 2.5 sq-mm/14 AWG VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal, 16 sq-mm/10 AWG L1/R, L2/S, L3/T terminal
- Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 VDC +/- 5 %, <10 A overload and short circuit protection, internal supply 24 VDC 21 to 27 V, <200 A overload and short circuit protection
- Overheating protection drive, thermal power stage drive, short circuit between motor phases drive, input phase breaks drive, overcurrent between output phases and earth drive, overvoltage on the DC bus drive, break on the control circuit drive, against exceeding limit speed drive, line supply overvoltage and undervoltage drive, line supply undervoltage drive
- Voltage/frequency ratio - 5 points, 2 points, energy saving, quadratic U/f, automatic IR compensation (U/f + automatic Uo), flux vector control without sensor, standard
