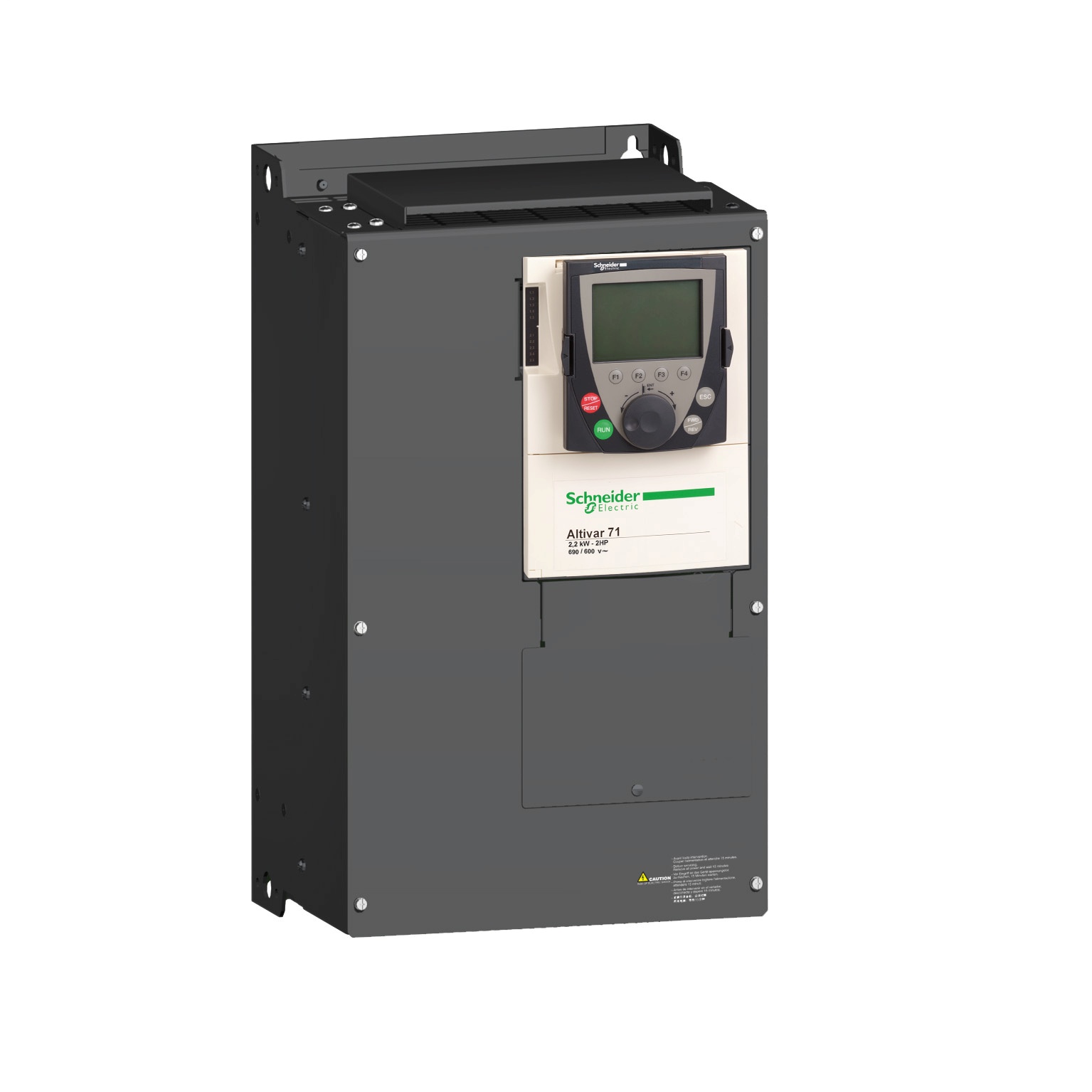

Schneider Electric ATV71HU75S6X Variable Speed Drive, 425 to 660 V, 13.5 A, 10 hp, 8.27 in w x 8.39 in d
Sku #60648028340
MFG #ATV71HU75S6X
Attributes
| Type: | Variable Speed Drive |
| Amperage Rating: | 13.5 A |
| Width: | 8.27 in |
| Voltage Rating: | 425 to 660 V |
| Horsepower: | 10 hp |
| Depth: | 8.39 in |
- IEC 60721-3-3 class 3C1UL Type 1EN/IEC 61800-5-1EN/IEC 61800-3 environment 2EN/IEC 61800-3 environment 1EN 55011 group 1 class BIEC 60721-3-3 class 3S2EN/IEC 61800-3|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|GOST|UL Listed|C-tick|CSA|NOM 117
- Speed regulation by flux vector control with or without sensor
- Speed range: from 1 to 1 000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode
- Graphic terminal: plain text, navigation button, configurable function keys, "Simply Start" menu
- Protection of motor and of drive
- Integrated EMC filter class A
- Integrated Modbus and CANopen
- I/O extension cards, interface cards for encoder
- Communication cards: Fipio, Ethernet, Modbus Plus, PROFIBUS DP, DeviceNet, Uni-Telway, INTERBUS
- Controller Inside programmable card
- Unique range up to 700 HP, exceptional performance, advanced functions
- Without EMC filter emc filter
- CANopenModbus communication port protocol
- 60.2 dB 86/188/EEC noise level
- 98.43 ft (30 m) shielded cable1644 ft (50 m) unshielded cable maximum motor cable length
- With heat sink assembly style
- Built-in unit with forced cooling variant
- 22 kA 3 phase prospective line isc
- 0.1 to 500 Hz output frequency
- Voltage/frequency ratio - Energy Saving, quadratic U/fFlux vector control with sensor, standardFlux vector control without sensor, standardVoltage/frequency ratio, 5 pointsFlux vector control without sensor, 2 pointsFlux vector control without sensor, ENA (energy Adaptation) systemVoltage/frequency ratio, 2 points asynchronous motor control profile
