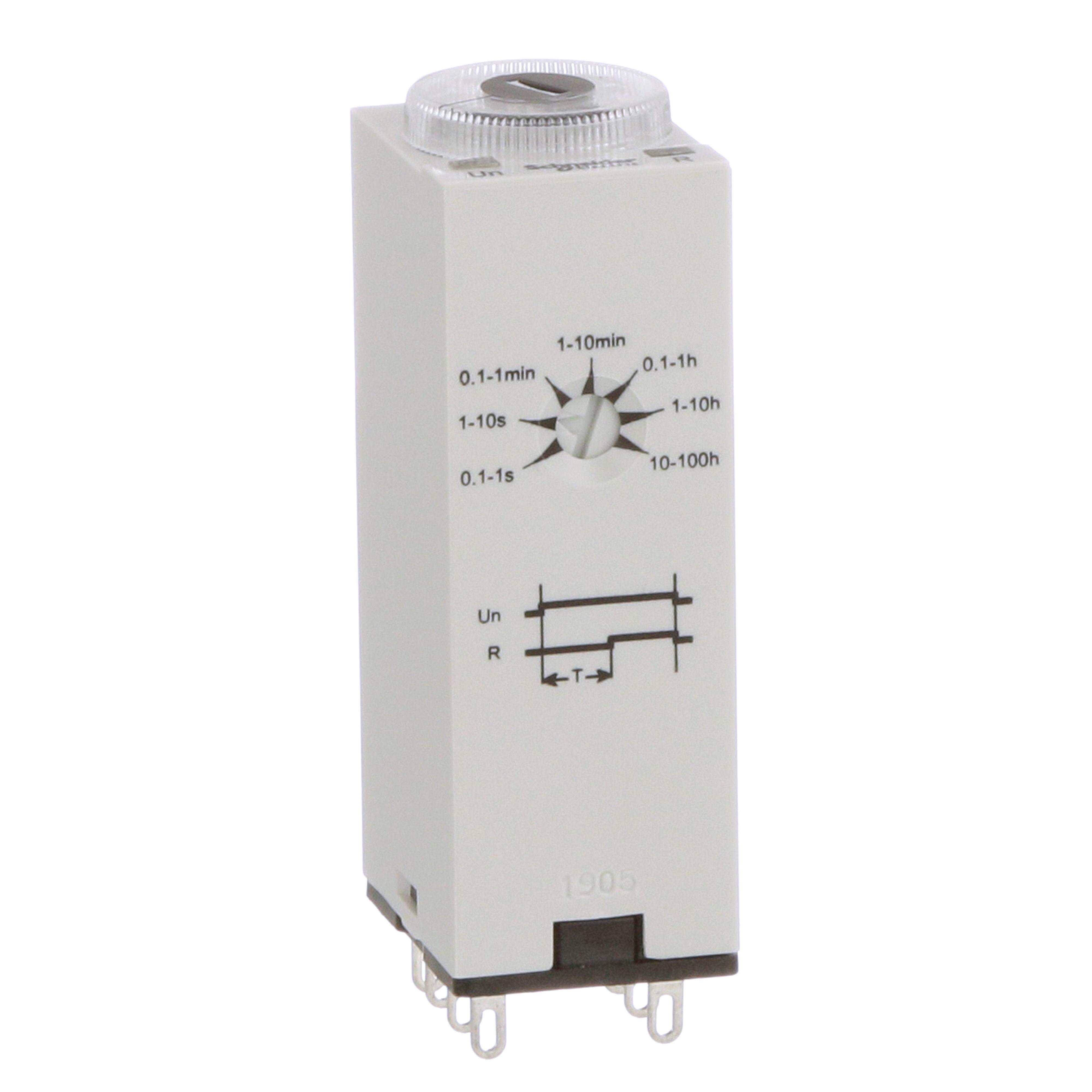

Schneider Electric TDR782XBXA-24D TDR Time delay relay, 100 ms to 100 hours setting, 24 V AC, 2 Form C DPDT contact
Sku #60648028300
MFG #TDR782XBXA-24D
Attributes
| Type: | Time delay relay |
| Operation Mode: | On-Delay |
| Amperage Rating: | 5 A |
| Series: | TDR |
| Voltage Rating: | 24 V AC |
| Contact Form: | 2 Form C DPDT |
- Multifunction
- Wide voltage range from 12 to 240 V
- Single timing range or multi-range from 100 ms to 10 days
- Conforms to international standards including UL, CSA, RoHS and CE
- Silver alloy contacts contacts material
- A time delay type
- 100 ms to 1 s1 to 10 s0.1 to 1 min1 to 10 min0.1 to 1 h1 to 10 h10 to 100 h time delay range
- +/- 05 %/ deg C temperature drift
- 50 ms maximum reset time
- 10000000 cycles mechanical durability
- 1.76 oz (50 g) product weight
- 2000 V between input and output dielectric strength
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For tight spaces and allows easy installation, For fine tune of time settings, For specific applications
