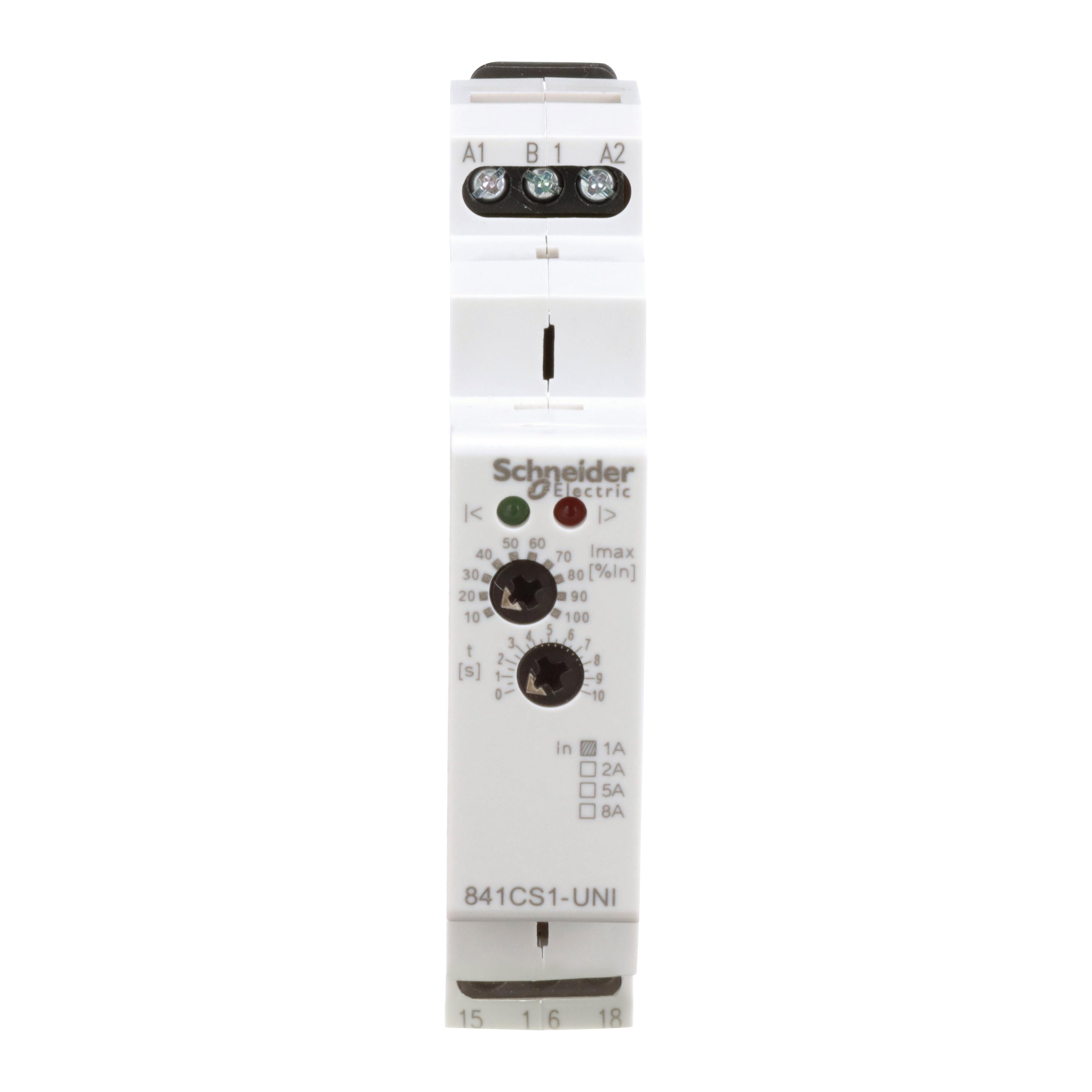

Schneider Electric 841CS1-UNI 841 Series, 12 V, 15 A
Sku #60648028207
MFG #841CS1-UNI
Attributes
| Series: | 841 Series |
| Amperage Rating: | 15 A |
| Contact Material: | Silver Alloy |
| Voltage Rating: | 12 V |
| Sensor Type: | Current sensor |
| Display Type: | LED |
- Diagnostic test feature to checks the downstream circuit
- Dial-pointer LEDs to Increases programming visibility
- True RMS detection to eliminates errors and mis operation
- Positive logic output to protects the system during a power loss
- Multiple timing and detection functions to Improve equipment operation safely manage undesired conditions
- AgNi contacts material
- Adjustable time delay type
- 0 to 10 s time delay range
- 0.1 to 1 A tripping threshold
- 150 ms reset time
- 30000000 cycles mechanical durability
- 2.12 oz (60 g) product weight
- 4000 V between input and output dielectric strength
- With toxic heavy metal free
- For tight spaces, For precise sensing and monitoring the current of one circuit in 100mA to 1A range and switching to, For using in wide branches
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
