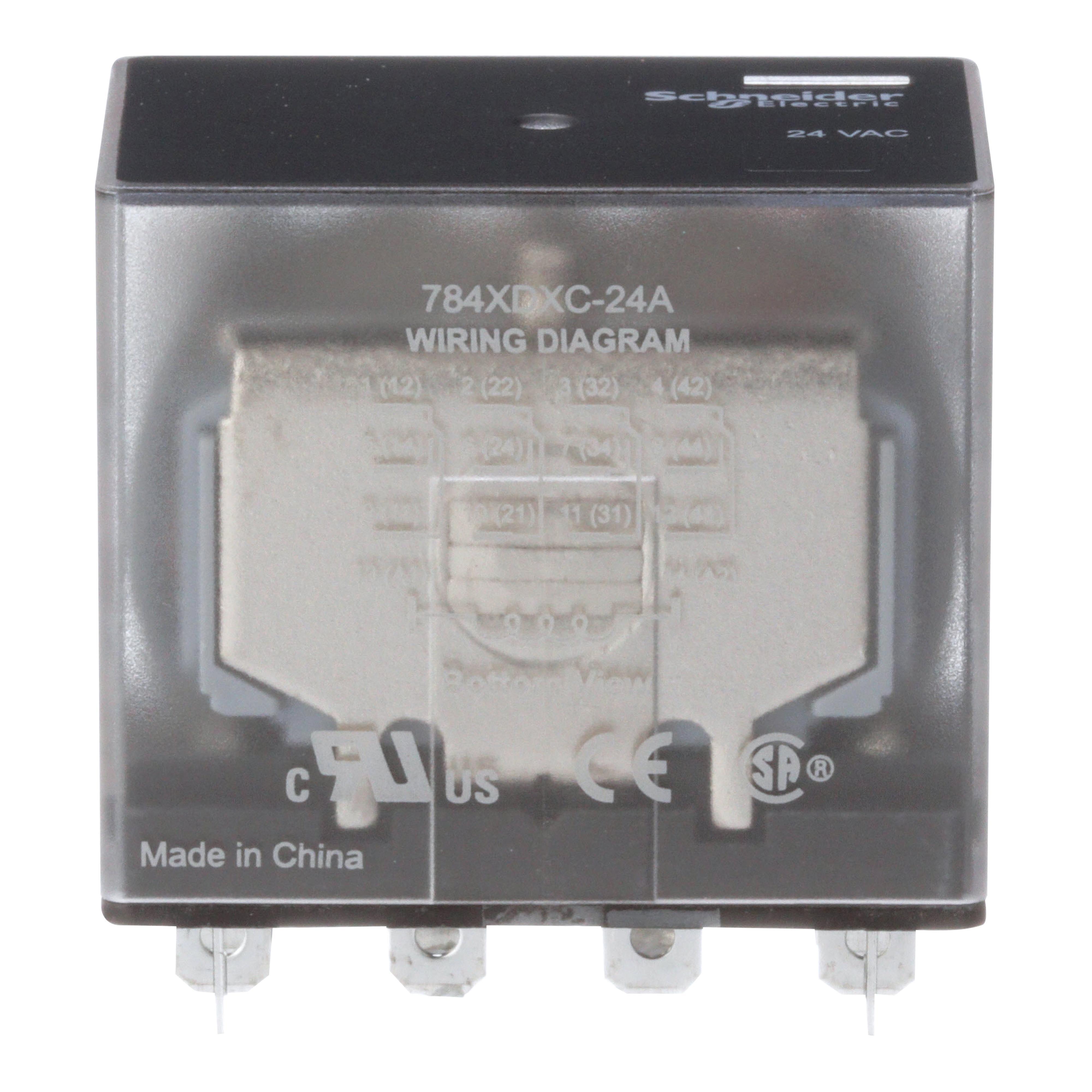

Schneider Electric 784XDXC-24A 784 Series Power Relay, 15 A, 4 Form C 4PDT contact, 24 V AC v coil
Sku #60648028124
MFG #784XDXC-24A
Attributes
| Type: | Power Relay |
| Amperage Rating: | 15 A |
| Coil Voltage: | 24 V AC |
| Series: | 784 Series |
| Power Rating: | 2.5 VAC |
| Contact Form: | 4 Form C 4PDT |
- Allows manual operation of relay (AC coils - red; DC coils - blue)
- LED indicator shows coil status
- Optional for full-feature or plain cover relays
- When activated, locks push-button and contacts in the powered position
- Flag indicator shows relay status in manual or powered condition
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Sockets available for most relays (with multiple options for some relays)
- Many plug-in relays feature a full range of contact ratings and a variety of covers and mounting options to meet a wide variety of applications
- Hermetically sealed relays also available
- Silver alloy, gold flashed contacts material
- 80 Ohm coil resistance
- 24 V AC input voltage
- >= 0.15 Uc AC>= 0.1 Uc DC drop-out voltage threshold
- 2.50 oz (71 g) product weight
- 20 ms operating20 ms tripping operating time
- 10000000 cycles mechanical durability
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For automation panels and controls
