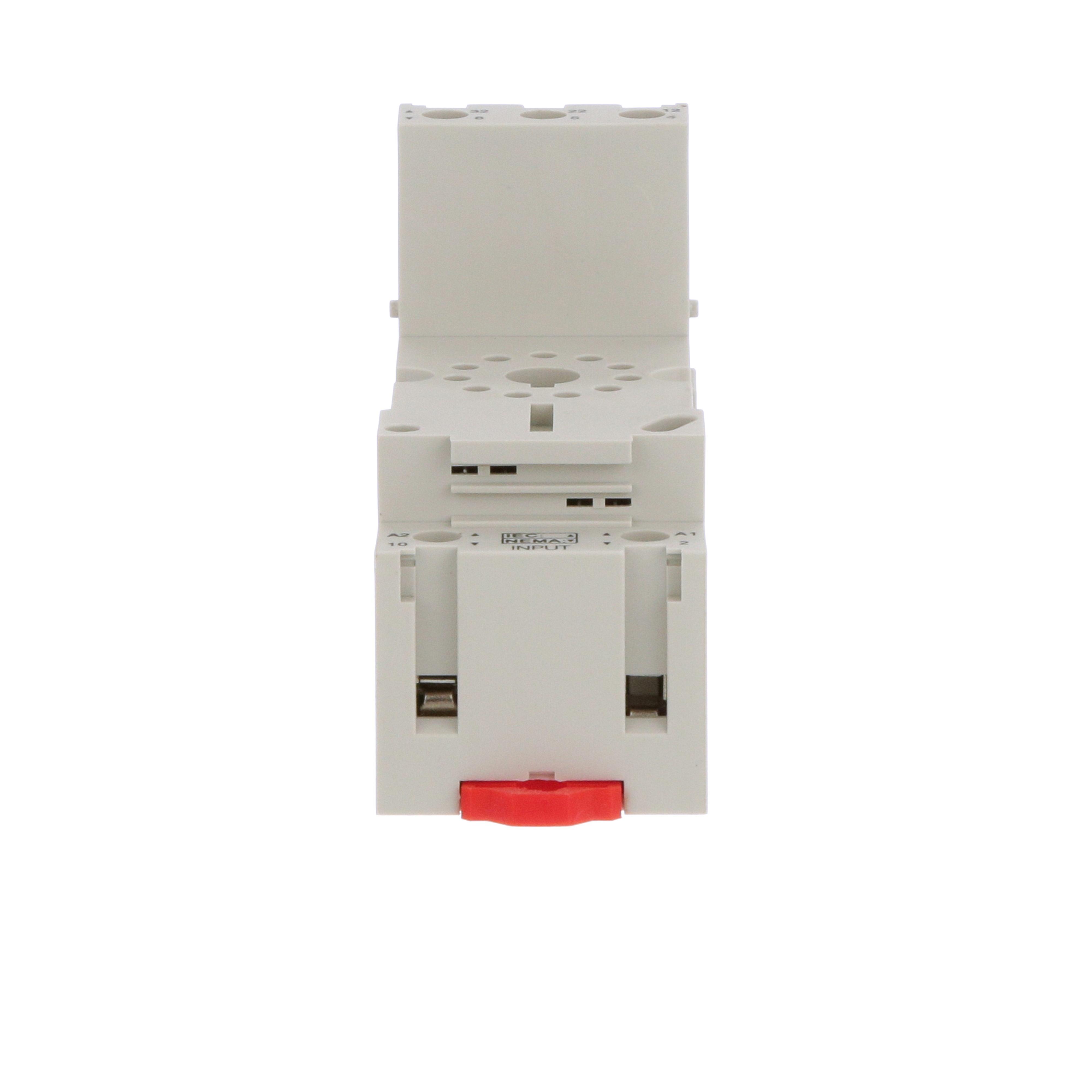

Schneider Electric 70-750EL11-1, 300 V, 16 A, 11 pin
Sku #60648027803
MFG #70-750EL11-1
Attributes
| Voltage Rating: | 300 V |
| Number of Pins: | 11 |
| Enclosure Type: | IP20 |
| Amperage Rating: | 16 A |
| Temperature Rating: | -40 to 131 deg F |
| Dimensions: | 1.42 in W x 2.24 in D |
- Allows manual operation of relay (AC coils - red; DC coils - blue)
- LED indicator shows coil status
- Optional for full-feature or plain cover relays
- When activated, locks push-button and contacts in the powered position
- Flag indicator shows relay status in manual or powered condition
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Sockets available for most relays (with multiple options for some relays)
- Many plug-in relays feature a full range of contact ratings and a variety of covers and mounting options to meet a wide variety of applications
- Hermetically sealed relays also available
- 11 number of terminals
- 300 V rated voltage
- Separate contact terminal arrangement
- By screw M3.5, M3.5 panelClip-on 35 mm DIN rail fixing mode
- 2.79 oz (79 g) product weight
- UL94-V0 flame retardance
- With toxic heavy metal free
- For 750/750H series relays with 3PDT configuration contacts rated 16A at 300V
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
