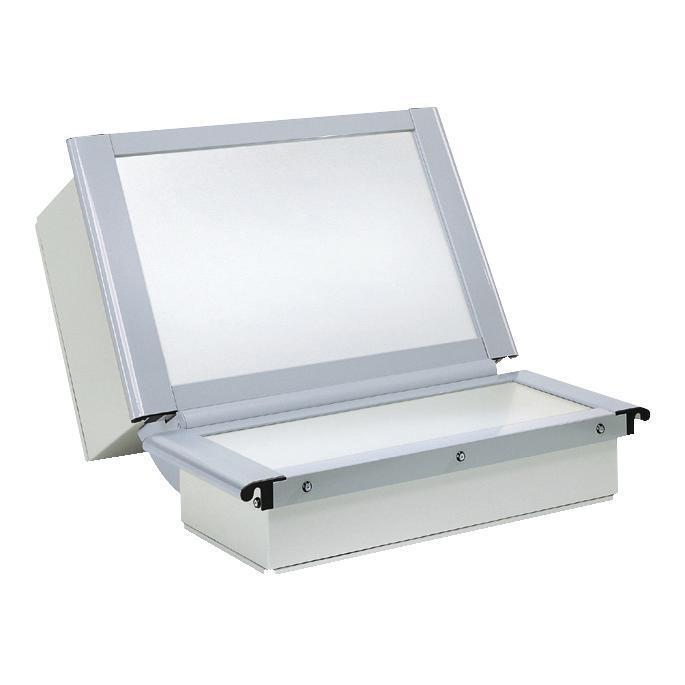

Schneider Electric NSYCMT2560110, steel/aluminium, Body Gray RAL 7035 /Front face and trim frame Gray RAL 7040
Sku #60648021320
MFG #NSYCMT2560110
Attributes
| Material: | steel/Aluminium |
| Color: | Body Gray RAL 7035)/Front face and trim frame Gray RAL 7040) |
| Country of Origin: | ES |
| Finish: | Epoxy-polyester powder |
| Dimensions: | 11.26 in H x 27.44 in W x 4.92 in D |
- Our man-machine dialogue offer comprises :control enclosures,a keyboard enclosure,an arm with fixed or rotating joint system,a wide range of accessories
- Strong IK 10, steel body, top panel reinforced by plate, thickness 3 mm extruded aluminium frame
- Watertight IP 54, polyurethane seal
- A steel body, textured epoxy-polyester paint finish, colour grey RAL 7035, with rear door opening to 120 deg , closure by double-bar lock
- The top panel is reinforced (3 mm) and drilled 54 or 87 mm (according to reference) to enable suspended enclosure mounting. an aluminium front face (thickness 2.5mm), protected on both sides by plastic film, for mounting of dialogue elements and a trim frame comprising 4 extruded aluminium profiles
- Design of these profiles takes account of the functionalities of accessory mounting , the ergonomics of enclosure operation and the aesthetics of the total unit, textured epoxy-polyester powder paint finish, colour grey RAL 7040
- IP 54 degree of protection
- IK 10 external mechanical impact resistance
- Paint finish RAL 703
- Multi-purpose anwendung
- Control enclosure mounting location
- By fixing element - on control enclosure fixing mode
- 120 deg operating angle
- For enclosures SPACIAL S3CM width W 600 mm
- ECCN|PROP65|REACH|EAR99|WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
