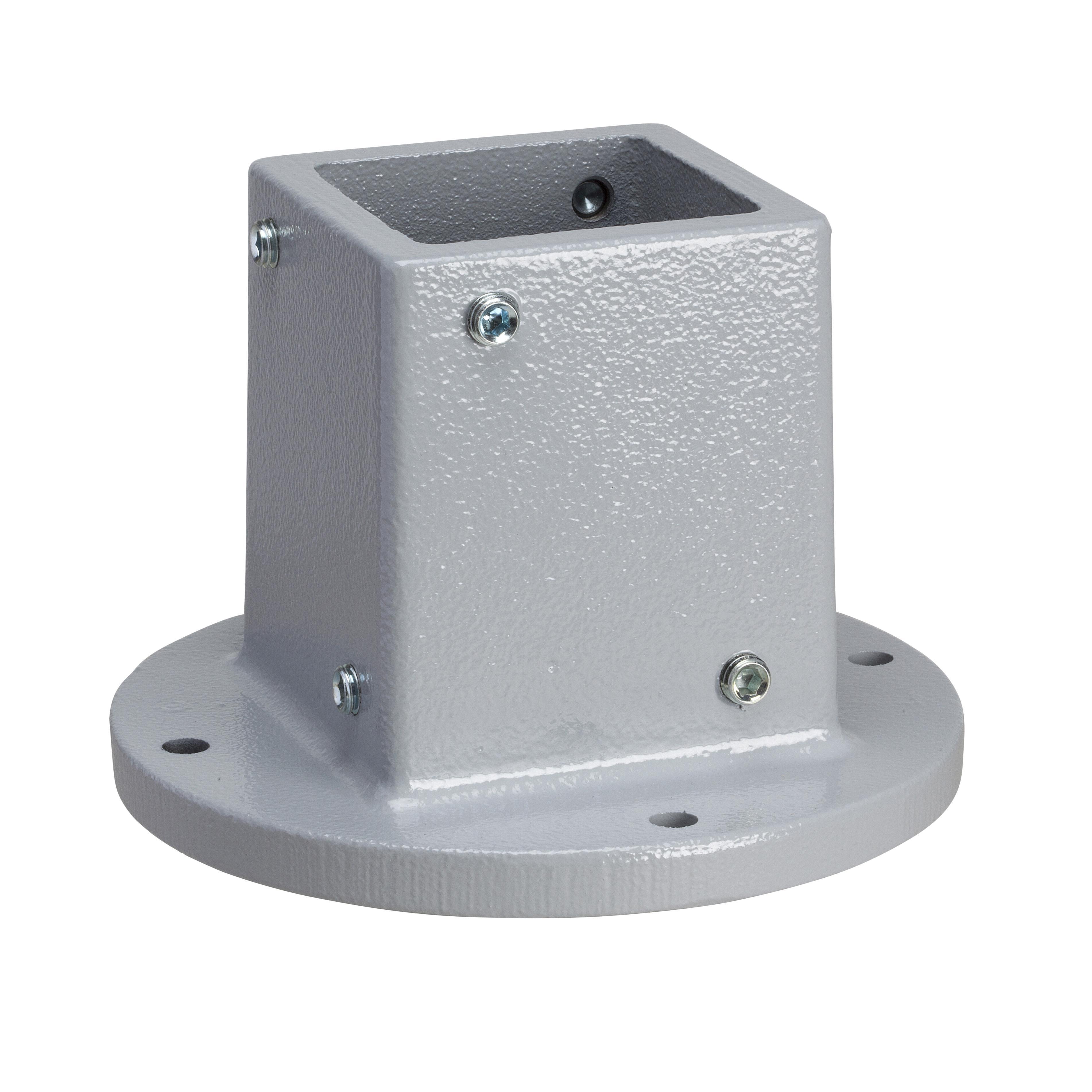

Schneider Electric NSYCMUMR80 Spacial Fixing On Support, moulded steel, Gray RAL 7040
Sku #60648021297
MFG #NSYCMUMR80
Attributes
| Type: | Fixing On Support |
| Suitable For Use With: | Spacial S3CM |
| Finish: | Epoxy-polyester powder |
| Series: | Spacial |
| Material: | moulded steel |
| Color: | Gray RAL 7040) |
- For SPACIAL S3CM HMI encl
- Our man-machine dialogue offer comprises :control enclosures,a keyboard enclosure,an arm with fixed or rotating joint system,a wide range of accessories
- Strong IK 10, steel body, top panel reinforced by plate, thickness 3 mm extruded aluminium frame
- Watertight IP 54, polyurethane seal
- A steel body, textured epoxy-polyester paint finish, colour grey RAL 7035, with rear door opening to 120 deg , closure by double-bar lock
- The top panel is reinforced (3 mm) and drilled 54 or 87 mm (according to reference) to enable suspended enclosure mounting. an aluminium front face (thickness 2.5mm), protected on both sides by plastic film, for mounting of dialogue elements and a trim frame comprising 4 extruded aluminium profiles
- Design of these profiles takes account of the functionalities of accessory mounting , the ergonomics of enclosure operation and the aesthetics of the total unit, textured epoxy-polyester powder paint finish, colour grey RAL 7040
- IP 54 degree of protection
- IK 10 external mechanical impact resistance
- Paint finish RAL 703
- With toxic heavy metal free
- Between tube and support mounting location
- By screw M12 - fixed base fixing mode
- 15.43 lb(US) (7 kg) permanent permissible load
- 7.91 in (201 mm) diameter
- ECCN|EAR99
