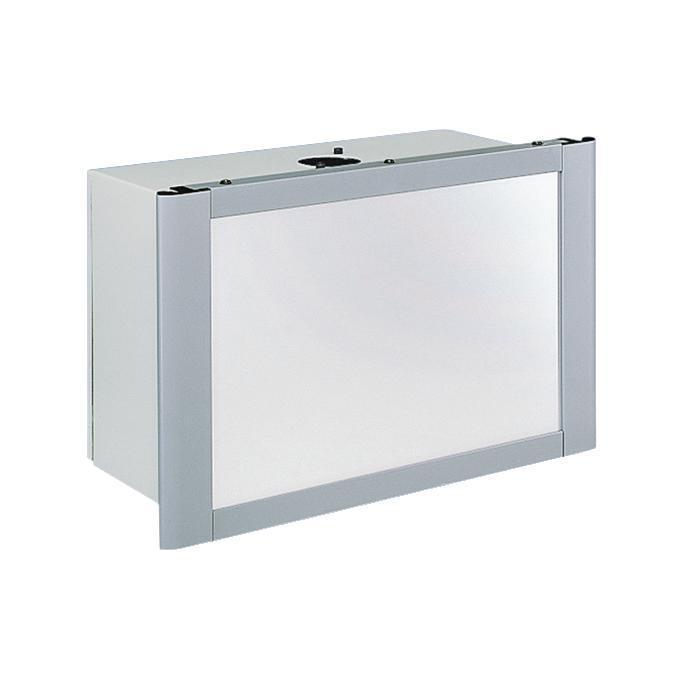

Schneider Electric NSYS3CM608030, 31.50 in w x 11.81 in d x 23.62 in h, Enclosure and front face steel/Trim frame aluminium
Sku #60648021288
MFG #NSYS3CM608030
Attributes
| Width: | 31.50 in |
| Height: | 23.62 in |
| Material: | Enclosure and front face steel/Trim frame aluminium |
| Depth: | 11.81 in |
| Lock: | 3 mm Double Bar Lock |
| Finish: | Epoxy-polyester powder |
- ECCN|EAR99
- Human-machine dialogue application
- Our man-machine dialogue offer comprises :control enclosures,a keyboard enclosure,an arm with fixed or rotating joint system,a wide range of accessories
- Strong IK 10, steel body, top panel reinforced by plate, thickness 3 mm extruded aluminium frame
- Watertight IP 54, polyurethane seal
- A steel body, textured epoxy-polyester paint finish, colour grey RAL 7035, with rear door opening to 120 deg , closure by double-bar lock
- The top panel is reinforced (3 mm) and drilled 54 or 87 mm (according to reference) to enable suspended enclosure mounting. an aluminium front face (thickness 2.5mm), protected on both sides by plastic film, for mounting of dialogue elements and a trim frame comprising 4 extruded aluminium profiles
- Design of these profiles takes account of the functionalities of accessory mounting , the ergonomics of enclosure operation and the aesthetics of the total unit, textured epoxy-polyester powder paint finish, colour grey RAL 7040
- IP 54 degree of protection
- IK 10 external mechanical impact resistance
- Paint finish RAL 703
- Single piece body body type
- Rear 1 number of doors
- Reversible 120 deg door opening side
- Without gland plate type of gland plate
