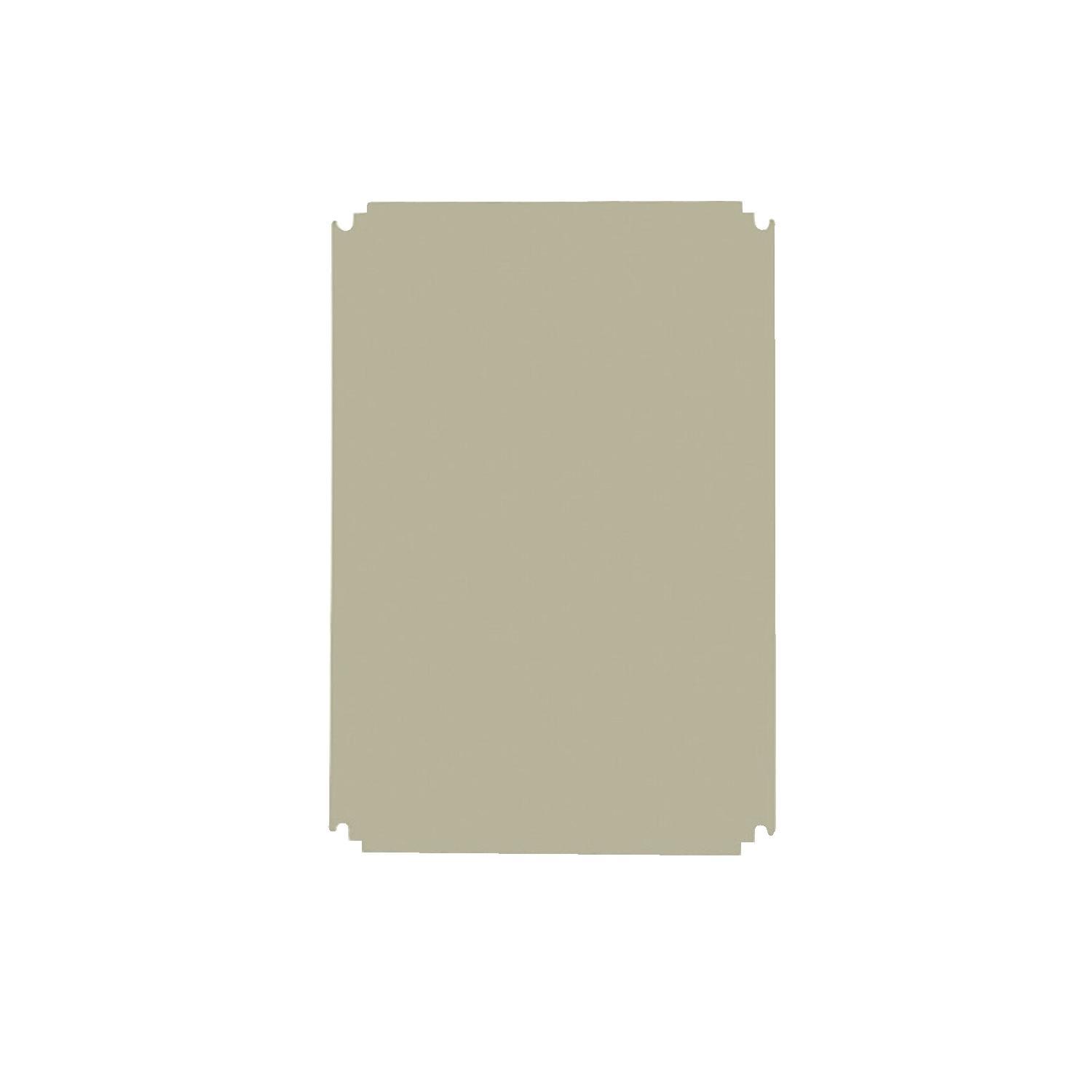

Schneider Electric NSYPMA107 Thalassa Insulating Mounting plate, polyester, Gray RAL 7035
Sku #60648019402
MFG #NSYPMA107
Attributes
| Type: | Insulating Mounting plate |
| Suitable For Use With: | Thalassa PLA |
| Color: | Gray RAL 7035) |
| Series: | Thalassa |
| Material: | Polyester |
| Dimensions: | 35.04 in H x 24.61 in W x 4.92 in D |
- Parts of the body, rear panels and doors are made from fiberglass reinforced polyester, molded by hot compression, RAL7032 colour
- Bosses for fixation points are molded
- Totally closed, IP65 totally closed enclosures
- IP54 open bottom and integrated plinth enclosures
- IP44 open upper part for ventilation enclosures
- IP44 open bottom and plinth, and open upper part enclosures for ventilation
- Accessory to upgrade IP44 to IP54
- 40 dimensions from 500x500x320mm up to 1500x1250x420mm
- 1 door, 500 and 750mm width, and 2 doors, 1000 and 1250mm width
- 2 doors enclosures constructed with reinforcement central part
- 3 types of panels or doors: plain, ribbed surface for anti-flyposting, glazed
- Lock or handle with locks, with 2 or 4 action points out of the protected volume
- Impact resistance: IK10 for plain and ribbed door version, IK08 for the glazed door
- Self- extinguishability: HB40 classified and 960o test withstanding
- IEC62208 enclosure standard
- Polyester plinth ZA 200 mm, stackable 2x200mm, for PLA enclosures, closed bottom versions
- Polyester plinth ZZ 200 mm and 500 mm for PLA enclosures, open bottom versions
- 330.69 lb(US) (150 kg) permanent permissible load
- Step slideBack inserts mounting location
- By screws M8 - on back inserts fixing mode
- For PLA enclosure H1000xW750mm Schneider Electric SQD NSYPMA107 Polyester insulating
- ECCN|REACH|EAR99
Schneider ElectricSchneider Electric NSYPMA107 Thalassa Insulating Mounting plate, polyester, Gray RAL 7035
SKU #60648019402
MFG #NSYPMA107
