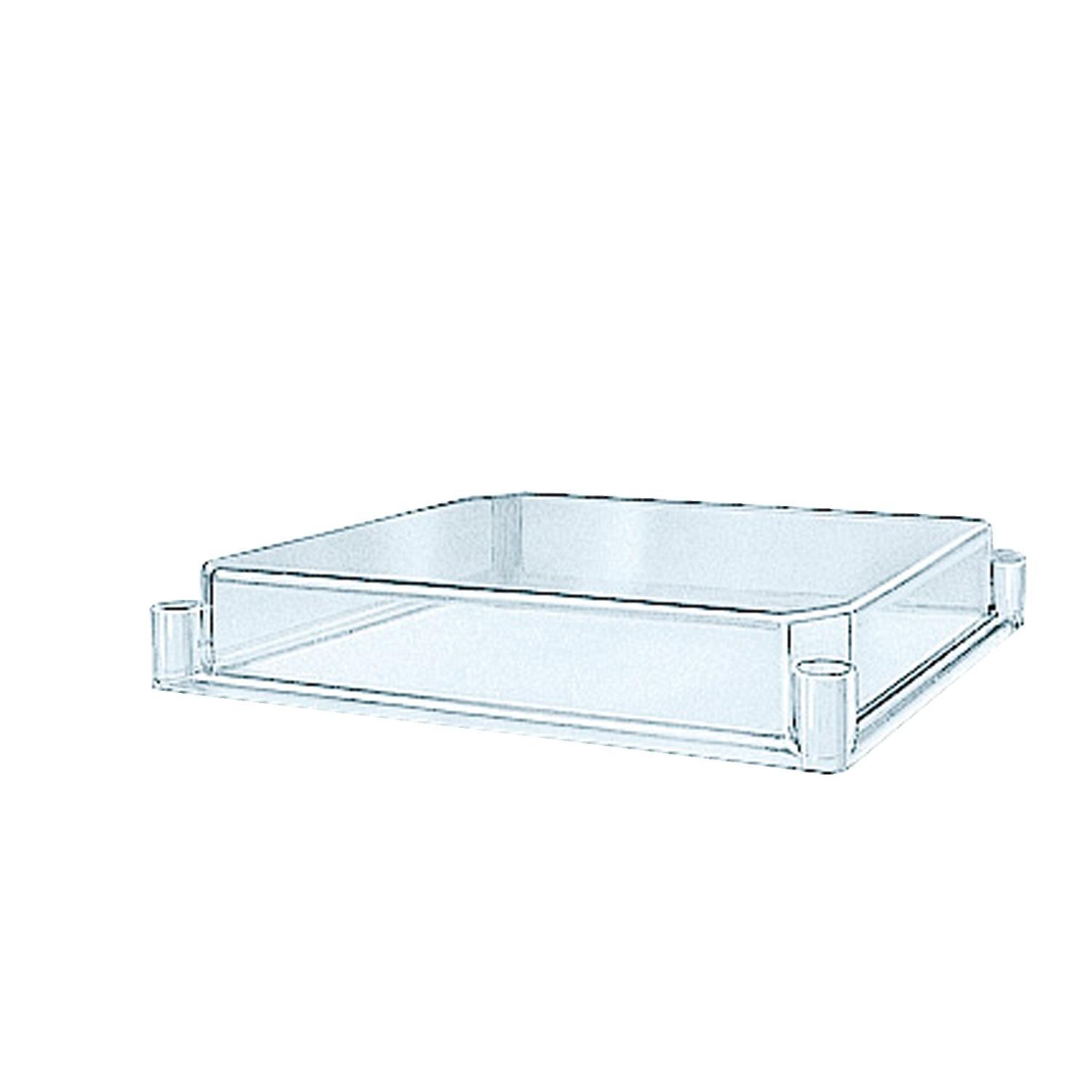

Schneider Electric NSYTPLS2727 Thalassa, 10.63 in w x 1.77 in d, for use with Thalassa PLS, polycarbonate
Sku #60648018969
MFG #NSYTPLS2727
Attributes
| Series: | Thalassa |
| Depth: | 1.77 in |
| Material: | Polycarbonate |
| Width: | 10.63 in |
| Suitable For Use With: | Thalassa PLS |
| Dimensions: | 10.63 in H x 10.63 in W x 1.77 in D |
- Body made of fiberglass reinforced polyester, molded by hot compression, RAL 7035 color, 135mm height
- Transparent polycarbonate, 45mm or 95mm height
- Opaque polycarbonate RAL7032, 45mm or 95mm height
- Polyester RAL7035, 45mm height
- 14 dimensions from 180x270x180mm up to 540x720x230mm
- Modular dimensions of sides: 180, 270, 360, 540 and 720mm
- Height and wide are indifferent
- Locking by 4, 6 or 8 screws, according to dimensions
- Mounting bosses already molded with inserts M6
- Modular distribution version (supplied with chassis)
- Total insulation for realization of Class II equipment
- Degree of protection IP65
- Impact resistance: IK09
- Self-extinguishability: 960oC test withstanding
- Certification of complying with IEC62208 enclosure standard
- By screws M6 - on back inserts fixing mode
- Multi-purpose
- ECCN|PROP65|REACH|EAR99|WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
