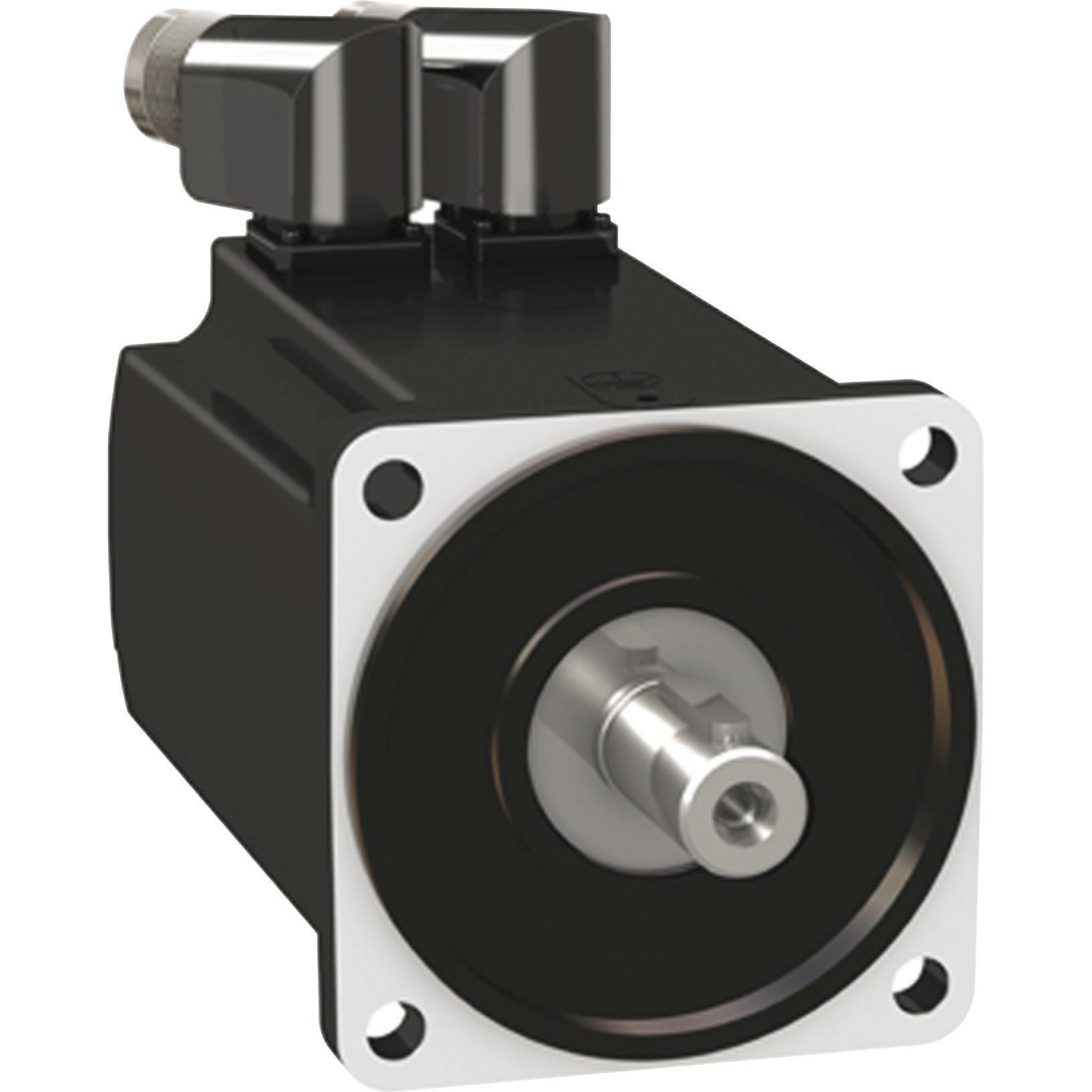

Schneider Electric BMH1001T06A2A BMH Series 1-Stack 10-Poles Smooth Shaft, 240 V, 15 A, 2000,3000 rpm speed, Flange mount
Sku #60648016080
MFG #BMH1001T06A2A
Attributes
| Type: | 1-Stack 10-Poles Smooth Shaft |
| Special Features: | 32768 Points/Turn |
| Amperage Rating: | 15 A |
| Series: | BMH Series |
| Voltage Rating: | 240 V |
| Speed: | 2000,3000 rpm |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- This saves on cabinet space and size, reduces the machine footprint and decreases costs
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- Without holding brake
- 700 W LXM32.D30M2 10 A, 115 V, single phase900 W LXM32.D18M2 6 A, 230 V, single phase nominal output power
- Without second shaft end second shaft
- Single turn SinCos Hiperface feedback type
- 3.94 in (100 mm) motor flange size
- 43.3 V/krpm 248 deg F (120 deg C) back emf constant
- 3.19 kg.cm2 rotor inertia
