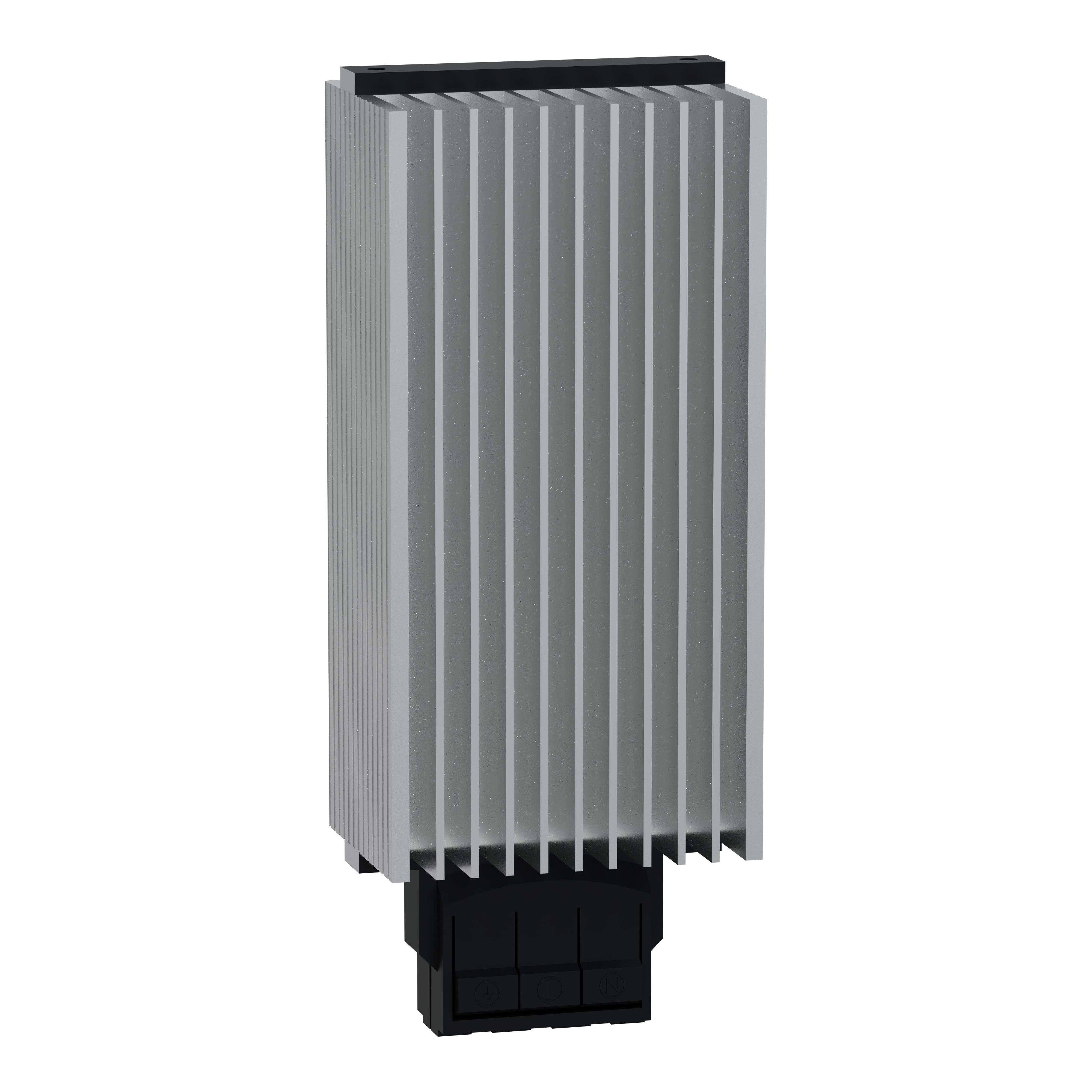

Schneider Electric NSYCR100WU1 Vertical Resistance Heater, 12 to 24 V DC, IP20 Enclosure
Sku #60648015218
MFG #NSYCR100WU1
Attributes
| Type: | Vertical |
| Temperature Rating: | -40 to 70 deg C |
| Material: | Aluminium |
| Voltage Rating: | 12 to 24 V DC |
| Enclosure Type: | IP20 |
| Country of Origin: | DE |
- WEEE|VDE|UL
- Extruded aluminum body
- Surface temperature limited to 75 C when the ambient temperature is -5 C
- Heaters equip with a power cable with a length of 500 mm with silicon insulation, with a connection terminal block
- The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure
- The enclosure must be sealed to prevent the entry of air from the outside
- An electrical protection device must be installed on the supply side of the unit
