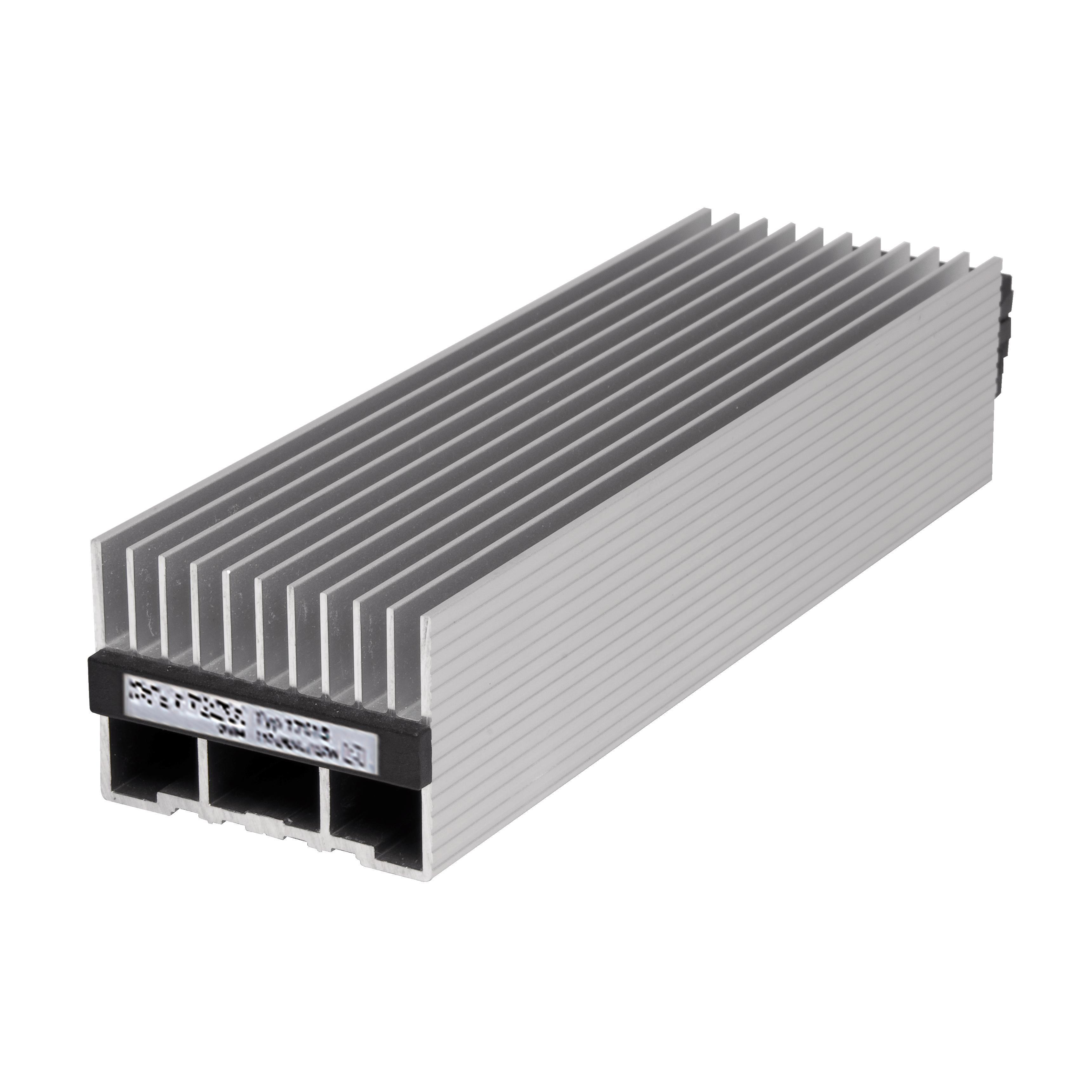

Schneider Electric Square D™ NSYCR20WU2 ClimaSys CR Vertical PTC Resistance Heater, 110 to 250 V AC, 20 W Power Rating, IP20 Enclosure
Sku #60648015213
MFG #NSYCR20WU2
Attributes
| Type: | Vertical |
| Voltage Rating: | 110 to 250 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | ClimaSys CR |
| Power Rating: | 20 W |
| Temperature Rating: | -40 to 70 deg C |
- Surface temperature limited to 75 C when the ambient temperature is -5 C
- Heaters equip with a power cable with a length of 500 mm with silicon insulation, with a connection terminal block
- The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure
- The enclosure must be sealed to prevent the entry of air from the outside
- An electrical protection device must be installed on the supply side of the unit
- ECCN: EAR99|UL Listed|VDE Certified|PROP65: This product can expose you to chemicals which are known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|Mercury-Free Compliant|WEEE Certified
