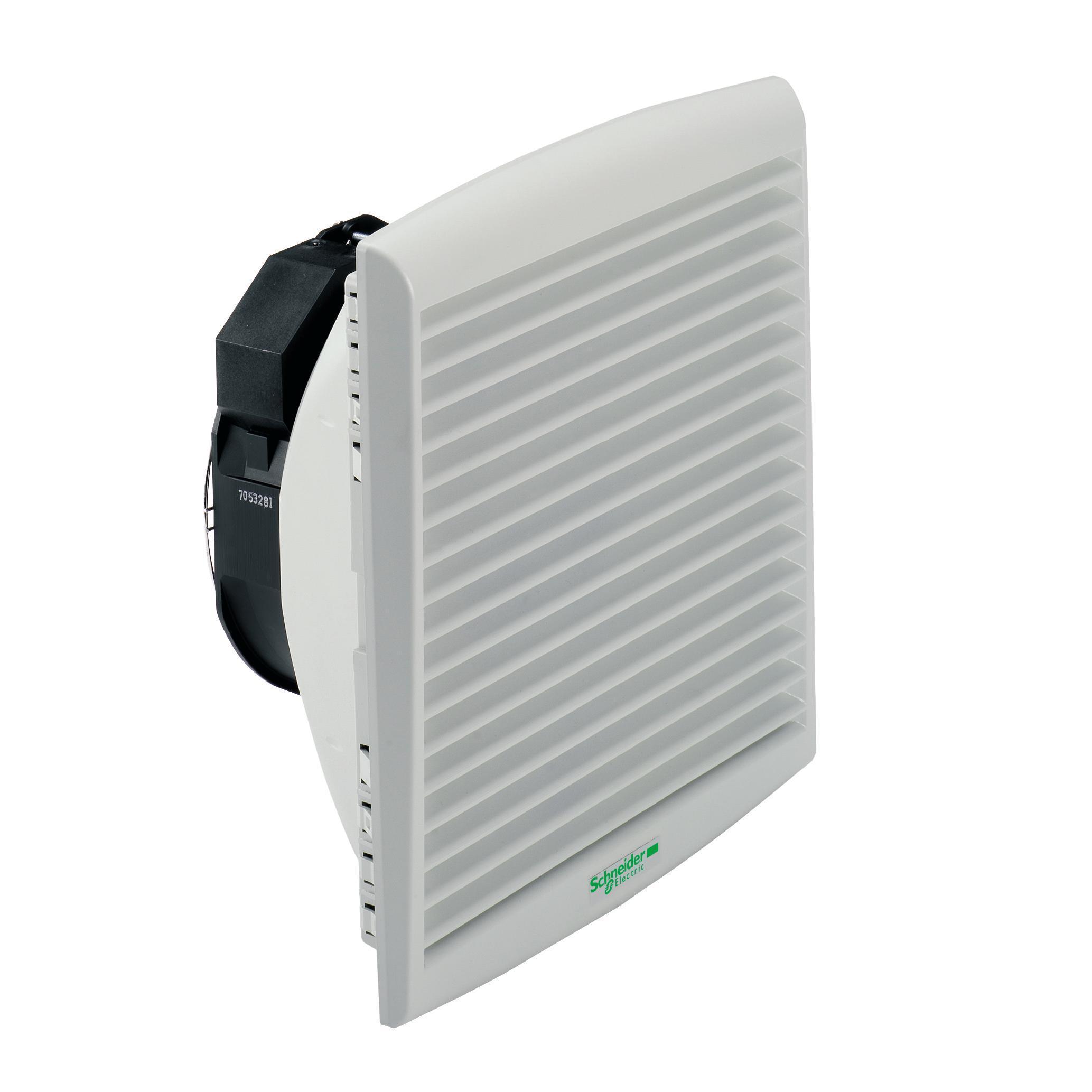

Schneider Electric NSYCVF300M48DPF NSY Fan, 25 to 60 V, 0.24 A, 11 W power rating, 69214.32 gph air flow, IP54 enclosure
Sku #60648015131
MFG #NSYCVF300M48DPF
Attributes
| Type: | Fan |
| Voltage Rating: | 25 to 60 V |
| Power Rating: | 11 W |
| Series: | NSY |
| Amperage Rating: | 0.24 A |
| Air Flow Rate: | 69214.32 gph |
- For ced ClimaSys forced vent, For ced vent, For ced
- The ambient temperature is lower than the desired temperature inside the enclosure
- A high protection rating is required: IP 54 or IP 55
- The surrounding environment is relatively clean, allowing air to enter the enclosure
- 42 possible combinations
- Colours: RAL 7035 as standard, with the option of changing to RAL 7032 (with replacement grille NSYCAG***LPC
- 38 to 850 m3/h
- According to 5 input voltages:AC: 400/440 V, 230 V, 115 V (50/60 Hz),DC: 48 V and 24 V
- Broad range of accessories (filters, IP 55 & EMC covers, anti-vandalism kit)
- Standard type of filter
- Free flow rate with standard filter 69214.32 Gal/hr(US) (262 m3/h) flow rate
- 48 V DC input voltage
- 11 W absorbed power
- 55 to 56 dB noise level < at
- Ball bearing type
- 223 x 223 mm cut-out dimensions
- 158 Pa flow rate 0 m3/h maximum pressure
- Surrounding environment must be relatively cleanFilter must be cleaned and replaced regularlyFlow rates depends on the work point, see ProClima softwareOutside temperature must be 5 deg C lower than inside temperatureOverfrequent filter replacement should be avoided condition of use
