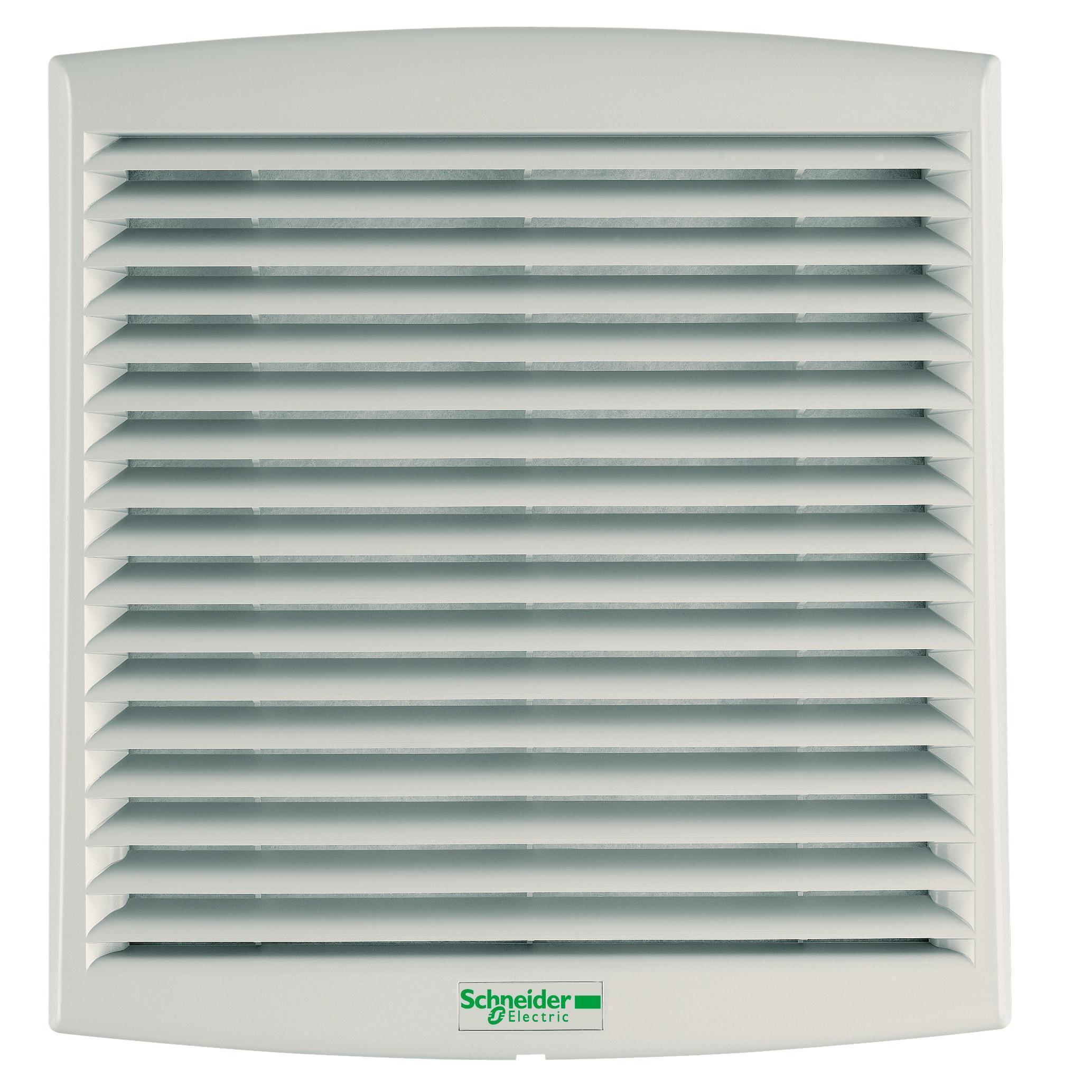

Schneider Electric NSYCVF38M48DPF NSY Fan, 36 to 56 V, 0.07 A, 3.6 W power rating, 11623.78 gph air flow, IP54 enclosure
Sku #60648015119
MFG #NSYCVF38M48DPF
Attributes
| Type: | Fan |
| Voltage Rating: | 36 to 56 V |
| Power Rating: | 3.6 W |
| Series: | NSY |
| Amperage Rating: | 0.07 A |
| Air Flow Rate: | 11623.78 gph |
- The ambient temperature is lower than the desired temperature inside the enclosure
- A high protection rating is required: IP 54 or IP 55
- The surrounding environment is relatively clean, allowing air to enter the enclosure
- 42 possible combinations
- Colours: RAL 7035 as standard, with the option of changing to RAL 7032 (with replacement grille NSYCAG***LPC
- 38 to 850 m3/h
- According to 5 input voltages:AC: 400/440 V, 230 V, 115 V (50/60 Hz),DC: 48 V and 24 V
- Broad range of accessories (filters, IP 55 & EMC covers, anti-vandalism kit)
- Standard type of filter
- Free flow rate with standard filter 11623.78 Gal/hr(US) (44 m3/h) flow rate
- 48 V DC input voltage
- 3.6 W absorbed power
- 40 to 41 dB noise level < at
- Ball bearing type
- 92 x 92 mm cut-out dimensions
- 29 Pa flow rate 0 m3/h maximum pressure
- Outside temperature must be 5 deg C lower than inside temperatureSurrounding environment must be relatively cleanOverfrequent filter replacement should be avoidedFlow rates depends on the work point, see ProClima softwareFilter must be cleaned and replaced regularly condition of use
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For ced ClimaSys forced vent, For ced vent, For ced
