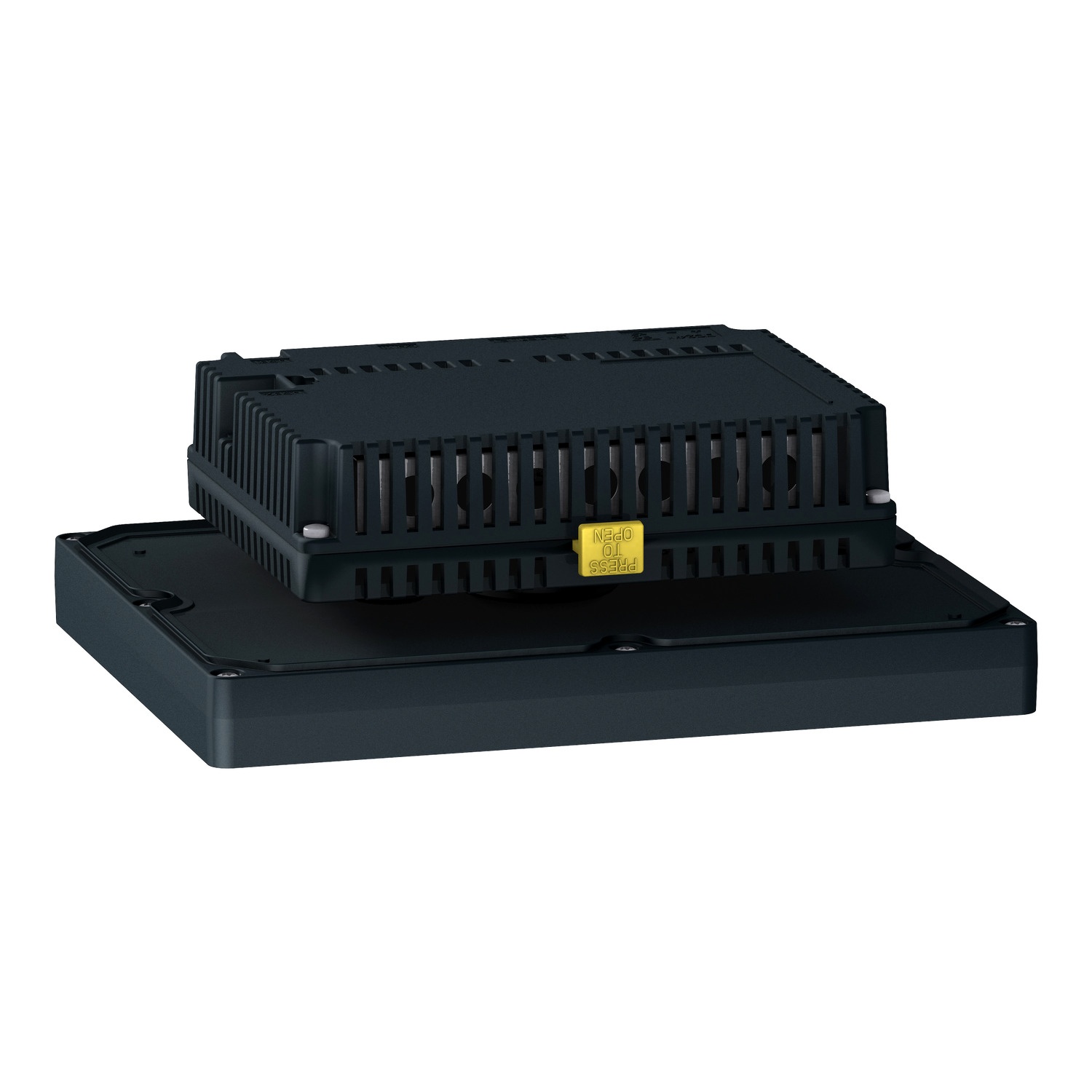

Schneider Electric Square D™ Magelis™ SCU HMISCU8A5 Small Touch HMI Controller Panel, 24 V DC, 30 A, 24 W, 5.7 in Backlit LED Color TFT LCD Display, 2 USB/COM1/CANopen
Sku #59586417557
MFG #HMISCU8A5
Attributes
| Type: | Small Touch |
| Display Type: | Backlit LED Color TFT LCD |
| Communication Ports: | 2 USB/COM1/CANopen |
| Power Source: | 24 V DC, 30 A, 24 W |
| Display Size: | 5.7 in |
| Display Resolution: | 320 x 240 pixel QVGA |
- Saves time, space and cost
- State-of-the-art display provides clear readability
- Rich communication capabilities
- Single software suite EcoStruxure Machine Expert
- Easy machine maintenance and upgrade
- Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2;electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2;susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3;electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4;surge immunity test - test level: 2 kV (po;+/- 3.5 mm 5-9 Hz) IEC 60068-2-6;1 gn 9-150 Hz) IEC 60068-2-6;147 m/s² 11 ms on DIN rail)IEC 60068-2-27;294 m/s² 6 ms on panel mounting)IEC 60068-2-27
